Category – Avionics – ADS-B Solutions
Interface Kit for Stratus Portables (Stratus 2)

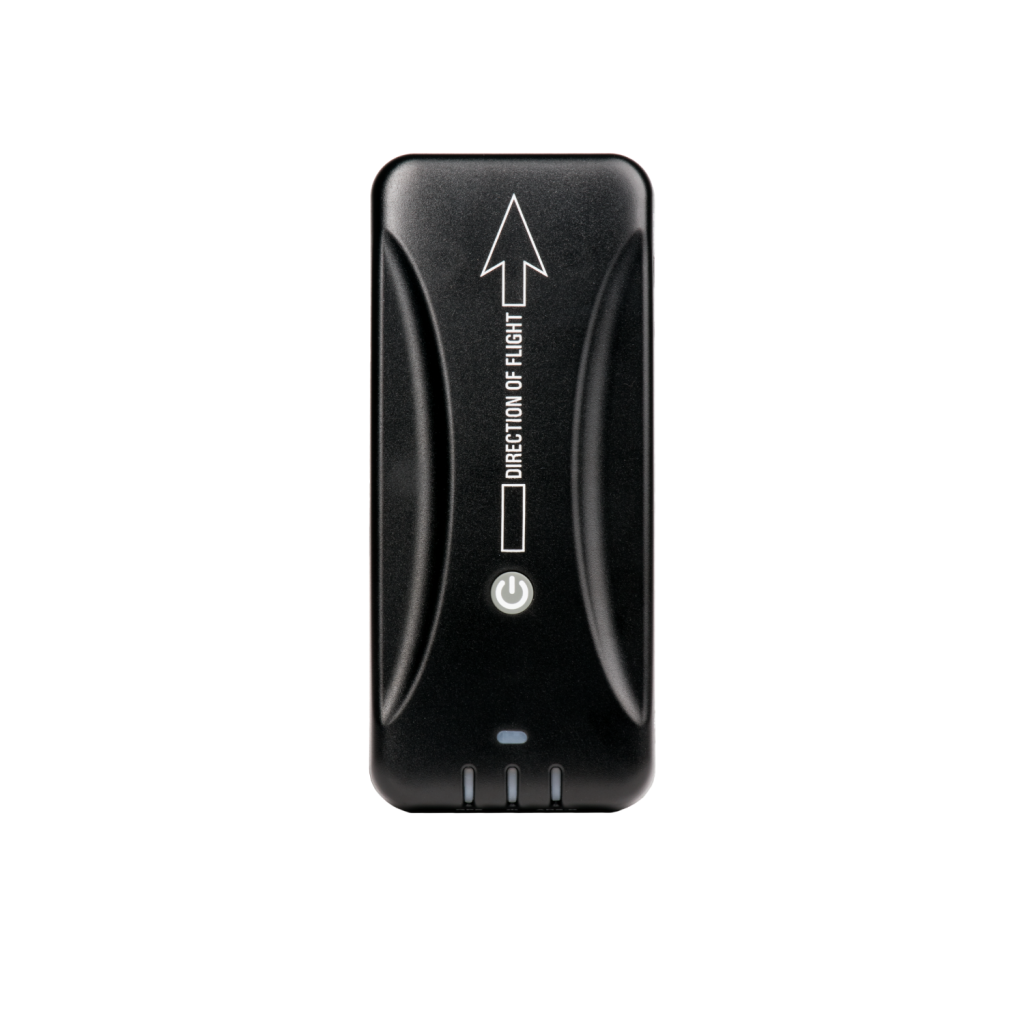

Stratus 3i (module only)
A&P Bundle – with Stratus ESG
A&P Bundle – with Stratus ES
A&P Bundle – with Stratus ESG-H
A&P Bundle – with Stratus ES-H
Stratus ES Transponder
Interface Kit for Stratus Portables (Stratus 1S, 2S, 3)
skyBeacon | ADS-B Out, WAAS GPS, LED Navigation Light
The skyBeacon is a revolutionary ADS-B Out solution that combines compliance, convenience, and cost-effectiveness into a single, easy-to-install device. Mounted directly on the wingtip, it integrates a 2020 compliant ADS-B 978MHz UAT transmitter and a high-integrity WAAS GPS within a LED position light. This all-in-one solution not only meets FAA mandates but also enhances visibility with its integrated LED lighting system. Designed to work seamlessly with existing Mode C transponders, skyBeacon uses patented power transcoder technology to utilize the aircraft’s electrical system for data communication, eliminating the need for extensive rewiring or additional antennas.
tailBeaconX TSO + AV-20-E Bundle
tailBeaconX + AV-20-E Bundle
All-in-One Nav Mode S / ADS-B OUT / 2" MFD EFIS
UAX-90107-01
New Part #
*supercedes UAX-90059-01
For Experimental Installation Only
The next era of global ADS-B. Compatible with space and ground-based ADS-B surveillance systems, tailBeaconX is a Mode S Extended Squitter ADS-B transponder and WAAS GPS integrated into an LED rear position light. With global compliance, tailBeaconX is the key to limitless destinations. Extend tailBeaconX and your panel’s functionality when you pair AV-20-E as tailBeaconX’s control head. AV-20-E also functions as a digital clock with 12 functions for limitless possibilities.
- Transponder Control
- Attitude Display
- Slip / Skid
- Probeless AOA
- G-Meter
- and more
AIR COM (AC‑1)
6W 8.33kHz/25kHz TSO VHF COMM Transceiver
Features
- World's smallest and lightest TSO aircraft radio
- Excellent sound and clarity
- 'Say Again' replay function
- Mounts remotely or directly on the ACD-57 Control Head.
- Interfaces to 3rd party systems for control (Flightdecks, Navigators, Apps)
Compatible with: AIR Avionics ACD-57, GARMIN® G3X touch®, Dynon® Skyview®.
AIR Control Display 57 (ACD-57)
2.25" Multi Function Display to control radios and transponders. TSO primary altimeter.
Features
- Perfectly readable TSO-certified multi-function display combining three functions into a compact unit.
- Controls AIR Avionics radios and transponders.
- Controls third-party radios and transponders (optional add-on function, subject to charge)
- Certified primary altimeter (optional add-on function, subject to charge)
- Modular system, directly mounts AIR Com and AIR Transponder units.
Compatible with: * VHF Aircraft Radios (AIR Avionics AC-1, TRIG TY-9x, BECKER 62 Series, TQ KRT-2 series, FUNKE ATR-833 series) * ADS-B Transponders (AIR Avionics AX-1, TRIG TT-2x, uAvionics Tailbeacon X) * Flight Decks (e.g. GARMIN® G3X Touch®, Dynon® Skyview®)
AIR Traffic (AT‑2)
Dual Band ADS-B IN System with comprehensive interfaces and traffic warning functions.
Features
- Dual Link ADS-B In. Receives ADS-B, ADS-R, TIS-B and FIS-B data. Detects any kind of ADS-B traffic (also SIL=0 "no integrity" signals). Detects Mode-S Transponder signals from non-ADS-B traffic
- Detects threats and gives warnings of conflicting traffic. Trajectory-based warning engine for minimum nuisance alerts. Audio out for synthetic voice warnings on the intercom.
- Works with all systems on the market that are capable of displaying traffic, including flight decks, navigators apps, and dedicated displays. Features eight independently configurable wireless and wirebound interfaces: RS-232, ARINC429, Wi-Fi®, Bluetooth®, Discrete I/O and Audio
Compatible with: Cockpit Displays (AIR Avionics ATD-57, ATD-80, ATD-11 and many more), Flight Decks (GARMIN® and Avidyne®, DYNON®, ADVANCED®, GRT® and many more), Portable Navigators (GARMIN®, Bendix King® and many more), Apps (e.g. ForeFlight® and many more).
