A200-PSF Fuel Pressure Sensor
The A200-PSF is a bulk micro-machined, gage type pressure sensor for use in both harsh and benign media with superior accuracy over an operating temperature of -40°C to 105°C. It has superb accuracy of +/- 0.5% full scale.
It contains a custom ASIC which provides signal conditioning for calibration and temperature compensation at the point of measurement. Each sensor is traceable to NIST calibration standards.
Power requirements are 5V / 10mA. Signal output is linear and varies from 0.5V (0 PSI) to 4.5V (100 PSI). Overpressure burst rating is 300 PSI.
The sensor has a 1/8" NPT threaded port for connection to the fuel pressure line.
Supplied with a 36" color coded cable.
When installed in accordance with the approved instructions and as part of a qualified instrument system, this pressure sensor is STC'd as a primary replacement.
Zulu Time Wallclock
Illyrian Smart Oximeter – With iOS App – White
Ceramic 37 (60ml) Basic Kit – Graphene Infused Ceramic Coating
TRIG TMA45 Superior Audio Panel
EKP V + Docking Station + Ultra EFIS KIT
Stratus ESGi Transponder 1090ES + ADS B OUT and IN
Aero Scrubber Pad (3 pads – 1 holder)
The Aero Scrubber is a soft, non-scratching, long-lasting, reusable scrubber pad. Use with Wash Wax ALL to help remove bugs from leading edges or use with Wash Wax ALL (Degreaser) or Belly Wash on tough cleaning jobs such as aircraft bellies, engine areas, wheels, and tires. TIP: Spray Wash Wax ALL on bugs and let soak for 10-15 min. then respray and wipe off. This will make bug removal super easy!!
Flight Bag PLC Lite
Stratus 4 ADSB-IN, AHRS, WX, Traffic
Every pilot needs this box in their flight bag or installed in their aircraft. It can save your life.
Plexus In Stock!
Now Shipping, with more than 100 units in stock!
AV-30C System
Certified primary replacement. Remove your vacuum system.

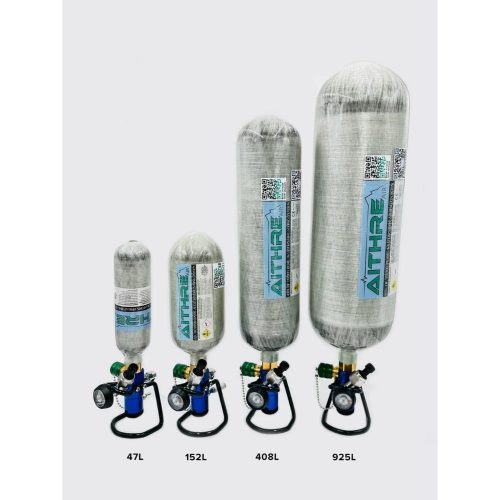

OXYGEN SYSTEM INSTALLS
