RG28B DC–DC Power Converter | 28 VDC to Regulated 19 VDC, 14.7A
The RG28B power converter converts a 28 VDC input to a regulated 19 VDC output voltage. This converter is capable of delivering 280 continuous watts at 14 VDC (20A output). The 14 VDC output is buck converted from the input voltage; and therefore, the output voltage is not isolated from the input. A state of art "synchronous current mode switching" topology with surface mount technology facilitates the power conversion process. Control circuit with a synchronous PWM controller provides for voltage regulation and current limit. Circuit protection includes an output short circuit current limit and shuts down when the voltage feedback loop is opened.
Call for Pricing
Contact Cost Aero at 855-500-3044 for pricing
CONVERTER/RS232 TO RS422/RS422 TO RS232 + True
Regulated DC-DC Power Converter | 28/14VDC, 280W
DC POWER CONVERTER/DC to regulated and controllable DC power converter, 75-120 watt. 300 ohm to 10K 1/2W potentiometer.
The LT-55A is a pulse width-modulated DC to DC converter that provides regulated high power DC. This converter transforms an unregulated 28 VDC to a regulated fixed or adjustable DC output via a remote control potentiometer.
The LT-55A is primarily designed to control the light intensity of incandescent bulbs in aircraft instrument lighting when requiring 0-15 amperes at 5 VDC output.
LT-48E Power Converter | 28VDC to 0-5VDC, 50W
DC POWER CONVERTER/DC to regulated and controllable DC power converter, 50-100 watt
The LT-52A is a pulse width-modulated DC to DC converter that provides regulated DC power. This converter transforms an unregulated 28 VDC to a regulated and adjustable DC voltage output via a remote control potentiometer.
The LT-52A is primarily designed to control the light intensity of incandescent bulbs in aircraft lighting. The LT-52Ais FAA TSO-C71 recognized for airborne applications.

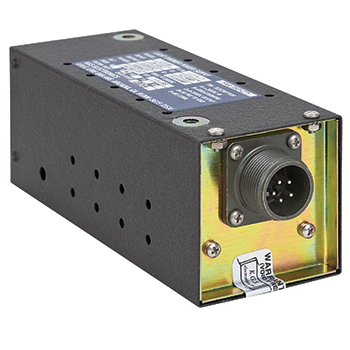

DC POWER CONVERTER/DC to regulated and volt controlled DC power converter, 50-100 watt.
The LT-53 is a pulse width-modulated DC to DC converters that provide regulated power. These converters transform an unregulated 28 VDC to a regulated and adjustable DC output via a remote control voltage; 0 to 5 VDC.
The LT-53 is used to control the light intensity of incandescent bulbs in aircraft instrument lighting when voltage control is required.
DC POWER CONVERTER/DC to regulated and volt controlled DC power converter, 50-100 watt. 28 Vdc to reg 0-28 Vdc, 3.6 ADC
The LT-103 is a pulse width-modulated DC to DC converters that provide regulated power. These converters transform an unregulated 28 VDC to a regulated and adjustable DC output via a remote control voltage; 0 to 28 VDC.
The LT-103 is used to control the light intensity of incandescent bulbs in aircraft instrument lighting when voltage control is required.

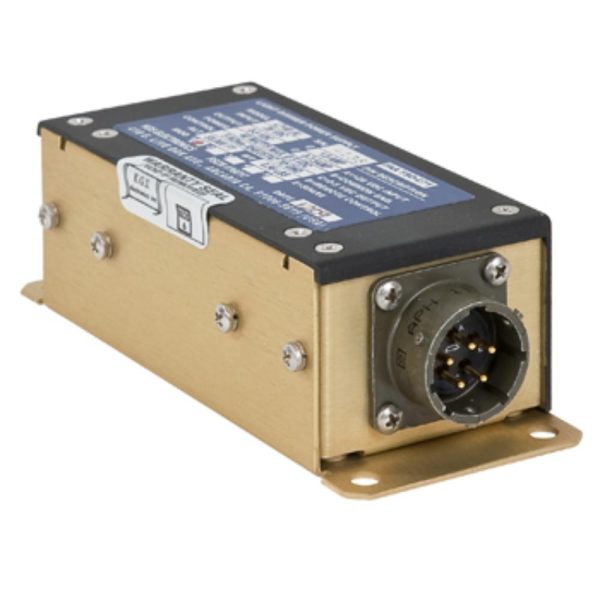

DC POWER CONVERTER/DC to regulated and controllable DC power converter, 37.5 watt. Input: 28 VDC, Output: 37.5 W, 0-5 VDC. TSO’d
The LT-48A is a pulse width-modulated DC to DC converter that provides regulated output power. This converter transforms an unregulated 28 VDC to regulated output power. The output voltage is adjusted via a remote control rheostat 5K ohm 1/2 W to ground. Fixed output and voltage control models are also available.
