DM C70-1/A VHF Broadband Antenna | 360/720 Channel, 15.0in tall
The C70 series VHF communications antennas are designed for top or bottom installations on high-performance, single or twin, and turbo engine for fixed and rotary wing aircraft. The C70 series antennas offer mechanical strength and high-electrical efficiency to provide reliability at full 360/720 channel transceiver operations. Its lightweight profile is unobtrusive, resistant to icing, and offers a low drag profile.
CI 292-1 VHF Whip Antenna | 118-137 MHz, BNC
The CI 292-1 is specifically designed to be mount on top of the aircraft while providing excellent omni-directional coverage for all VHF communication frequencies. The CI 292-1 features a straight, tapered stainless steel radiator. This antenna has been updated to meet RTCA DO-160D environmental requirements while offering frequencies from 118 MHz to 137 MHz associated with DO 186 MOPS.

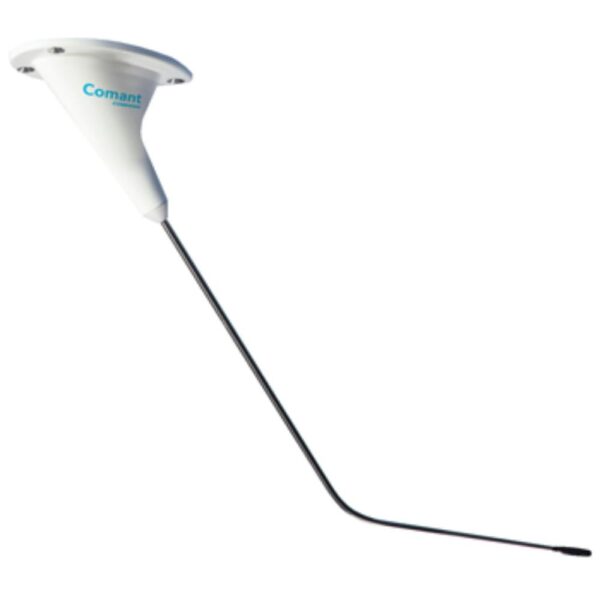

CI 292-2 VHF Bent Whip Antenna | 118-137 MHz, BNC, 50W
The CI 292-2 is specifically designed to be mounted on the bottom of helicopters or underneath fixed-wing aircraft while providing excellent omni-directional coverage for all VHF communication frequencies. The CI 292-2 features a stainless steel, bent whip radiator. This antenna has been updated to meet RTCA DO-160D environmental requirements while offering frequencies from 118 MHz to 137 MHz associated with DO 186 MOPS.

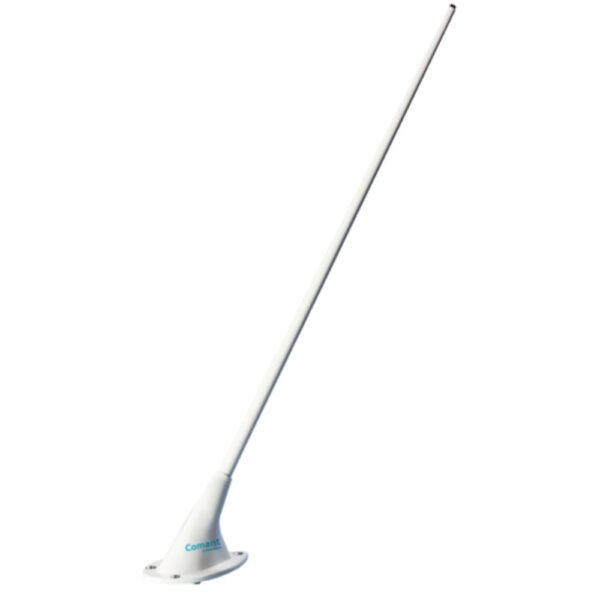

CI 291 VHF ROD ANTENNA/BNC Female Connector, 118-137 MHz, 50 Ohms, 50 Watts, 3 Hole Mount, Airspeed 250 Knots & a White Finish

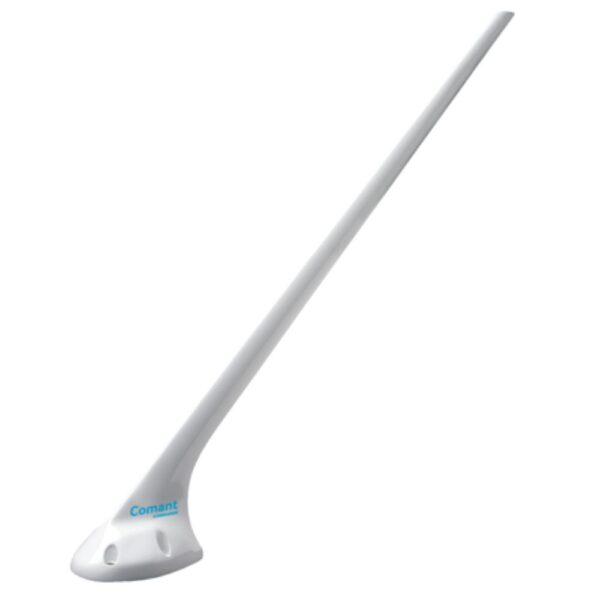

CI 248-5 VHF Communications Blade Antenna | 118-137MHz, BNC
The CI 248-5 is designed for the Cessna 182 and 182T aircraft and offers lower drag. It is designed for single engine and helicopter application and meets the rigorous requirements of RTCA DO-160D. The CI 248-5 can be install in close proximity to GPS antennas with its builtin harmonic suppression filter.

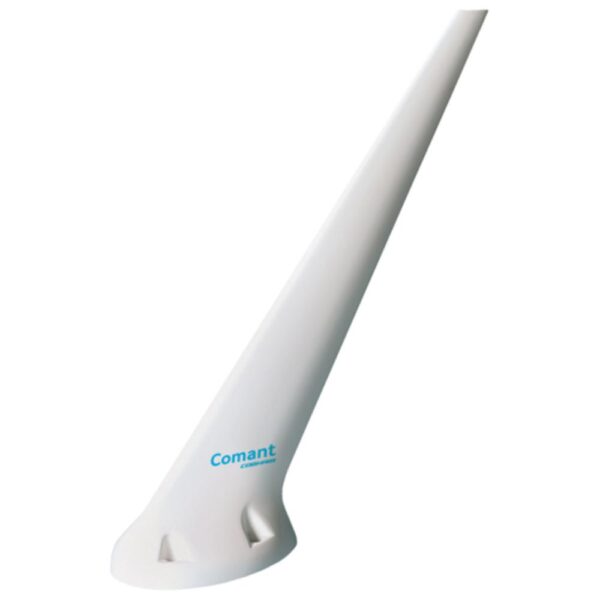

CI 268-60 VHF BLADE ANTENNA/BNC Female Connector, 4 Hole Mount & a White Finish
The CI 268-60 ComDat VHF antenna uses the same radome as other multi-function ComDat antennas from Cobham. It has a super tough, nickel-plated aluminum base plate with integral Nitrile ‘O’ ring that can be used in pressurized applications. The CI-268-60 shares the same footprint and offset connector location as the popular CI-238. The unit also features a unique built-in notch filter that allows installation in close proximity to GPS antennas without cosight interference.
CI 268-5 ComDat Blade Antenna | VHF, 118-137MHz, BNC
The CI 268-5 ComDat VHF antenna uses the same radome as other multi-function ComDat antennas from Cobham. It has a super tough, nickle-plated aluminum base plate with integral Nitrile ‘O’ ring that can be used in pressurized applications. The CI 268-5 features a unique built-in notch filter that allows installation in close proximity to GPS antennas without co-sight interference.
CI-119 VHF Communications Antenna | BNC
The CI 119 is a high-speed blade antenna designed for a large single- or twin-engine aircraft. The antenna assemble is enclosed in aerodynamically shaped, injection molded polyester glass shell with internal components foamed in place mechanical integrity. Featuring reduced height for mounting on top or bottom of aircraft.

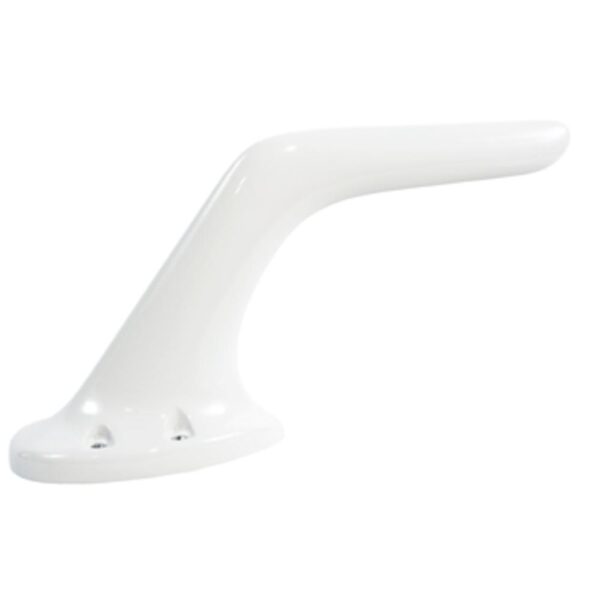

CI 211-16 VHF BLADE ANTENNA/BNC Connector, 118-153 MHz, 50 Ohms, 30 Watts, Airspeed 573 Knots
The CI 211series antenna are high speed bent blade antennas designed as a low profile, top or bottom mount for large twins and medium jet aircraft. Skydrol and rain erosion resistant. The CI 211-1 & CI 211-16 have an extended frequency band (118 MHz to 154 MHz). The CI 211-L and CI 211-1L are equipped with leading edge protection.

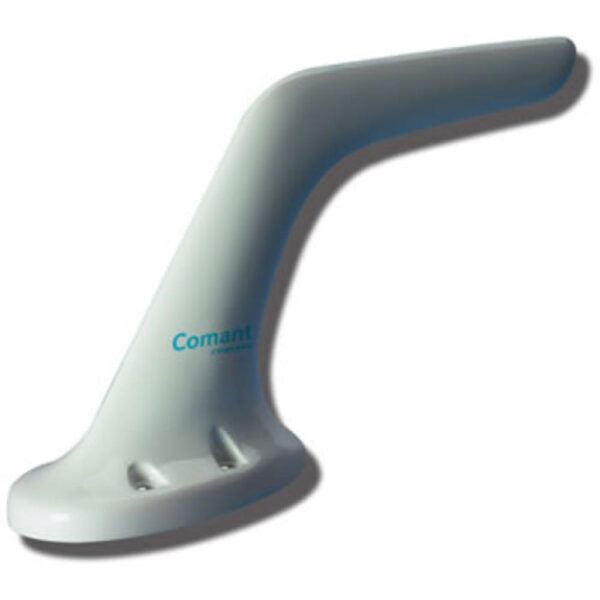

CI 211-1-L VHF BLADE ANTENNA/BNC Female Connector, 118-153 MHz, 50 Ohms, 30 Watts, With Leading Edge Protection, Airspeed 573 Knots
The CI 211series antenna are high speed bent blade antennas designed as a low profile, top or bottom mount for large twins and medium jet aircraft. Skydrol and rain erosion resistant. The CI 211-1 & CI 211-16 have an extended frequency band (118 MHz to 154 MHz). The CI 211-L and CI 211-1L are equipped with leading edge protection.
CI 211 VHF BLADE ANTENNA/BNC Female Connector, 118-137 MHz, 50 Ohms, 30 Watts, Airspeed 573 Knots, Includes Gasket C21104, 6 Hole Mount & a White Finish
The CI 211series antenna are high speed bent blade antennas designed as a low profile, top or bottom mount for large twins and medium jet aircraft. Skydrol and rain erosion resistant. The CI 211-1 & CI 211-16 have an extended frequency band (118 MHz to 154 MHz). The CI 211-L and CI 211-1L are equipped with leading edge protection.
CI 138 VHF BLADE ANTENNA/118-137 MHz, 50 Ohms, 25 Watts, Airspeed 350 Knots
The CI 138 is a high-speed blade antenna designed for large single- and twin-engine aircraft. The antenna assembly is enclosed in an aerodynamically shaped, injection molded polyester glass shell with internal components formed in place for mechanical integrity. Featuring for mounting on top or bottom of aircraft. The mounting hole pattern and RF connector location are compatible with Beechcraft. The RF connector is offset from the centerline of the antenna.
