20-41 Series Active GPS Antenna | L1 & L2 Bands
The 20-41 Series of active GPS (Global Positioning Satellite Systems) antennas, with integrated Antenna Electronics (AE), are designed to operate in the GPS L1 and L2 bands. The antenna element operates with nominal hemispherical coverage to allow reception of signals from a number of satellites. It consists of a dual micro strip stacked patch radiating element fed by a 90-degree hybrid arrangement giving Right Hand Circular Polarization (RHCP) reception, excellent symmetry and cross-polar performance across the whole bandwidth.

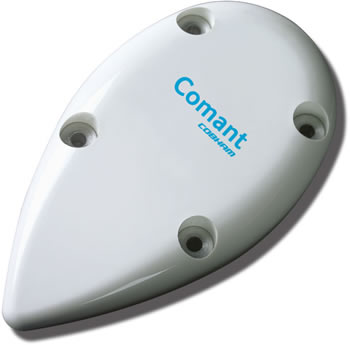

CI 420-16 ComDat XM Antenna | 2332.5-2345.0 MHz 26-30 dB, TNC

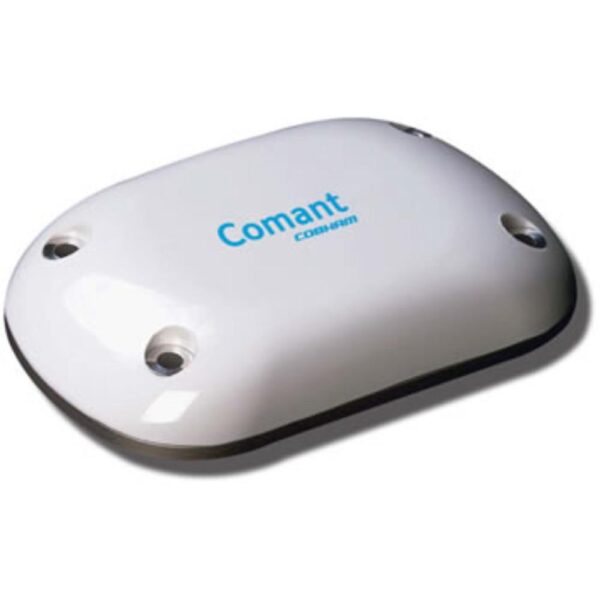

CI 401-460 ComDat GPS/XM Antenna | 1575.42 MHz 26.5-31.5 dB, TNC
The CI 401-460 is a multifunction GPS and XM Weather antenna designed to be compatible with 26.5 dB gain panel mount GPS receivers. This antenna will match the popular ARINC 743A footprint found on many turbocraft and business jets. The CI 401-460 is certified to FAA TSO C144 for GPS and GPS WAAS class Gamma 1 equipment and not compliant for GPS WAAS class Gamma 2 & 3 applications.
- The CI 401-406 is a replacement for the CI 401-420

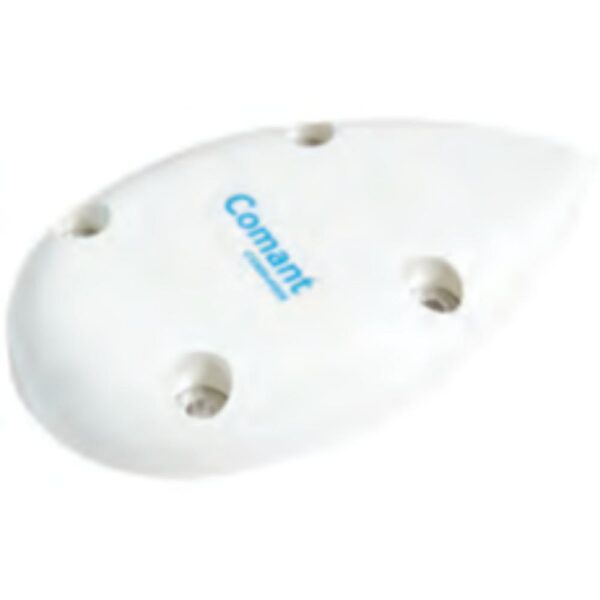

CI 420-420 GPS/XM / 1575.32 MHZ & 2332.5-2345 MHZ
The CI 420-420 is a multifunction GPS and XM Weather antenna designed to be compatible with 26.5 dB gain panel mount GPS receivers. This antenna will match the popular tear-drop footprint found on many general aviation aircraft and business jets. The CI 420-420 is certified for FAA TSO-C144 for GPS and GPS

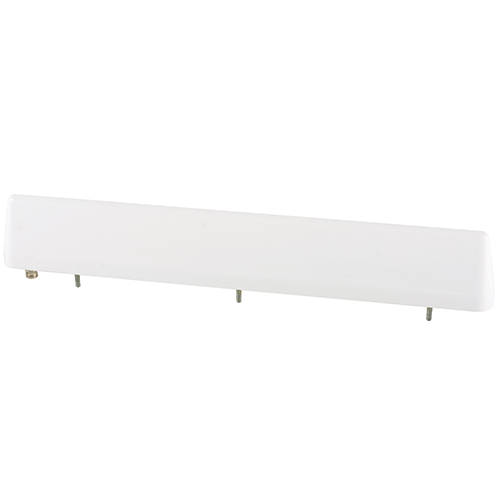

DM N43 Airborne Marker Beacon Antenna | 74.75–75.25MHz, BNCf Connector, White
MARKER BEACON ANTENNA/Flush mount, OEM on Dassault
The CI 165-1 is a lightweight, flush mount antenna that provides dual marker beacon signal outputs at the antenna to eliminate the need for a separate marker beacon splitter. Housed in an aluminum cover with a glass laminate cover, internal components are potted in place insuring mechanical integrity. The CI 165 is design for flat surface mounting on most aircraft including business jets.
DMNI29-14 L-Band Antenna | 849-1220 MHz, Blade, N Connector, White
NI50-2-2 DME/ATC L-Band Antenna | 960MHz – 1,220MHz, Type C Male Connector, Gloss White
The NI50 Series are low-profile, all-metal, L-band blade antennas built for mechanical strength and reliability for business, commercial, and military aircraft. The design of these antennas provide extremely high, side load strength, sealed construction against the intrusion of moisture, and lightening protection to prevent damage to electronic equipment.
DMNI50-2-1 DME/ATC L-Band Antenna | 960MHz – 1,220MHz, 4-hole, Type C Male Connector, Orange
The NI50 Series are low-profile, all-metal, L-band blade antennas built for mechanical strength and reliability for business, commercial, and military aircraft. The design of these antennas provide extremely high, side load strength, sealed construction against the intrusion of moisture, and lightening protection to prevent damage to electronic equipment.
N42-1 TOWEL BAR/VOR/LOC/GS – SINGLE OUTPUT/ 108-118 MHZ & 329-335 MHZ
The N42-1 is a tail-mounted antenna for use with VOR/LOC/GS receivers. It has been specially designed to provide the outstanding electrical performance of a balanced, center-fed loop at minimum cost. The input balun transformer is permanently sealed inside the center housing. Output cables extend from this transformer, through each side bar, to the feed points at the bulge on each element. This unusual configuration permits reliable, economical installation on aircraft that cruise at speeds up to 230 mph. When properly installed, the antenna receives the horizontally polarized VOR and localizer signals with uniform high sensitivity from all directions around the aircraft over the full VOR/Localizer Band. Because of the inherent characteristics of all balanced loop-type antennas, vertically polarized, error-producing signals are rejected. The antenna also has excellent forward reception over the glide slope band (329 MHz to 335 MHz) and can be used for this function by adding a DMH22-1 coupler to the system.

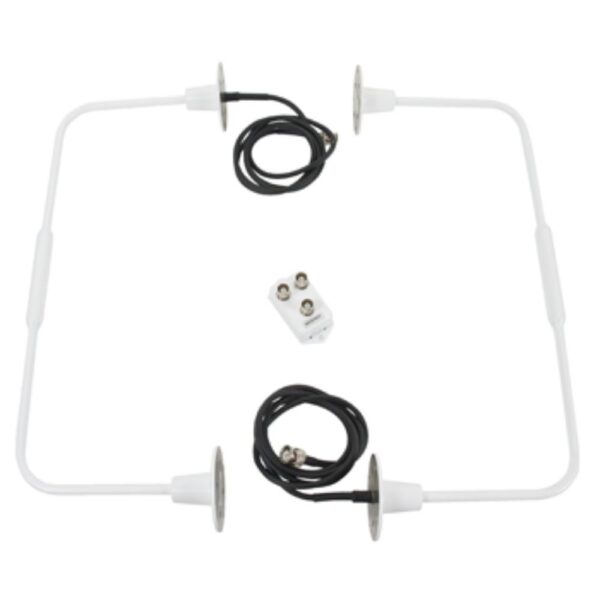

DM N48-3 VOR/LOC Balanced Loop Antenna | 108MHz–118MHz, BNC Male Connector, 4-Hole Mount (each side)
The N48 series is a balanced loop design assures an omni-directional radiation pattern at the horizon to obtain the maximum signal for standard VOR and area navigation systems installed in lightweight aircraft, medium twins, and helicopters operating up to 250 mph.
The DM 48-3 antenna utilizes a phasing coupler which enables ease of installation in an access panel is not available or if the vertical stabilizer is too narrow at the point of installation it makes is necessary to install the antenna with both ends cable leads forward or aft.
