Antennas

The TA50 Compact GPS Antenna is perfect for gliders and light sport aircraft with limited space and mounting options. This GPS antenna is compact and easy to stow, and it is designed to provide trouble-free operation when used with a TN72 GPS position source. Adding the TA50 to a TN72 is a cost-effective way to make a Trig Mode S transponder into an ADS-B Out solution for improved visibility and safety. This TA50 compact antenna has an SMA connector and a three-meter length. *Transponder and TN72 GPS sold separately

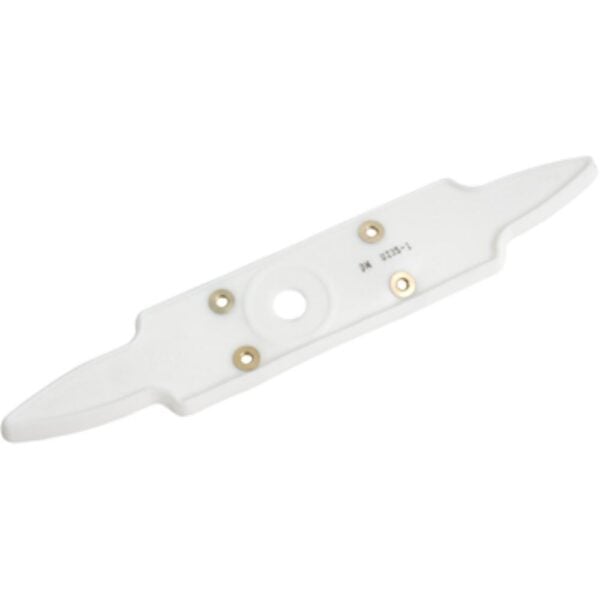

Antenna gasket for the DM N4-17 VOR/LOC/Glide slope antenna.

Replacement balun transmission line for use with the RAMI AV-12 antenna.

The ASPC-201L is a field-tunable, broadband vehicle antenna with a snap-in mount for fast, permanent installation in a 3/8-inch hole without the need for soldering. The whip is fastened using a set screw adapter and can be removed easily for fine tuning or replacement.

• Comes with 17-foot RG58U cable and UHF male connector

The 104-12 transponder antenna is a mono-pole antenna that has a top loaded sphere which creates a factor of reliability and safety for a shorter antenna. This antenna offers a voltage standing wave ratio of 1.2:1 at 1,090 MHz and less than 2:1 at 1,030 MHz when connected with a 50Ω coaxial transmission line. The 104 series antennas feature an omni-directional, vertical-polarize radiation pattern when mounted to the underside of the aircraft.

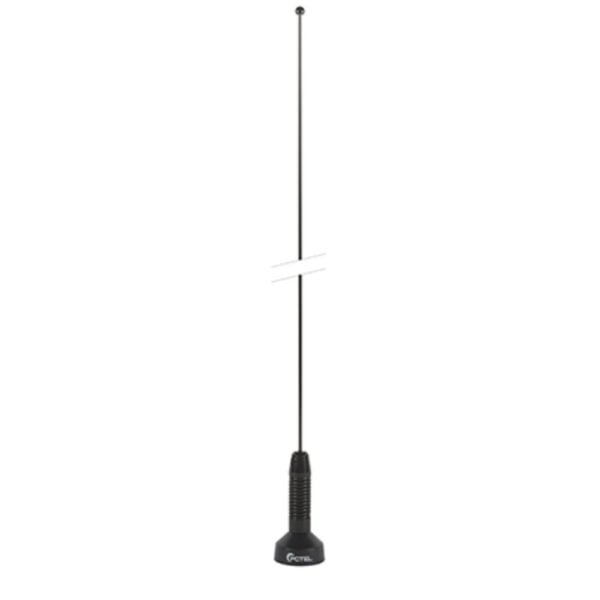

The BMAXMFTS is a field tunable, 1/4-wave antenna that is designed with a rugged molded-polymer base for durability. It operates on frequencies of 118 MHz to 940 MHz.
