DANIELS CRIMP TOOL/M22520/7-01. Dies sold separately
Qualified to MIL-DTL-22520/7, the DMC MH860 is a recent addition to the military specification. It was developed to meet the demonstrated need for supporting the majority of electrical systems with one versatile crimp tool frame. The MH860 accepts the entire middle wire range of 16 through 28 AWG, with positioners which adapt it to virtually all applications consistent with others in the MIL-DTL-22520 family.
Die Set for HX4
The DMC HX4 Crimp tool features a system of interchangeable dies which eliminate the need of separate fixed die crimp tools for each and every different application. Many maintenance and manufacturing concerns have standardized on this model, thus eliminating the cost associated with maintainaing and calibrating bulky inventories of single purpose tools.
M22520/5-01 CRIMP TOOL
The DMC HX4 Crimp tool features a system of interchangeable dies which eliminate the need of separate fixed die crimp tools for each and every different application. Many maintenance and manufacturing concerns have standardized on this model, thus eliminating the cost associated with maintainaing and calibrating bulky inventories of single purpose tools.

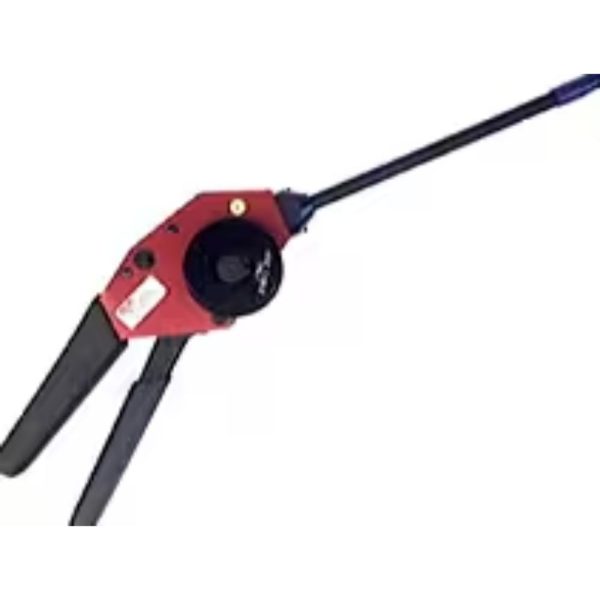

Adjustable Safe-T-Cable Application Hand Tool | 7in Nose, 0.032 Safe-T-Cable
Adjustable Safe-T-Cable Application Hand Tool | 3in Nose, 0.022 Safe-T-Cable
These Safe-T-Cable application tools with adjustable tension provide the necessary control over cable tension where repeatable and reliable results are required during Safe-T-Cable installation procedures. A rotary knob offers quick and easy cable tension adjustment to remove the guesswork when installing several Safe-T-Cables. Replaceable nose tips of various lengths are available.
This Safe-T-Cable applications tool has a three-inch nose and configured for 0.022 in Safe-T-Cable.

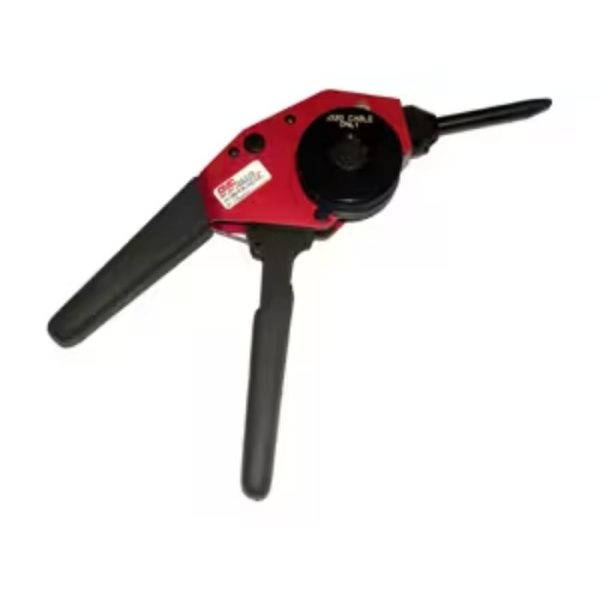

Rotary Safe-T-Cable Application Tool | 3in Nose, 0.032
The SCTR tool series features a rotary tension mechanism which can be adjusted to precise cable tension requirements. This necessary control feature is very popular with users. The tension will repeat at the setting which has been selected for reliable Safe-T-Cable® installations. Like all DMC Safe-T-Cable tools, this tool series features replaceable noses of various lengths.
Version SCTR323 has a 3 inch nose compatible with 0.032 Safe-T-Cable.
0450 Protector Mobile Tool Chest | Black, Includes 4 shallow & 2 deep drawers
XP-65 LED Portable Inspection Light | Corded
Coaxial Crimp Tool Kit | Compatible with RG6, RG8, RG11, RG58, RG59, RG174, RG179, RG213, RG223,
Circular Connector Adapter Kit | Plug Sizes 8–28
This tool kit contains all of the necessary tools for repairing electrical connectors and wiring systems for the MBB BO-105 & BK-117 helicopters. The DMC850 kit contains the tooling to connector, contact and terminal cross reference information to indicate the particular tool for a specific connector, contact, or terminal. This kit also contains an illustrated operating instructions for the required tooling.
