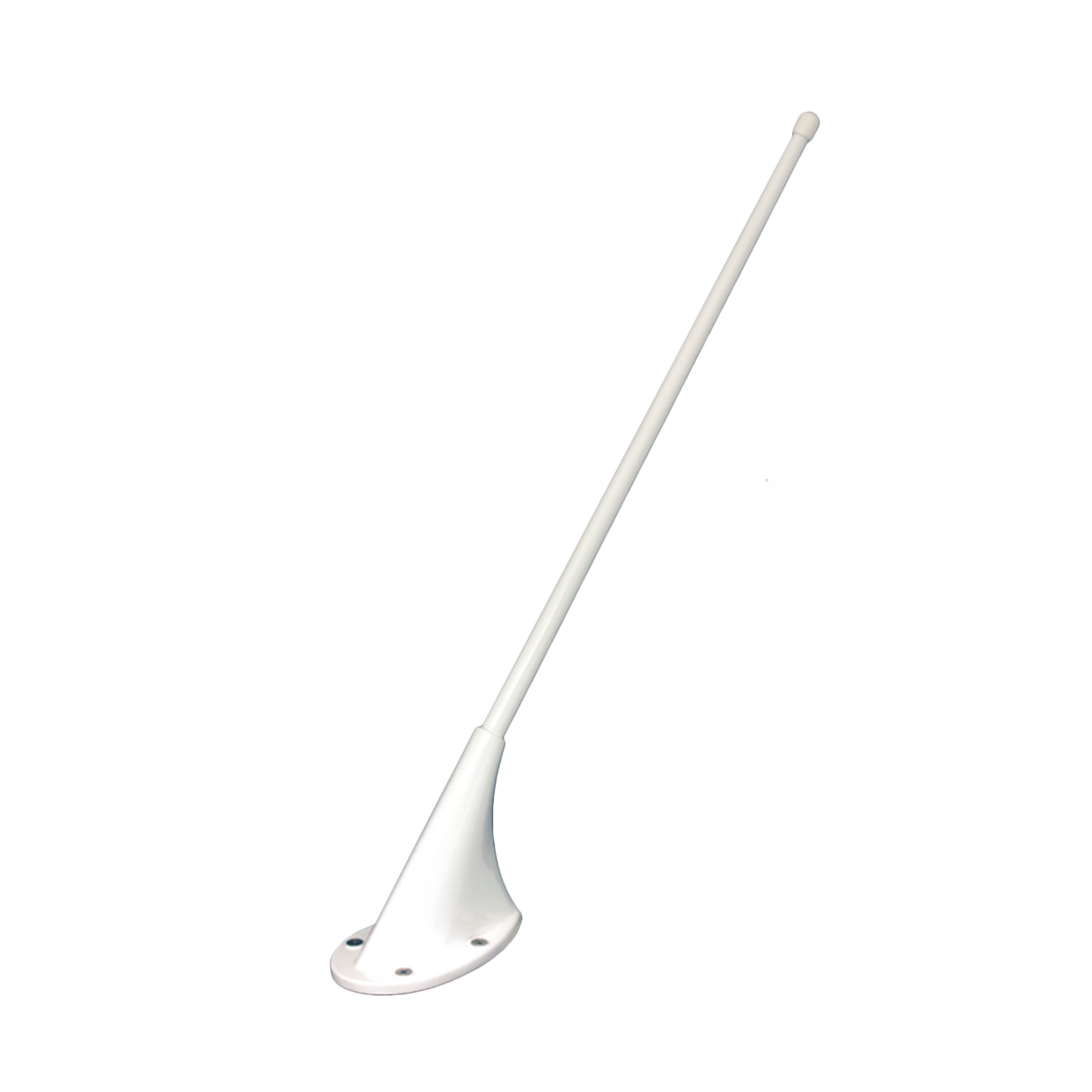

110-320 Rod Antenna
Tri-Band, Dual Input, 121.5, 243 & 406 MHz
Tri-Band, Dual Input, 121.5, 243 & 406 MHz
Tough, glass-reinforced polyester housing covers our innovative Tri-Band technology, bringing 121.5, 243, and 406 MHz into a compact package. This highly efficient antenna offers 10 dB of isolation between ports. The CI 317 provides a dual connector configuration for those installations that require this set-up. Designed to meet the Eurocae ED 62 flame test.
Two Models Available:
- 110-320 (white)
- 110-320-04 (black)
Specifications
| Weight | 0.45 lbs. |
| Height | 15.50” |
| Material | Molded radome/fiberglass whip |
| Finish | Polyurethane enamel |
| Connector | BNC (female) for 121.5/243 MHz, TNC (female) for 406 MHz |
| Temperature | -55˚ C to + 85˚ C |
| Altitude | 55,000’ |
| Color | 110-320 (white), 110-320-04 (black) |
| Gasket | B31725(optional to order separately) |
| Weight | 0.1 lbs |
|---|---|
| Dimensions | 0.1 × 0.1 × 0.1 in |
| Brand | ACR Artex |
| Color | White, Black |
