New

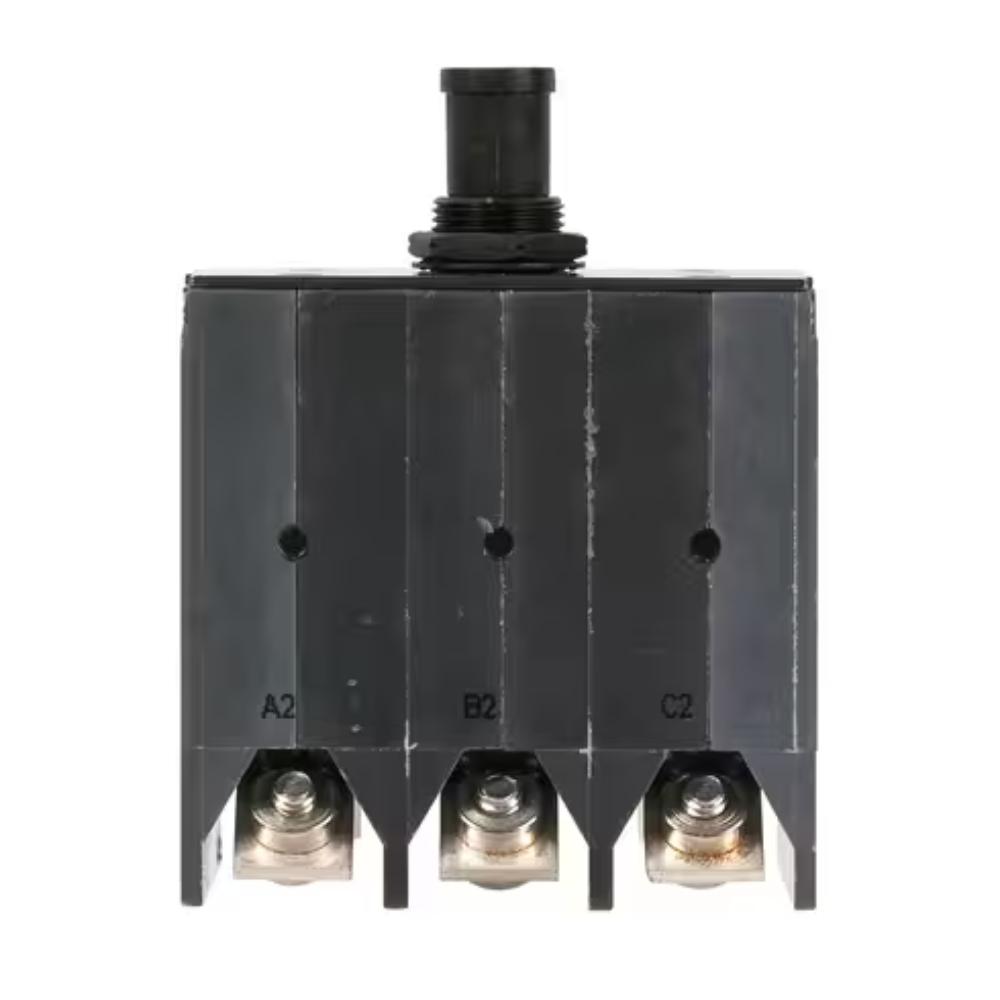

15TC30 Series Circuit Breaker | 25 Amp Rating
$1,392.49
25
Items sold in last 13 days
5
People watching this product now!
Description
The KLIXON® 15TC30 series circuit breaker was designed to meet the package size and performance requirements of inactive military standard MS90351 in the 20 to 50 amp range. This lightweight, three-phase, high performance, non-ambient temperature compensated circuit breaker is well suited for aircraft, avionics and electrical systems. The 15TC30 series features a trip-free design, which will trip open on an overload, even when manually held closed.
Includes hardware.Â
Features
- This 15TC30 series circuit breaker is rated for 25 amps.
- Light weight
- Non-ambient compensated
- Three–phase
- Trip–free design
- Current rating: 20 to 50 amps
- High performance
- Typical use: Aircraft, avionics and electronic systems
Specifications
-
Weight: 0.386 lb (175 g), maximum 0.287 lb (130 g), nominal
-
Dimensions: 55 x 34 x 54 mm, maximum
-
Specification Current Rating: 25 amps
-
Vibration: CURVE ‘J’ OF EUROCAE ED-14B, 3 G’S, 2000 HZ
-
Mechanical Shock: 50G
-
Corrosion: salt spray 48 hours
-
Humidity: 48 hours
-
Endurance: 2500 cycles: 115 VAC, 400 Hz inductive 5000 cycles: mechanical, no load
Additional information
| Weight | .1 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
| Brand |
Klixon |
