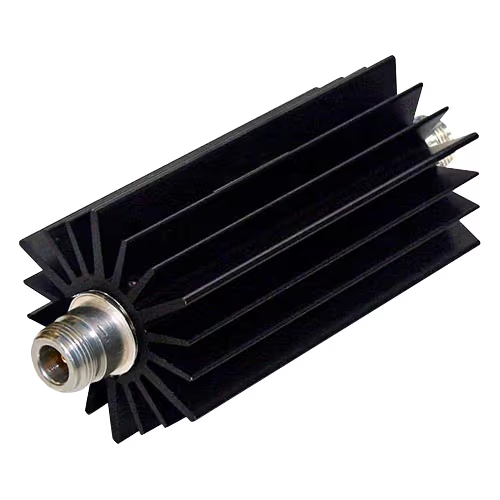

25 Watt RF Power Attenuator | 20 dB, DC to 4 GHz, 50 Ω, Female/Female
$278.30
25 Watt Convection-Cooled RF Attenuators provide reliable signal reduction for RF professionals working with higher-power systems. Designed for use in test environments, system protection, and signal isolation, these attenuators feature robust construction, passive self-cooling, and full shielding to prevent unwanted radiation. With conservative power ratings and broadband capability, the 25 Watt Series helps maintain measurement integrity and component safety without the need for external power or active cooling.
This 25 Watt RF Power Attenuator has a 20dB attenuation, DC to 4 GHz frequency range, and 50 Ω impedance with female to female connections.
Features
- Self cooling design, needs no cooling plate
- Frequencies up to 4 GHz
- Fully shielded against production of extraneous radiation
- Attenuator require no AC power
- Rugged construction
- Broadband operation
- Other attenuation values may be available upon request
- Models to cover all LTE frequencies
Specifications
Weight:
1.0 lbs (454 g)
Dimensions:
6.4 x 2.3 in (163 x 59 mm)
Power Rating:
25 W
Attenuation:
20 dB
VSWR and Frequency Range:
1.10:1 from DC to 1 GHz
1.25:1 from 1 to 4.0 GHz
Coolant Method:
Dry, Convection Cooled
Impedance:
50 Ω
Operating Position:
Any
PIM:
-110 dBc Min
Connector Gender:
Female/Female
Connector Type:
N Connector
Ambient Temperature:
-40°F to 104°F (-40°C to 40°C)
Humidity:
95% max (non-condensing)
Finish:
Black Anodized Aluminum
| Brand | BIRD Electronics |
|---|
