35A 14V Mini-GPU for Experimental/A-B Aircraft (M1435-EXP)

Safe, Affordable, Airframe Power for Experimental/Amateur-Built Aircraft

Our M-Series Mini-GPUs achieve a remarkable 88% efficiency to provide up to 35A of power at 14.25 volts DC, perfectly replicating the in-flight electrical environment. Its cool running, switching-mode power modules provide massive amounts of stable, noise-free power, compatible with input voltages from all over the world. It will continuously power the most delicate avionics and airframe systems without risk of depleting the ship’s battery or causing costly damage.

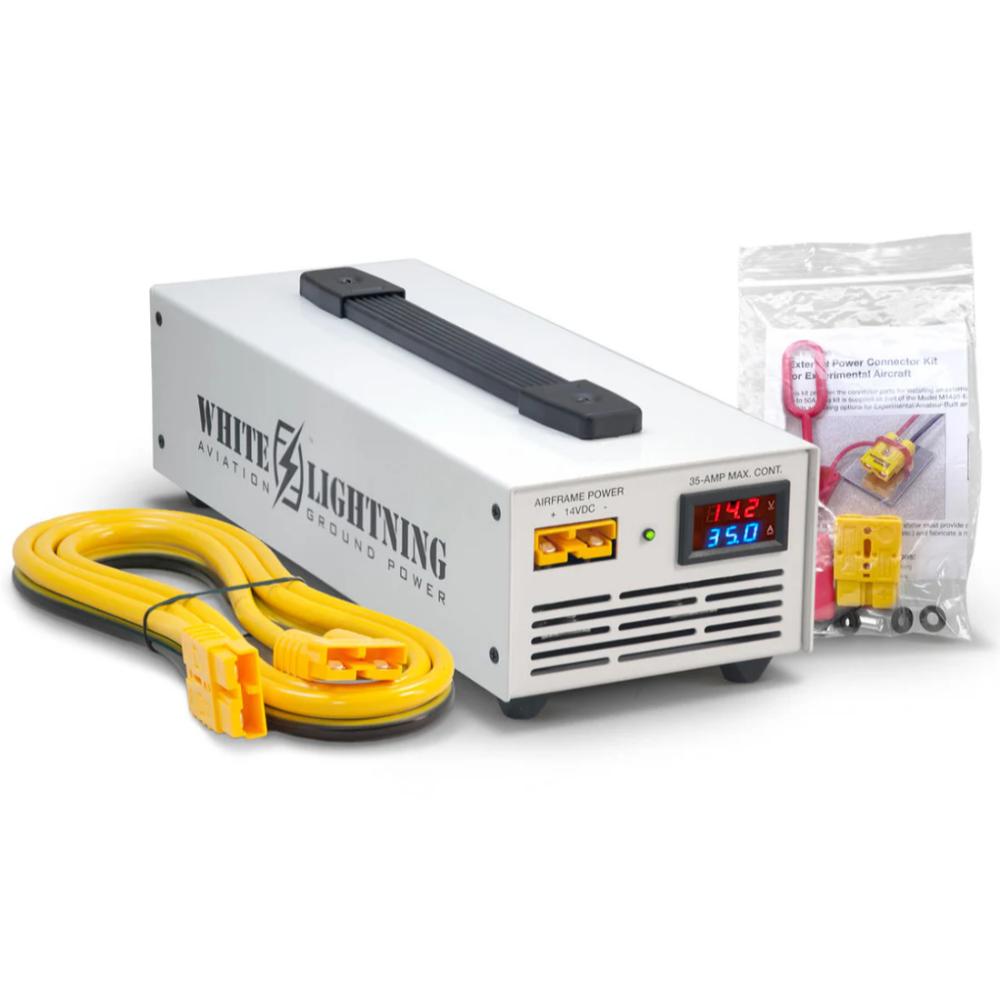

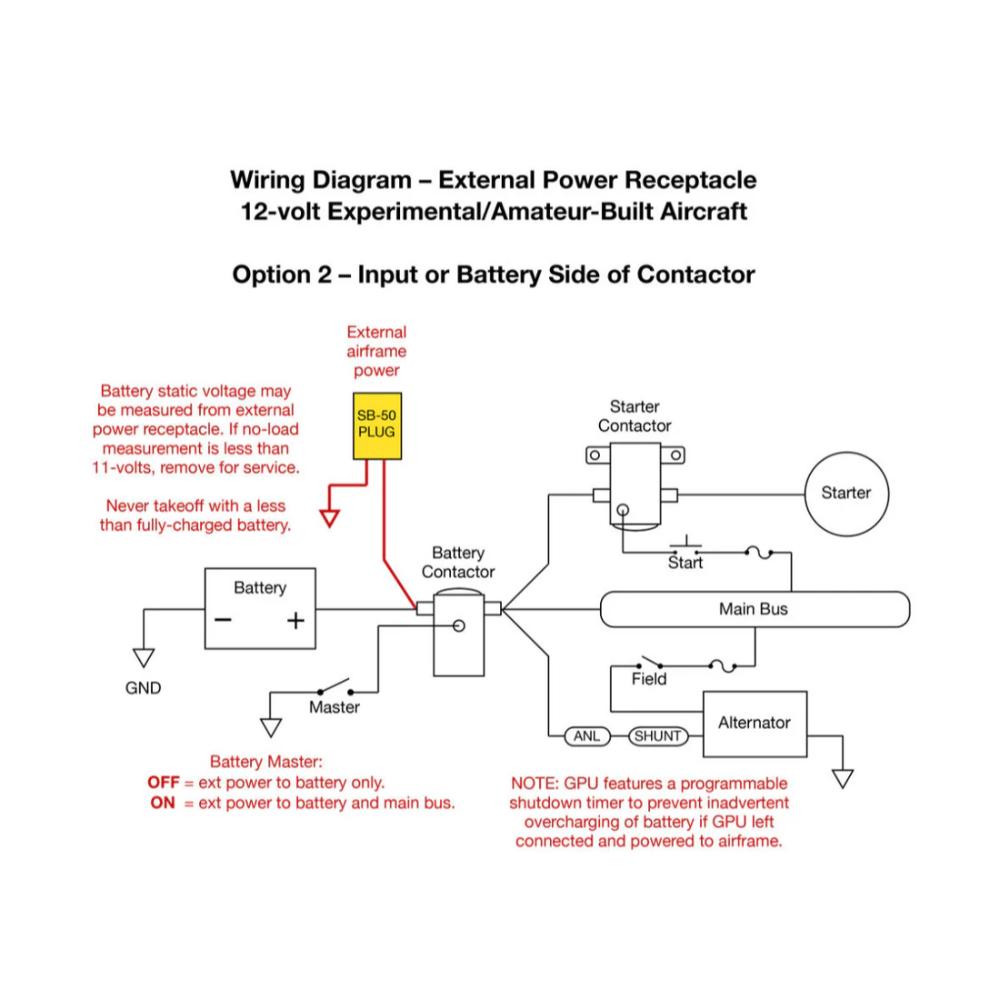

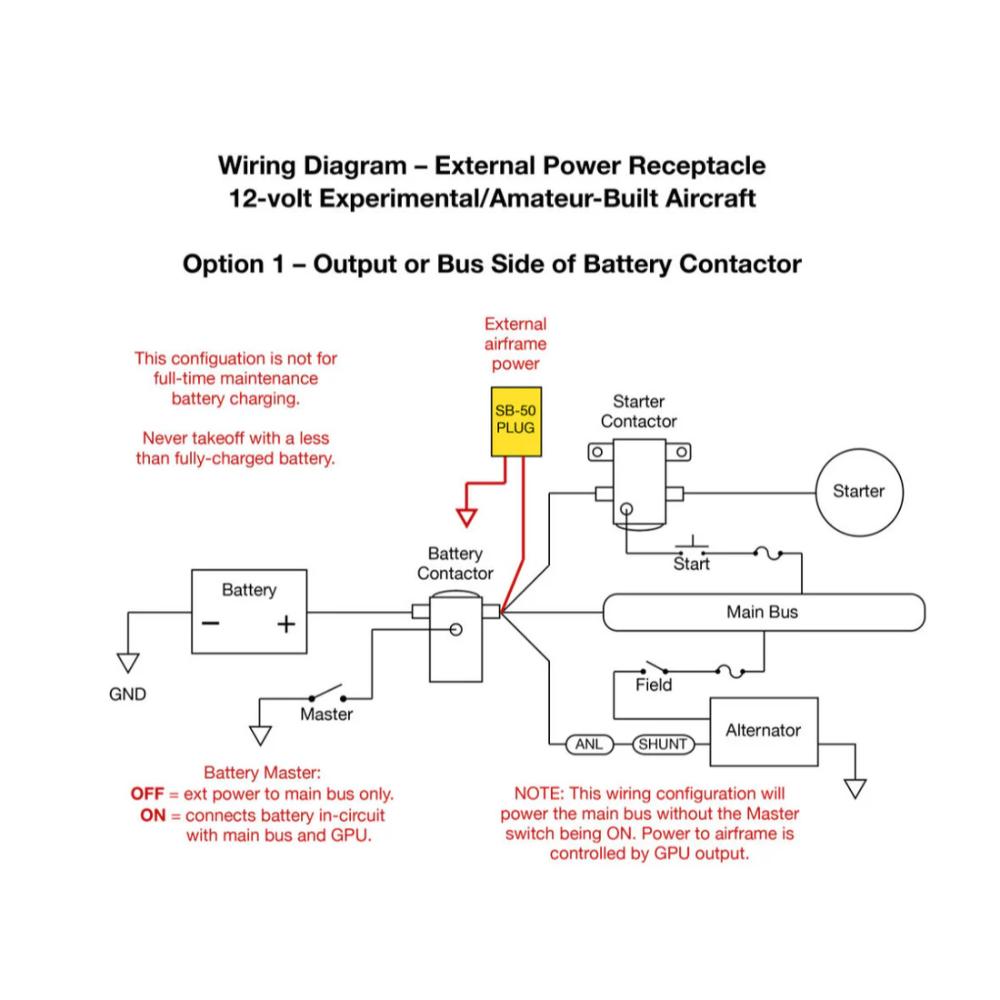

The Model M1435-EXP comes with a 6’ airframe output cable with yellow SB50 connectors at each end that protect from damage due to accidental voltage mismatch. This EXP model also provides an airframe interface kit for the builder to wire a quick connection to the aircraft’s battery solenoid or bus and ground. When not being used to power the airframe, this connection can serve as a convenient electrical access for full-time maintenance battery charging with a BatteryMINDer®.

Features

• Output: 14.25 VDC, 35 Amps maximum continuous
• Input: Universal, world-wide, 85-264 VAC, 47-63 Hz
• Switching Mode Output Module with automatic self-protection for short circuit / overload / over voltage / over temperature

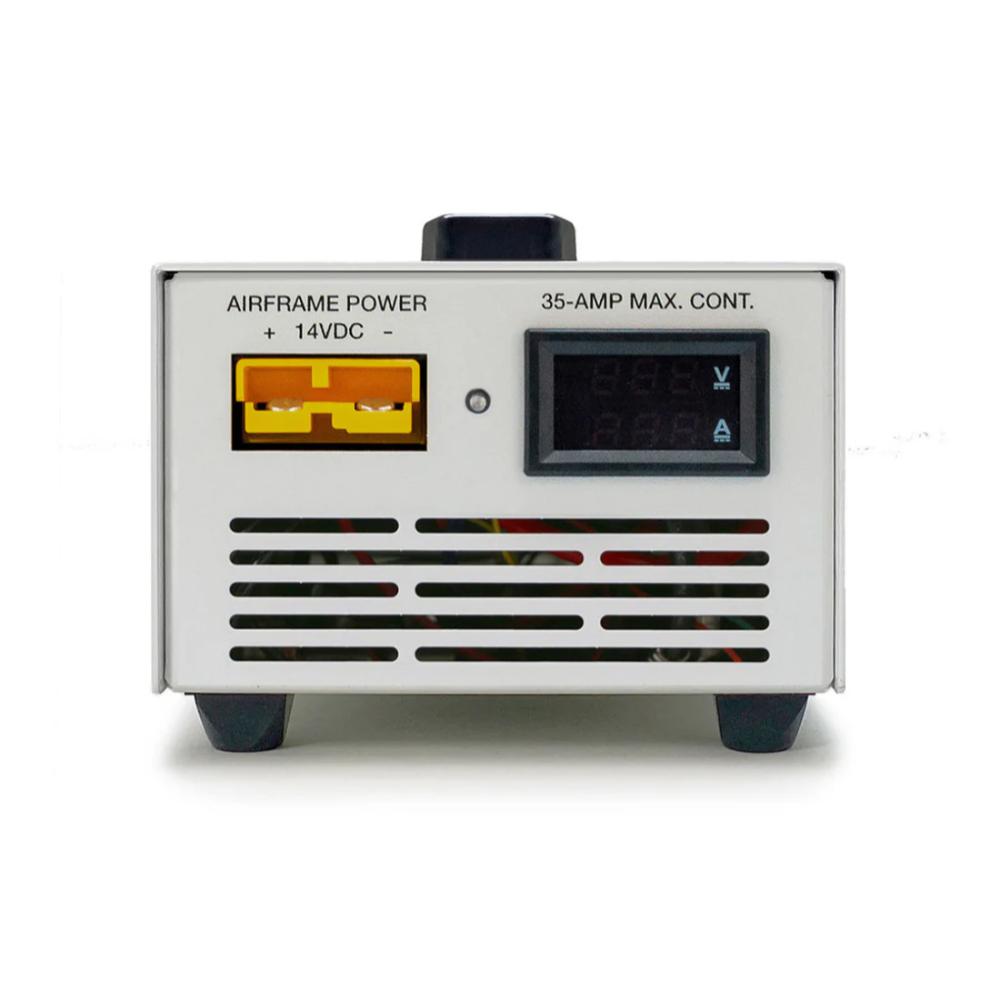

• Digital output meters for both voltage and amperes

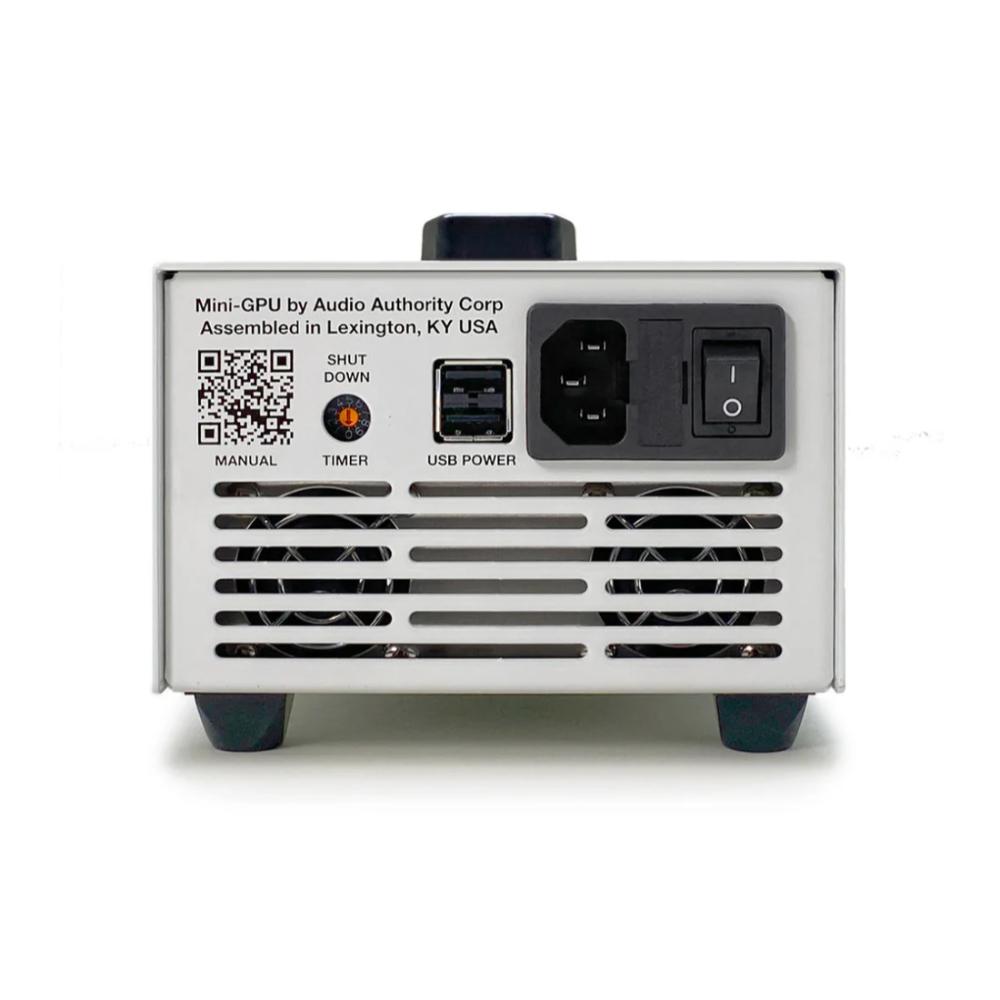

• Includes detachable input and output cables
• 6-ft airframe output cable with yellow SB50 plugs signify 12/14V operation only and lockout red 24/28V plugs to protect from voltage mismatch.
• Compact, lightweight design utilizes highly efficient digital switching-mode power modules for voltage stability and long-term reliability

Specifications

• Output: 14.25 VDC, 35 Amps maximum continuous
• Input: Universal, world-wide, 85-264 VAC, 47-63 Hz
• Unit weight: 8 lbs (without cables) shipping weight: 10.25 lbs.
• Carton size: 16 x 10 x 6 inches
• Unit size: 13.4 x 5.32 x 4.13 inches

IMPORTANT DISCLAIMER & OPERATING LIMITATIONS

Audio Authority® authorizes this device for use ONLY by aviation professionals, such as licensed pilots and maintenance technicians, knowledgeable about their aircraft electrical system and batteries. Aircraft electrical systems vary widely, especially among amateur-built experimental aircraft. The operational concepts, recommendations, and instructions presented in our manuals are necessarily general and make assumptions that do not apply to every aircraft, and may not be correct for your particular aircraft. Incorrect use of this device has the potential to damage the GPU and/or aircraft components. It is the operator’s responsibility to read completely and fully understand this manual, plus those sections of the Aircraft Flight Manual and Maintenance Manual that pertain to their aircraft’s electrical system design, to determine the appropriate use of this, or any, external power source. If you cannot do this, do not use this product. Instead, consult the airframe manufacturer or a technician familiar with your specific aircraft type and configuration before connecting the GPU to your aircraft.
