4 Ton Battery-Powered Crimp Tool for Use with HD36 Dies
$5,465.60
- Bluetooth® Connectivity
- Innovative LED display
- Tracks Number and Quality of Crimps

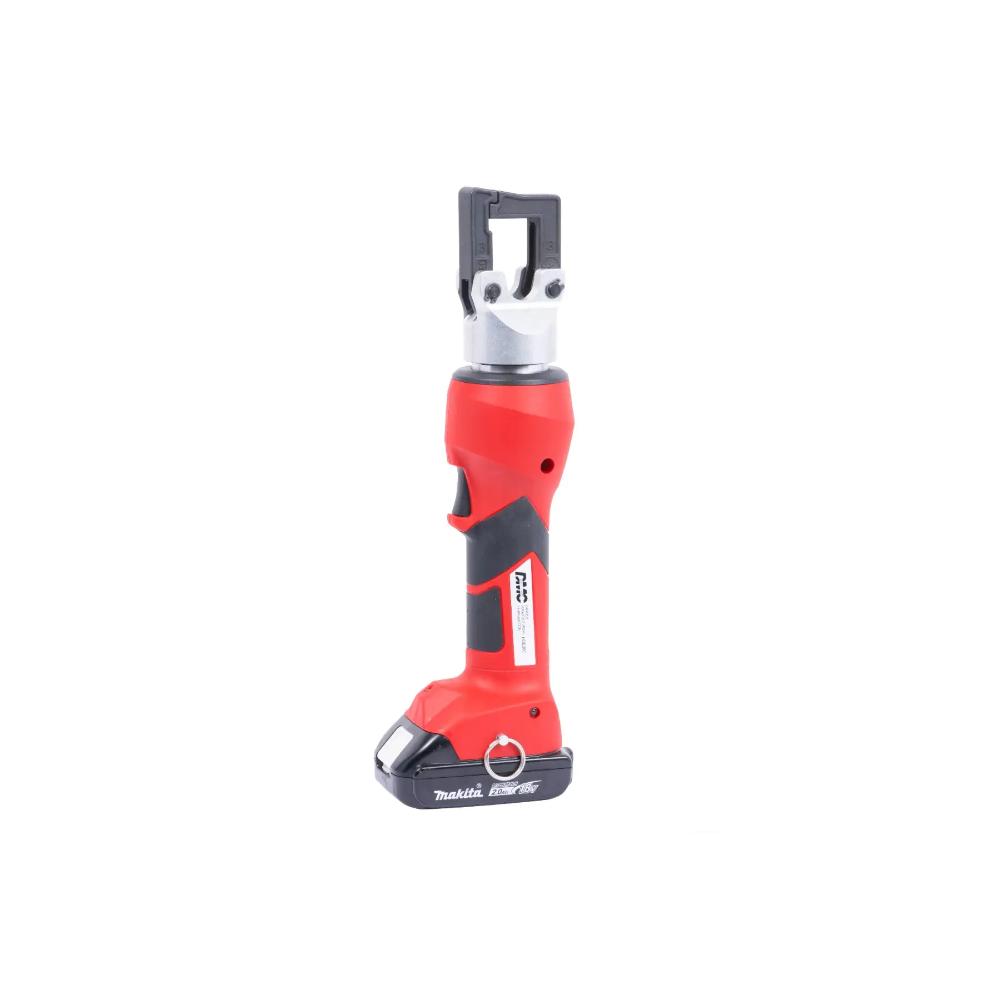

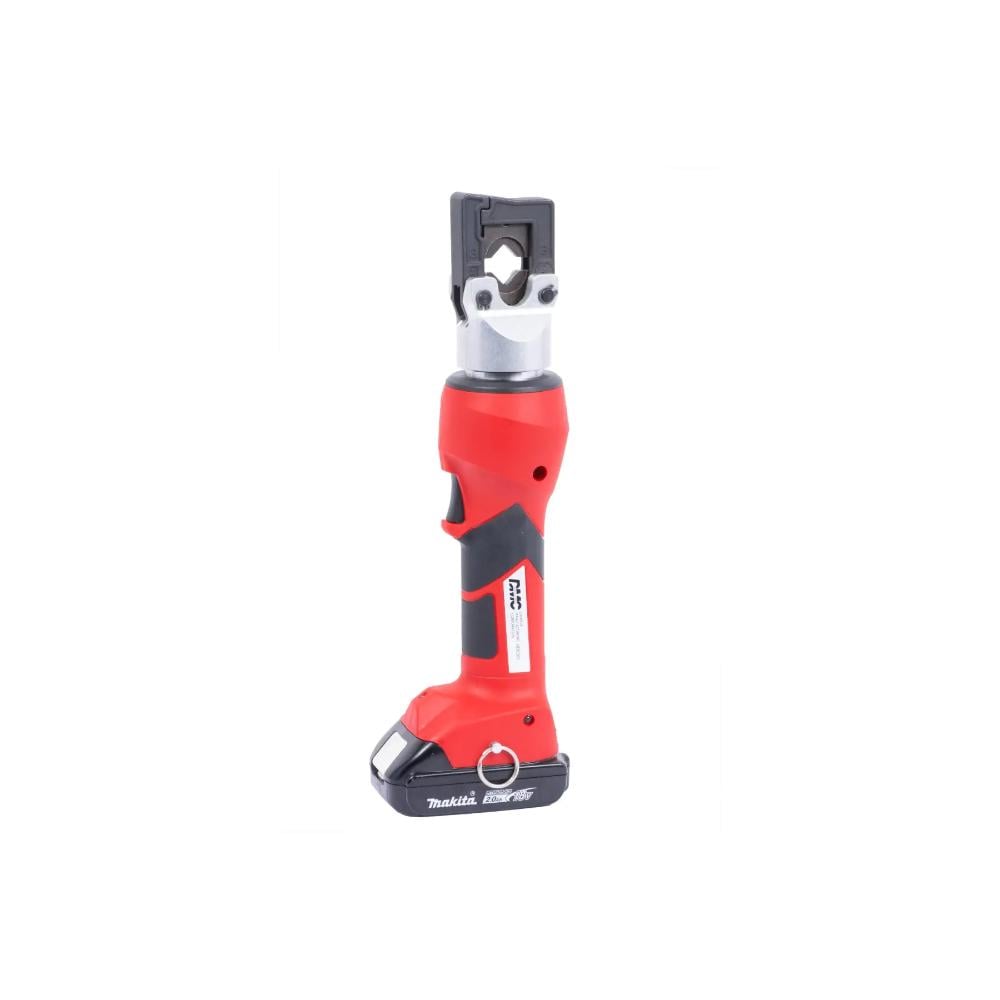

The HDE36C battery-powered crimp tool is intended to crimp copper and aluminum cable #8 to #0 AWG in many power applications, and .750” in coaxial hex crimping with DMC “D36” dies.
The HDE36C is equivalent to the HD36 with the added benefits of portable power and next-generation connectivity. Users can track tool performance, users, and projects. Crimp data is viewable in real-time on the LED display or can be downloaded via an app.
Features:
• Bluetooth® connectivity
• Tracks number and quality of crimps
• Ergonomic design allows one-handed operation
• Die automatically opens when crimp is complete
• Die can be released mid-cycle to make adjustments
• Head rotates 350°
• LED light illuminates work area
Crimp Capabilities
• Wire Range: #8 to #0 AWG .750” (19.05 mm) in Coaxial Hex
• Max. Crimp Force: 4 tons (35.6 kN)
• Avg. Crimp Time: 4 seconds
• Avg. Crimps per Charge: 85 (Approx 200 with extended life battery
The HDE36C includes:
• Carrying Case
• Two 18 VDC, 2.0 Ah, Lithium Ion Batteries
• One battery charger
Length: 14.4″ in (356mm)
Height: 2.9″ in (51mm)
Width: 4.4″ in (102mm)
Mass/Weight (with battery): 4.1 lb (1.8 kg)
Hydraulic Oil: Shell Tellus® T-15
Battery (Part# HDE-LI-B)
18 VDC, 2.0 Ah, Lithium Ion
Charging Time: 22 minutes
Optional Extended Life Battery (Part# HDE-LI3-B)
18 VDC, 3.0 Ah, Lithium Ion
Charging Time: 45 minutes
VAC Power Adapters
120 VAC Part# HDE-120AC-A
230 VAC Part# HDE-230AC-A
| Weight | .1 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
| Brand | Daniels Mfg |
