6420023-3 Flex Custom Function Display
Model Number: MD23
Technical Description
2″, Custom Programmable, Multi I/O, Solid-state MEMS Gyro and Accelerometer, LCD
Please call for programming capabilities
The Flex® is a blank slate for designers, avionics, and systems engineers. It’s the only certified all-in-one controller and data converter with glass display functionality. Flex offers a custom behind-the-panel interface or a fast and easy replacement for legacy displays beyond economical repair. Flex receives ARINC 429, analog, discrete, frequency, temperature, absolute and differential pressure data to meet the specific needs of any pilot and any mission.
Expect Fast
Go from concept to cockpit in 30 days. Flex is ready and waiting for your custom design. Its base hardware and software are already TSO certified and RTCA qualified to Design Assurance Level A. Building your custom display on this certified foundation speeds up your product development process and reduces your certification timeline by up to two years.
Expect Easy
Eliminate the complex product development process. You’ll easily customize the configuration, user interface and graphics of your Flex display. The applications are virtually limitless with 18 programmable inputs and outputs, 2 pressure ports, and internal inertial sensors. You’ll streamline integration with the standard, 2-inch size and keep life simple with a single, push-and-turn control knob, and field-upgradeable software.
Expect Affordable
Cut cost, not corners. Design a fully certified, custom function display at a price you can afford. Flex NRE and certification costs are exceptionally low, starting at only $10K. Now, you can leverage leading-edge technology and a game-changing product development process to save up to $1M, per custom display.
Benefits
- 18 programmable inputs and outputs, 2 pressure ports and internal sensors, customizable user interface and graphics
- Receives and displays ARINC 429, analog, discrete, frequency, temperature, absolute and differential pressure data

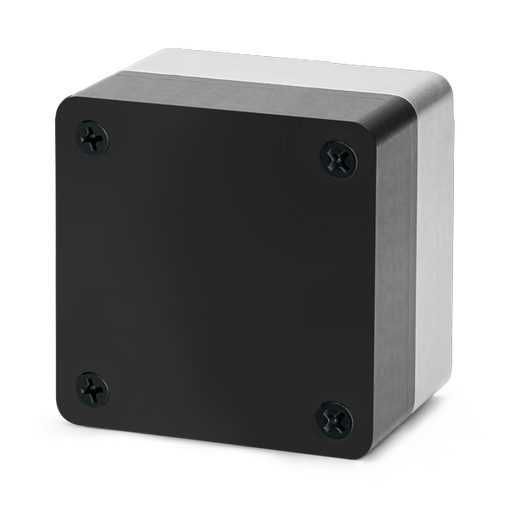

- Optional cover plate for behind-the-panel installations
- Rechargeable, field-replaceable emergency battery available
- Lightweight — 0.4 lbs
- Field-upgradeable software and configuration via standard USB-A port
- Glass display functionality
- Simple user interface with single, push-and-turn control knob
- Daylight readable LCD display and smooth, high-resolution graphics
- Manual, external lighting control or built-in photocell for automatic dimming
- Night Vision Imaging System (NVIS) compatible units available
- Fits standard 2-inch panel cutout with easy installation
- TSO certified, RTCA DO-160G and RTCA DO-178C qualified (Design Assurance Level A)
- Designed and built in Wichita, Kansas, USA
- Two-year limited warranty
Specifications
Power Input
10–32 VDC
0.14 A @ 28 VDC; 4 watts nominal
Data Input
| ARINC 429 | Low or high speed; labels per individual CID |
| RS-232 | Data format per individual CID |
| RS-422/485 | Data format per individual CID |
| Analog* | -24-29 VDC, 1% accuracy (±0.050 V) |
| Discrete* | Open, ground, high |
*Up to 12 programmable Analog or Discrete inputs available
Data Output
| ARINC 429 | Low or high speed; labels per individual CID |
| RS-232 | Data format per individual CID |
| RS-422/485 | Data format per individual CID |
| Analog* | -8-8 VDC, 1% accuracy (±0.050 V) |
| Discrete* | Open, ground, high |
*Up to 12 programmable Analog or Discrete outputs available
Lighting
5, 14, or 28 VDC external control or internal photocell for automatic dimming
Battery
Rechargeable coin cell (clock memory only)
Rechargeable, field-replaceable emergency battery supply (available)
P/N 6430006-(1)
Technology: Nickel-Metal Hydride (NiMH)
Attributes: 0.25A @ 24 VDC nominal (6 Wh capacity)
Runtime: 60 minutes @ 0.25A
Weight
0.4 lbs (0.17 kg)
Mounting Options
Rear panel mounted, (4) #6–32 screws, 2.25-inch round bezel
Behind-the-panel mount
Dimensions
2.43″W x 2.43″H x 1.0″D (61.7mm x 61.7mm 25.4mm)
Mating Connector
| MCIA P/N 9019162-1 | 26-pin, D-Sub electrical connector (Quick Disconnect) |
| MCIA P/N 9019162-2 | Pneumatic fittings (Quick Disconnect) |
Certification
FAA TSO certified to C2d (Type B), C3e, C4c, C8e, C10c, C106, C113b, C201
RTCA DO-160G qualified
RTCA DO-178C qualified, Design Assurance Level (DAL) A
Rights
U.S. Patent 11,048,389
| Weight | 0.1 lbs |
|---|---|
| Dimensions | 0.1 × 0.1 × 0.1 in |
| Brand |
Mid-Continent Instruments and Avionics |
