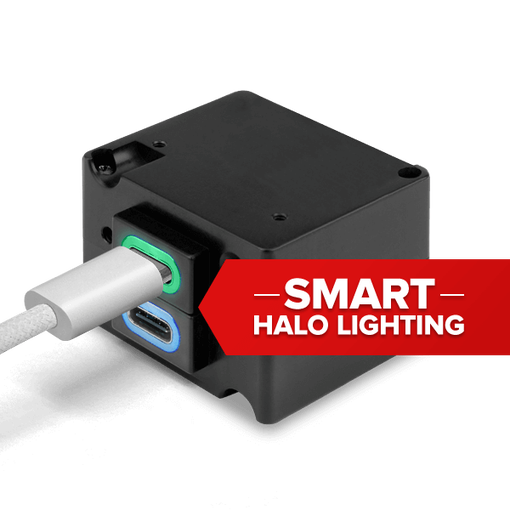

6430245-13 USB Charger
$560.00
Model Number: TA245
Technical Description
Benefits
- 45 W max output power per port
- Simultaneously provides 3 amps of power per charging port to USB-C electronic devices
- 12 – 32 VDC input voltage
- Dual USB-C connectors
- 3.3 – 20 VDC output voltage @ up to 3.0 A per port
- Power Delivery 3.0, Programmable Power Supply 3.0, Qualcomm® Quick Charge™ 3.0, Battery Charging 1.2
- Smart Halo Lighting – charging status at a glance
- Manual lighting control
- Charge one or two devices simultaneously at full power
- Short circuit, power surge, overload and over temperature protection
- In-seat, cabin, cockpit and galley applications
- Designed and built in Wichita, Kansas, USA
- Limited lifetime warranty
Specifications
Output Power
45 W max per port
Output Voltage
3.3 – 20 VDC @ up to 3.0 A per port
Output Current
3.0 amps per port
Input Power
52 W max per port
Input Voltage
12 – 32 VDC
USB Connector
Dual USB-C
USB Lighting
Smart Halo status indication: power, charging, fault
Manual lighting control
Power Input
Rear
Weight
1.8 ounces (52 grams)
Dimensions
1.5”W x 1.03”H x 1.25”D
Mating Connector Kit
MCI P/N 9017960 (included)
MCI P/N 9017960-2
Mounting
Front or rear; faceplates and adapter plates (optional)
Installation
In-seat, cabin, cockpit and galley
Faceplates
9020386-1
9019351-2
9019384-4
Adapters
9010361-2
9010361-4
9017947
Case
Anodized aluminum, black
Certification
FAA TSO C71
EASA ETSO C71
RTCA DO-160G
| Weight | 0.1 lbs |
|---|---|
| Dimensions | 0.1 × 0.1 × 0.1 in |
| Brand | Mid-Continent Instruments and Avionics |
