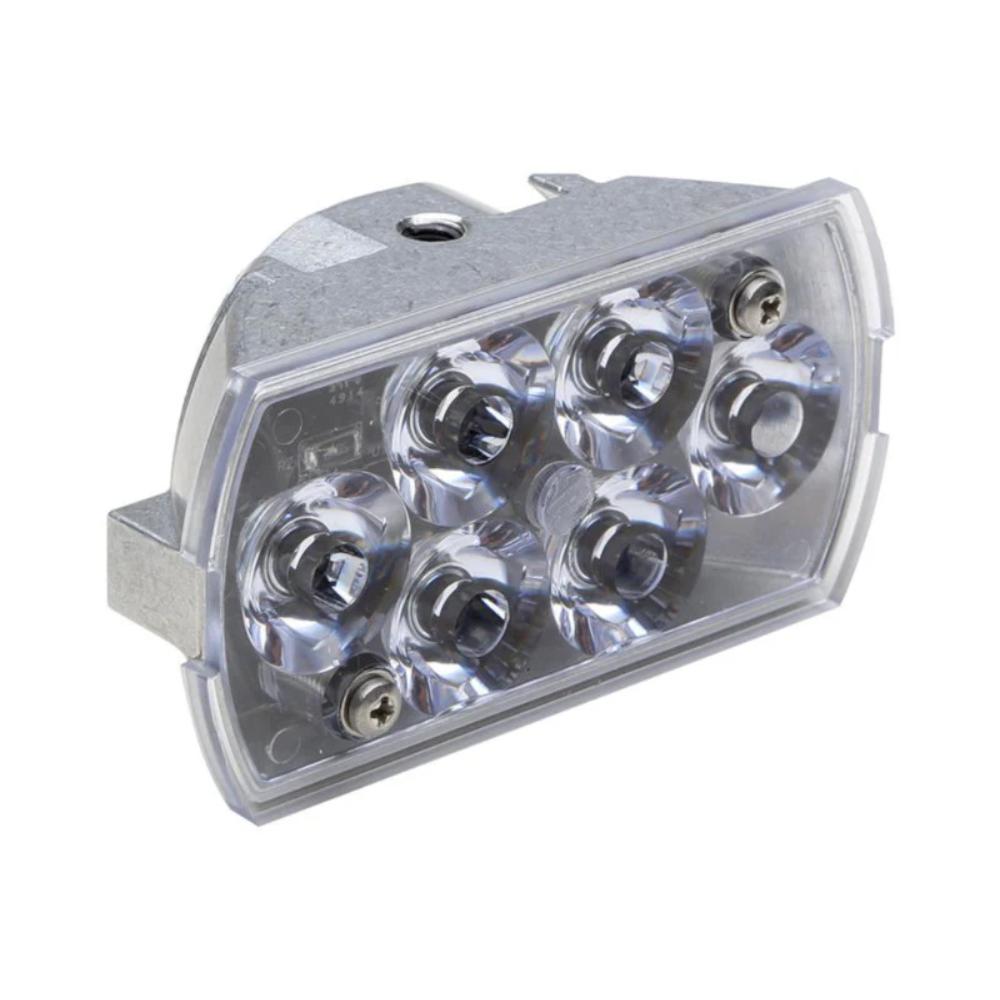

71888/71898/71958 RECOGNITION LIGHT ASSEMBLIES
LED Form • Fit • Function replacement to A775 & A775EXP series.
LED Form • Fit • Function replacement to A775 & A775EXP series.
TECH SPECS
Weight 0.25 lbs. (113.5gm)
Dimensions L: 3.16” (80mm) W: 1.47” (37mm) H: 1.65” (42mm)
Current Draw 14VDC: 0.60 Amps 28VDC: 0.30 Amps
Candela: 26,000
| MODEL | PART # | DESCRIPTION |
| 7195800 | 01-0771958-00 | LED Recog, • 14V Piper Molex connector OEM Part # 475-346 |
| 7195801 | 01-0771958-01 | LED Recog, • 28V Piper Molex connector OEM Part # 475-347 |
| 7188800 | 01-0771888-00 | LED Recog, • 14V Standard Catalog Item |
| 7188801 | 01-0771888-01 | LED Recog, • 28V Standard Catalog Item |
| 7189800 | 01-0771898-00 | LED Recog, • 28V Beech |
| 71898P0 | 01-0771898-PO | LED Recog, • 28V Beech Painted |
| 7189801 | 01-0771898-01 | LED Recog, • 28V Beech • Approvals: PMA Textron Part # 130-381001-003 |
REFERENCE ONLY
Legacy A775 Series
CROSS REFERENCE
| Legacy Model | Legacy Part # | Replaced By Model | Replaced by Part Number # |
| A77514 | 01-0770110-04 | 7188800 | 01-0771888-00 |
| 7045300 | 01-0770453-00 | 7189800 | 01-0771898-00 |
| 7045301 | 01-0770453-01 | 71898PO | 01-0771898-PO |
| 7045302 | 01-0770453-02 | 7188800 | 01-0771888-00 |
| 7042900 | 01-0770429-99 | 7189801 ( NOTE 1) | 01-0771898-01 |
WARNING: These products may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
| Weight | .1 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
| Brand |
Whelen |
| Model |
7195800 LED Recog 14V Piper Molex connector OEM Part 475-346 ,7195801 LED Recog 28V Piper Molex connector OEM Part 475-347 ,7188800 LED Recog 14V Standard Catalog Item ,7188801 LED Recog 28V Standard Catalog Item ,7189800 LED Recog 28V Beech ,71898P0 LED Recog 28V Beech Painted ,7189801 LED Recog 28V Beech Approvals: PMA |
