877 Series Digital Chronometer | 28V Lighting, Gray Face Plate, Rear Mount
$871.56
Davtron’s 800-series clocks are multi-functional chronometers with an easy to use two-button design. They display universal time, local time, and elapsed time. The 800 series come with two different screen formats, either liquid crystal or incandescent — both with illuminated screens that are readable in high sunlight situations.

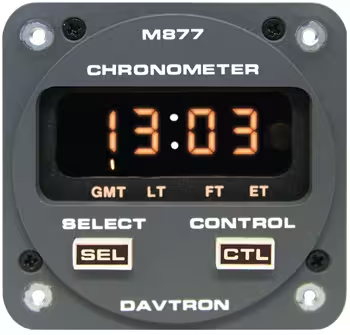

This 877 series chronometer features 28V lighting with illuminated buttons, a gray face plate, and rear mount installation.
Features
- 2-1/4 inch internal mount
- Two-button control system
- Greenwich Mean Time
- Local Time
- Flight time with alarm
- Elapsed time counter with countdown timer
- Elapsed time alarm
- Option audio alarm
- Bright, incandescent, sunlight readable display
- Automatic dimming
- Illuminated buttons and annunciators
- Keep alive battery option
- FAA-PMA approved
Specifications
Weight:
5 oz
Dimensions:
1.875 x 2.375 x 2.81 in
Battery Type:
N size alkaline Model 850
AA size alkaline Model 850
Keep Alive Current:
0.00004 Amps
Input Current:
0.2 Amps
Input Voltage:
14V – 28V (backlight available 5V, 14V, or 28V)
NVIS Option:
NVIS Green A lighting
Face plate:
black with engraved nomenclature
gray with silkscreened nomenclature
| Weight | 0.1 lbs |
|---|---|
| Dimensions | 0.1 × 0.1 × 0.1 in |
| Brand | Davtron |
