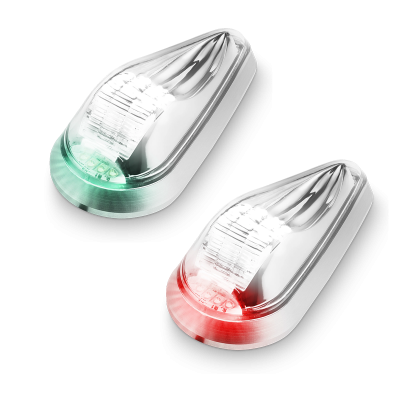

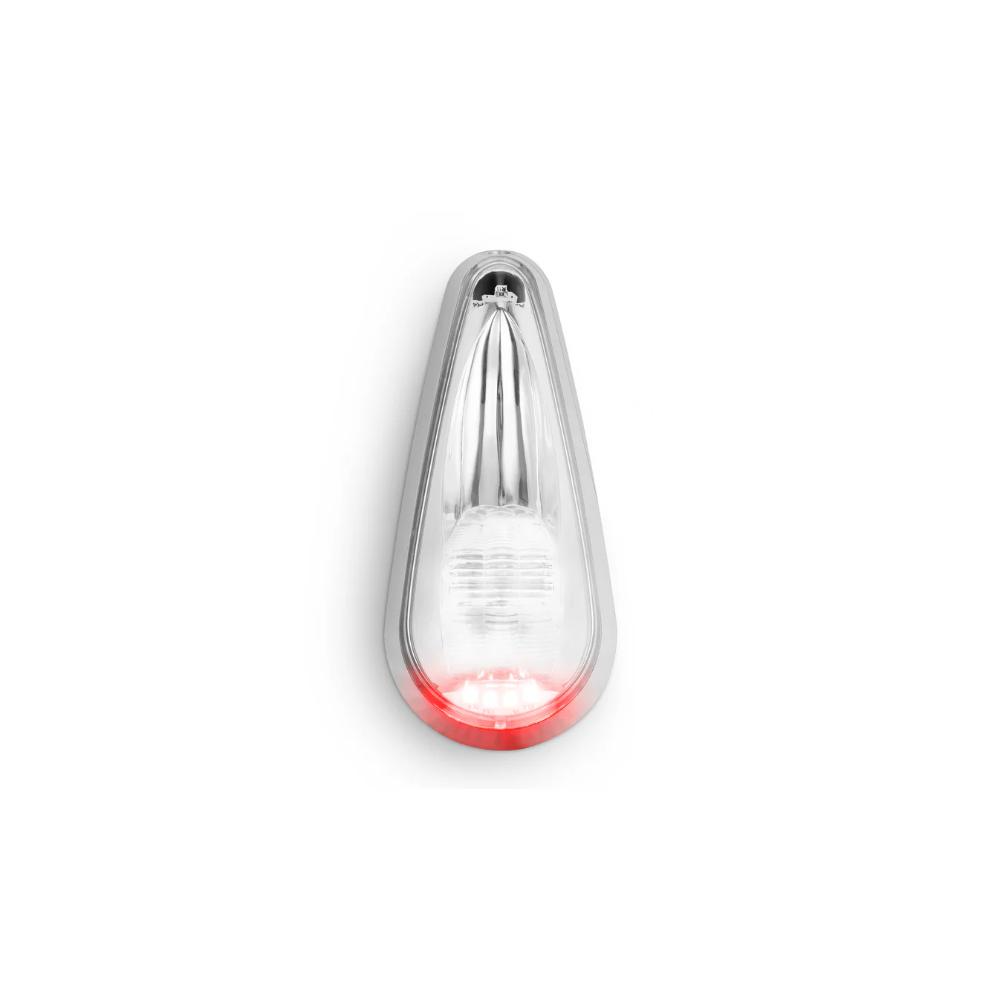

AeroLEDs Pulsar 650 LED Forward Position / Anti-collision Wingtip Lights – Certified
$628.00
The Pulsar 650 (formally known as Pulsar NS) is a versatile two-in-one LED light designed for optimal performance and compliance. It functions as both a navigation light for directional red and green positioning and a strobe light for enhanced visibility during daylight and nighttime flights.
With its aerodynamic, low-drag profile, industry-standard mounting footprint, and a patented three-position mounting bracket, the Pulsar 650 is an ideal replacement for legacy light installations.
CERTIFIED – LED FORWARD POSITION / ANTI-COLLISION WINGTIP LIGHTS
The Pulsar 650 (formally known as Pulsar NS) is a versatile two-in-one LED light designed for optimal performance and compliance. It functions as both a navigation light for directional red and green positioning and a strobe light for enhanced visibility during daylight and nighttime flights.
With its aerodynamic, low-drag profile, industry-standard mounting footprint, and a patented three-position mounting bracket, the Pulsar 650 is an ideal replacement for legacy light installations.
Key Features:
- Dual Functionality: Navigation and strobe lighting in one compact design.
- Power Options: Compatible with both 12V and 24V systems.
- Energy Efficient: Low power consumption with no external power supply required.
- Strobe Synchronization: Available for multi-light setups.
- Easy Installation: Standard mounting screw pattern for seamless upgrades.
- Certified for Safety: FAA-TSOA/STC approved, exceeding C-30c Type I & II, and C-96a Class II standards.
Upgrade your aircraft lighting with the reliable and efficient Pulsar 650.
| Legacy Product Part Number | Legacy Product Model Number | Pulsar™ 650 Part Number | Pulsar™ 650 Model Number |
| 01-0770054-01 | A650PG28 | 11-1280-B-24-R | Pulsar 650 – 28V GREEN |
| 01-0770054-03 | A650PR28 | 11-1280-B-24-L | Pulsar 650 – 28V RED |
| 01-0770054-00 | A650PG14 | 11-1280-B-12-R | Pulsar 650 – 14V GREEN |
| 01-0770054-02 | A650PR14 | 11-1280-B-12-L | Pulsar 650 – 14V RED |
| 01-0771110-03 | 7111003 | 11-1280-B-24-L | Pulsar 650 – 28V RED |
| 01-0771110-04 | 7111004 | 11-1280-B-24-R | Pulsar 650 – 28V GREEN |
| 01-0771110-01 | 7111001 | 11-1280-B-12-L | Pulsar 650 – 14V RED |
| 01-0771110-02 | 7111002 | 11-1280-B-12-R | Pulsar 650 – 14V GREEN |
| 01-0770001-42 | W1285PG28 | 11-1280-B-24-R | Pulsar 650 – 28V GREEN |
| 01-0770001-52 | W1285PR28 | 11-1280-B-24-L | Pulsar 650 – 28V RED |
| 01-0770001-41 | W128514 | 11-1280-B-12-R | Pulsar 650 – 14V GREEN |
| 01-0770001-51 | W128514 | 11-1280-B-12-L | Pulsar 650 – 14V RED |
| 01-0771105-03 | 7110503 | 11-1280-B-24-L | Pulsar 650 – 28V RED |
| 01-0771105-04 | 7110504 | 11-1280-B-24-R | Pulsar 650 – 28V GREEN |
| 01-0771105-01 | 7110501 | 11-1280-B-12-L | Pulsar 650 – 14V RED |
| 01-0771105-02 | 7110502 | 11-1280-B-12-R | Pulsar 650 – 14V GREEN |
Tech Specs
- Current Draw (ea):
- 14VDC: Position Light: 0.8 Amps | Anti-Collision Light 0.65 Amps (Average) | 4.9 Amps (Peak)
- 28VDC: Position Light: 0.4 Amps | Anti-Collision Light 0.4 Amps (Average) | 3.05 Amps (Peak)
- Weight: 0.24 lbs.
- Length: 4″ Width: 1.9″ Depth: 1.5″
- Includes patented three-position mounting bracket
Videos
| Brand |
AeroLEDs |
|---|---|
| Model |
Pulsar 650 – 14V RED ,Pulsar 650 – 14V GREEN ,Pulsar 650 – 28V RED ,Pulsar 650 – 28V GREEN |
