AeroLEDs SUNSPOT 36-4000 (75W) LED Landing & Taxi Lights – Certified
Price range: $439.00 through $603.00
75W Landing & Taxi Lights
Upgrade your Vans aircraft with the AeroSun VXi Wingtip, a fully integrated lighting system developed in partnership with Vans Aircraft. Designed with precision and versatility, the AeroSun VXi is available in Carbon Fiber and Fiberglass options to seamlessly fit:
- Vans RV-4, RV-6, RV-7, RV-8 (KIT-0083 & KIT-0084)
- Vans RV-10, RV-14 (KIT-0081 & KIT-0082)
The AeroSun VXi combines advanced lighting functionality with sleek design, delivering exceptional performance for navigation, landing, taxi, and more.
Key Features:
- Landing/Taxi Lights for improved visibility.
- Navigation Lighting exceeding TSO C-30c, Type I & II standards.
- Anti-Collision Strobe exceeding TSO-C96a Class II standards.
- Position and Anti-Collision Systems (ACS) surpassing TSO C-30c, Type III & TSO-C96a Class II standards.
- Underwing Inspection/Convenience Light for enhanced utility.
- Built-in Pulse Mode (wig-wag) for recognition and collision avoidance.
- Synchronization for multi-light setups.
Redefine your flight experience with the AeroSun VXi, delivering durability, efficiency, and unmatched lighting performance
| GE Bulb # | SunSpot Model | SunSpot Part # | Voltage |
| 4416 | SunSpot 36-4509 | 01-1030-4509 | 14V |
| 4416 | SunSpot 36-4509-H | 01-1030-4509-H | 14V |
| 4505 | SunSpot 36-4591 | 01-1030-4591 | 28V |
| 4505 | SunSpot 36-4591-H | 01-1030-4591-H | 28V |
| 4509 | SunSpot 36-4509 | 01-1030-4509 | 14V |
| 4509 | SunSpot 36-4509-H | 01-1030-4509-H | 14V |
| 4587 | SunSpot 36-4626 Taxi | 01-1030-4626 | 28V |
| 4587 | SunSpot 36 4626-H Taxi | 01-1030-4626-H | 28V |
| 4591 | SunSpot 36-4591 | 01-1030-4591 | 28V |
| 4591 | SunSpot 36-4591-H | 01-1030-4591-H | 28V |
| 4593 | SunSpot 36-4626 Taxi | 01-1030-4626 | 28V |
| 4593 | SunSpot 36 4626-H Taxi | 01-1030-4626-H | 28V |
| 4594 | SunSpot 36-4591 | 01-1030-4591 | 28V |
| 4594 | SunSpot 36-4591-H | 01-1030-4591-H | 28V |
| 4595 | SunSpot 36-4509 | 01-1030-4509 | 14V |
| 4595 | SunSpot 36-4509-H | 01-1030-4509-H | 14V |
| 4596 | SunSpot 36-4591 | 01-1030-4591 | 28V |
| 4596 | SunSpot 36-4591-H | 01-1030-4591-H | 28V |
| 4623 | SunSpot 36-4626 Taxi | 01-1030-4626 | 28V |
| 4623 | SunSpot 36 4626-H Taxi | 01-1030-4626-H | 28V |
| 4626 | SunSpot 36-4626 Taxi | 01-1030-4626 | 28V |
| 4626 | SunSpot 36 4626-H Taxi | 01-1030-4626-H | 28V |
| 4627 | SunSpot 36-4626 Taxi | 01-1030-4626 | 28V |
| 4627 | SunSpot 36 4626-H Taxi | 01-1030-4626-H | 28V |
| Q4631 | SunSpot 36-4509 | 01-1030-4509 | 14V |
| Q4631 | SunSpot 36-4509-H | 01-1030-4509-H | 14V |
| Q4632 | SunSpot 36-4509 | 01-1030-4509 | 14V |
| Q4632 | SunSpot 36-4509-H | 01-1030-4509-H | 14V |
Tech Specs
- Max Current: Landing Lights: 5.4A@14VDC, 2.7A@28VDC Taxi Lights: 5.4A@14VDC, 2.7A@28VDC
- Weight: 0.7 lbs.
- Length: 4.4″ Width: 4.4″ Depth: 2.0″
| Model | Part # | Description | Peak Candela | Beam Profile | Wigwag/Sync | Approvals |
| 36-4509 | 01-1030-4509 | 75W PAR 36 LANDING LIGHT 14V. | 200,000 | 15ºx15º | No | FAA-PMA/STC |

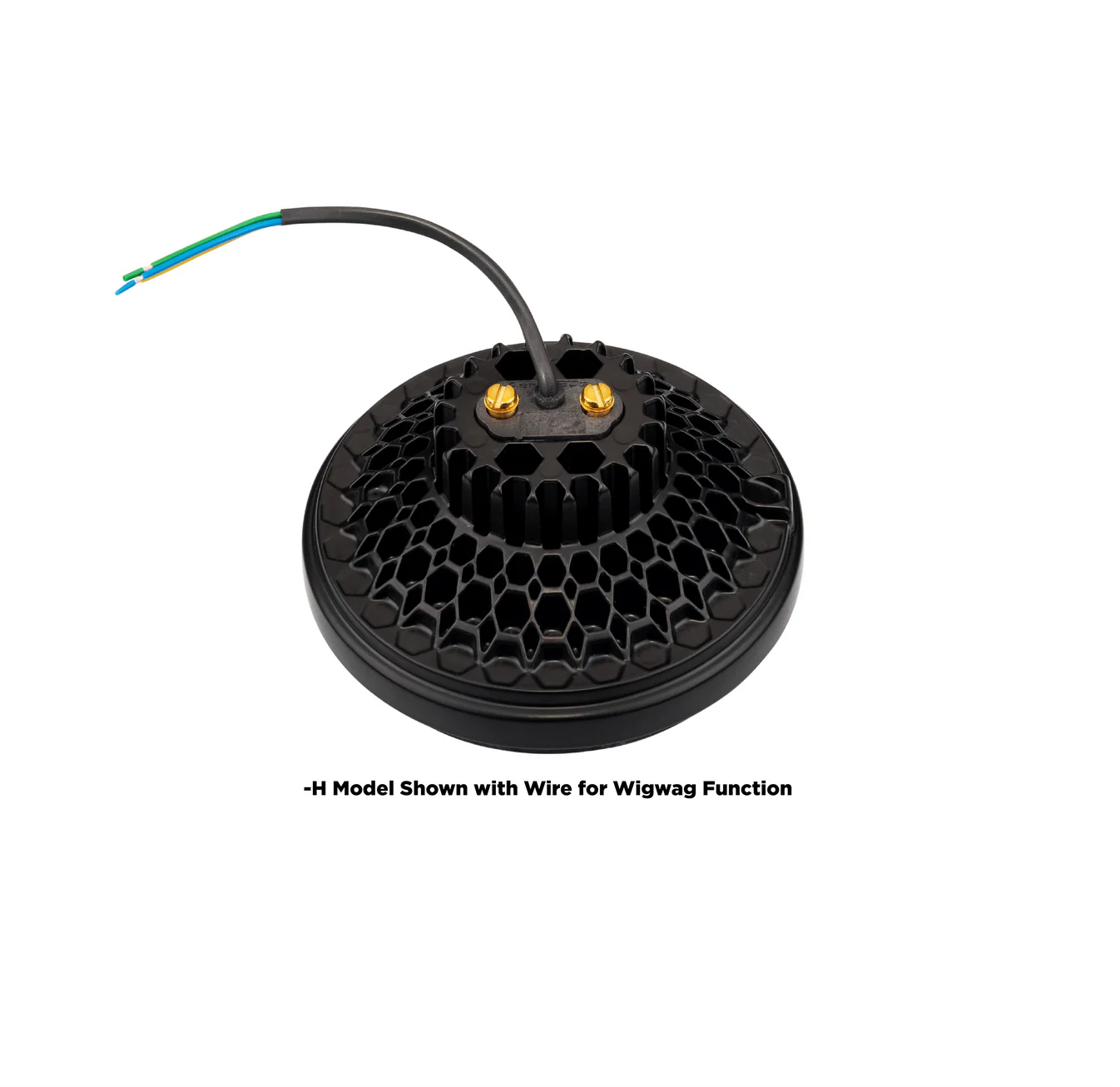

| 36-4509-H | 01-1030-4509-H | 75W PAR 36 LANDING LIGHT WITH WIGWAG 14V. | 200,000 | 15ºx15º | Yes | FAA-PMA/STC |
| 36-4591 | 01-1030-4591 | 75W PAR 36 LANDING LIGHT 28V. | 200,000 | 15ºx15º | No | FAA-PMA/STC |
| 36-4591-H | 01-1030-4591-H | 75W PAR 36 LANDING LIGHT WITH WIGWAG 28V. | 200,000 | 15ºx15º | Yes | FAA-PMA/STC |
| 36-4519 Taxi | 01-1030-4519 | 75W PAR 36 TAXI LIGHT 14V. | 60,000 | 20º(VERT)X40º(HZTL) | No | FAA-PMA/STC |
| 36-4626 Taxi | 01-1030-4626 | 75W PAR 36 TAXI LIGHT 28V. | 60,000 | 20º(VERT)X40º(HZTL) | No | FAA-PMA/STC |
| Weight | .1 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
| Brand |
AeroLEDs |
| Model |
75W PAR 36 LANDING LIGHT 14V. ,75W PAR 36 LANDING LIGHT WITH WIGWAG 14V. ,75W PAR 36 LANDING LIGHT 28V. ,75W PAR 36 LANDING LIGHT WITH WIGWAG 28V ,01-1030-4519 75W PAR 36 TAXI LIGHT 14V ,75W PAR 36 TAXI LIGHT 28V. |
