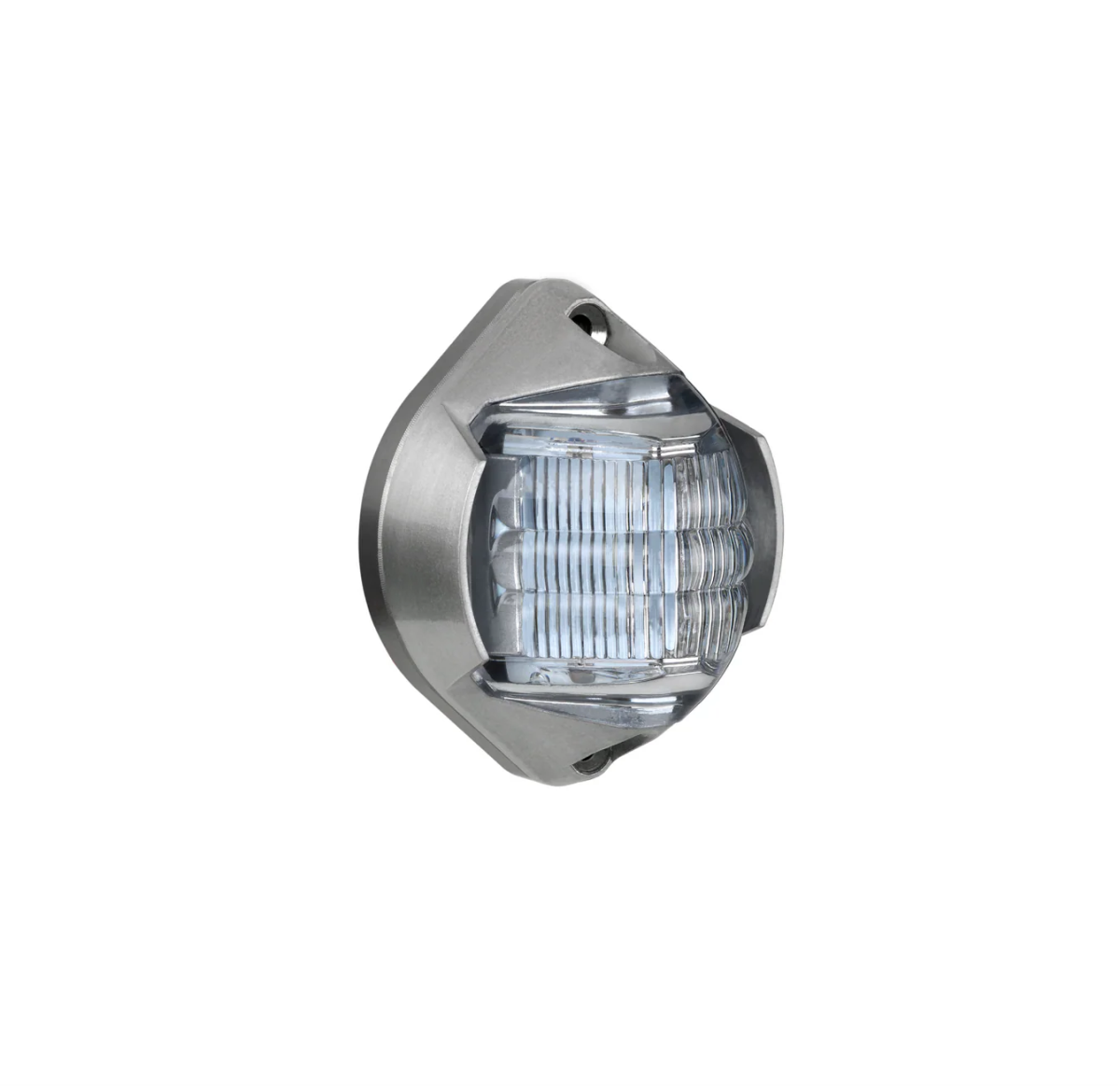

AeroLEDs Suntail Certified LED Position & Anti-collision Tail Light

CERTIFIED – LED POSITION & ANTI-COLLISION TAIL LIGHT

The SunTail is a high-performance LED light designed specifically for the tail of the aircraft, combining anti-collision strobe and position light functionality. It integrates seamlessly with other AeroLEDs products, offering strobe synchronization for enhanced visibility and safety.

Designed for easy installation, the SunTail features a horizontal mount that retrofits legacy lighting footprints without requiring an external power supply. The light meets and exceeds TSO-C30c Type III and TSO-C96a Class II standards, ensuring compliance and reliability.

Key Features:

• Two-in-One Design: Anti-collision strobe and position light for tail installations.
• Power Options: Compatible with 12V and 24V systems.
• Energy Efficient: Low power consumption with no external power supply needed.
• Strobe Synchronization: Seamlessly integrates with other AeroLEDs products.
• Easy Installation: Simple drop-in replacement. Horizontal mount option available for purchase separately.
• Certified for Safety: FAA-TSO/STC approved.

Tech Specs

• Current Draw :
  • 14VDC: Position Light: 0.4 Amps | Anti-Collision Light 0.52 Amps (Average) | 4.0 Amps (Peak)
  • 28VDC: Position Light: 0.2 Amps | Anti-Collision Light 0.26 Amps (Average) | 2.0 Amps (Peak)

• Weight: 0.16 lbs.
• Length: 2.2″ Width: 1.7″ Depth: 1.3″

• Installation Manual
• Part 23 STC/AML SA04837NY
• TSO
