AF8 Tool Kit | M22520/1-02 to M22520/1-18 Turret Heads, G125 Go/No-Go Gage
$3,550.05
The DAK12A insertion tool is designed to install size 12 pins & sockets into connector housings. M81969/17-05 REV A

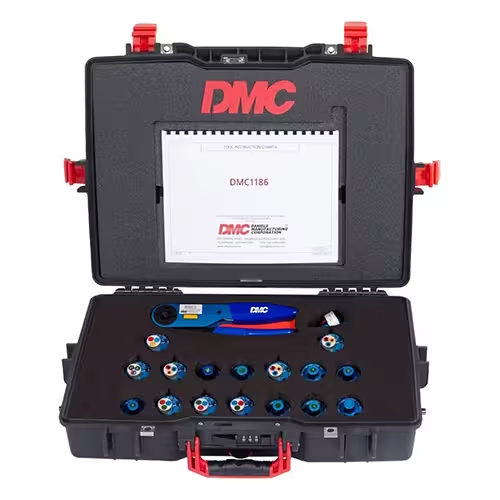

The DMC1186 kit provides the information and accessories necessary to use an AF8 (M22520/1-01) Standard Adjustable Crimp Tool and included accessories for crimping size 12 to 26 electrical contacts. The AF8 gives a Mil-Standard 8 impression crimp, which assures maximum tensile strength. The cycle controlled precision ratchet assures consistently accurate crimps every time. The tool frame has a built-in 8 step selector knob for ease in dialing the correct crimp depth setting for the wire being used.
Features
Kit Includes:
- 1 AF8 Crimp Tool
- 8 Turret Heads (TH1A, TH4, TH163, TH199S, TH270, TH285, TH286, TH343-1)
- 8 Single Position Heads (TP45, TP85, TP360, TP365, TP465, TP485, TP513, TP651)
- 1 Universal Turret Head (UH2-5)
- 1 Inspection Gage (G125)
- 1 Hex Wrench
Specifications
-
Specification Weight: DMC1186 Kit : 13 lb AF8: 1.25 lb
-
AF8 Dimensions: 9.75 x 2.5 x 1.25 in
-
Wire Range: 12–26 AWG
| Weight | .1 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
| Brand | Daniels Mfg |
