A&P Bundle – with Stratus ESG
25
Items sold in last 13 days
6
People watching this product now!
Description

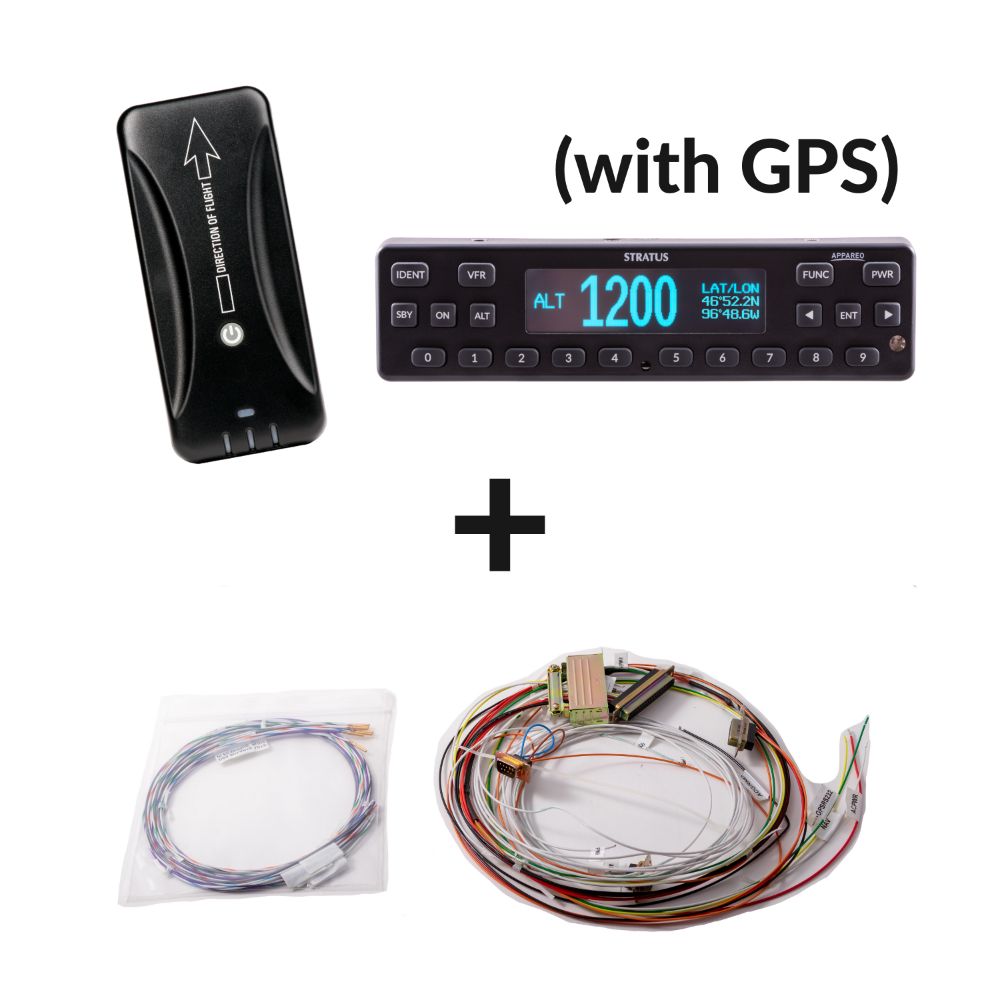

Bundle includes: Stratus ESG Kit, Stratus 3i Kit, Wiring Harness
Parts Included with Transponder
| Part Number | Description | Quantity |
| 153010-000019 | Installation Kit, Stratus ESG | 1 |
| 153510-000015 | Assy, Backplate, Stratus ESG | 1 |
| 153540-000027 | Installation Rack, Stratus ESG | 1 |
| 252005-000023 | RAMI AV-801 WAAS GPS Antenna | 1 |
Parts List for Stratus 3i Kit
| Part Number | Description | Quantity |
| 153010-000063 | Stratus 3i Final Assembly | 1 |
| 251015-000078 | CON PM BNC Jack to Blind Mate Adapter | 1 |
| 251015-000094 | CON 9 Pin DSUB with Mounting Hardware | 1 |
| 253030-000008 | MS-151 to BNC Cable – 5 ft | 1 |
| 353050-000013 | ESG, Right Angle USB Type C to 9 Pin D-Sub, 5 ft | 1 |
| 353070-000008 | Stratus Window Mount Clip | 1 |
Parts List for Wiring Harness
| Part Number | Description | Quantity |
| 353050-000064 | Universal Stratus XPDR Wiring Harness | 1 |
Additional information
| Weight | 7.4 lbs |
|---|---|
| Dimensions | 22 × 10 × 6 in |
Additional information
| Weight | 0.1 lbs |
|---|---|
| Dimensions | 0.1 × 0.1 × 0.1 in |
| Brand |
Appareo |
