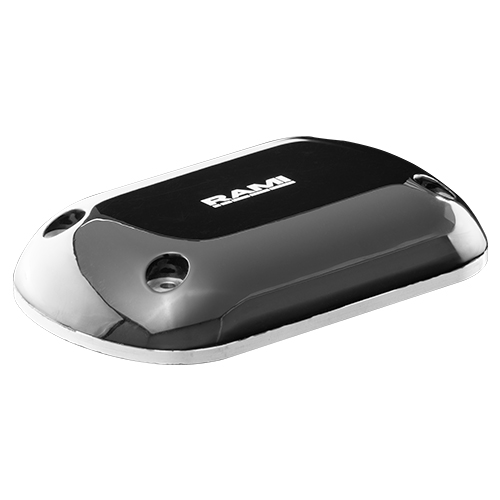

AV-801 Shadow Line WAAS GPS Antenna | 1575 MHz, Gloss Black
$423.00
The AV-801 GPS antenna is designed specifically to meet FAA TSO-C190 specifications. Qualification testing includes meeting the requirements of RTCA DO-301 and DO-160G. The mounting footprint matches the standard ARINC found on many general aviation aircraft up to and including business jets.
This AV-801 Shadow Line WAAS GPS antenna comes with a gloss black finish.
Features
- 1575.42 ± 10.23 MHz frequency
- 50 Ω impedance
- RHCP polarization
- Hemispherical radiation pattern
- TNC female connector
- Gloss black finish
- Designed specifically to meet FAA TSO-C190 specifications
- Backed by the RAMI Limited Lifetime Warranty
Specifications
Max Weight:
5.0 oz
Application:
Most aircraft up to and including business jets
Frequency:
1575.42 ± 10.23 MHz
VSWR:
1.5:1 Maximum
Polarization:
RHCP
Radiation Pattern:
Hemispherical
Impedance:
50 Ohms Nominal
Gain:
26.5 – 30.5 dB
DC Voltage:
4.5 to 14.5 VDC
DC Current:
40mA Typ. / 60mA Max
Noise Figure:
2.5 dB
Selectivity:
1315 – 1504.42 MHz -50 dB
1625.42 – 2000 MHz -50 dB
Connector:
TNC Female
Finish:
Gloss Black
FAA Approval:
TSO-C190
| Weight | 0.1 lbs |
|---|---|
| Dimensions | 0.1 × 0.1 × 0.1 in |
| Brand | RA Miller Industries |
