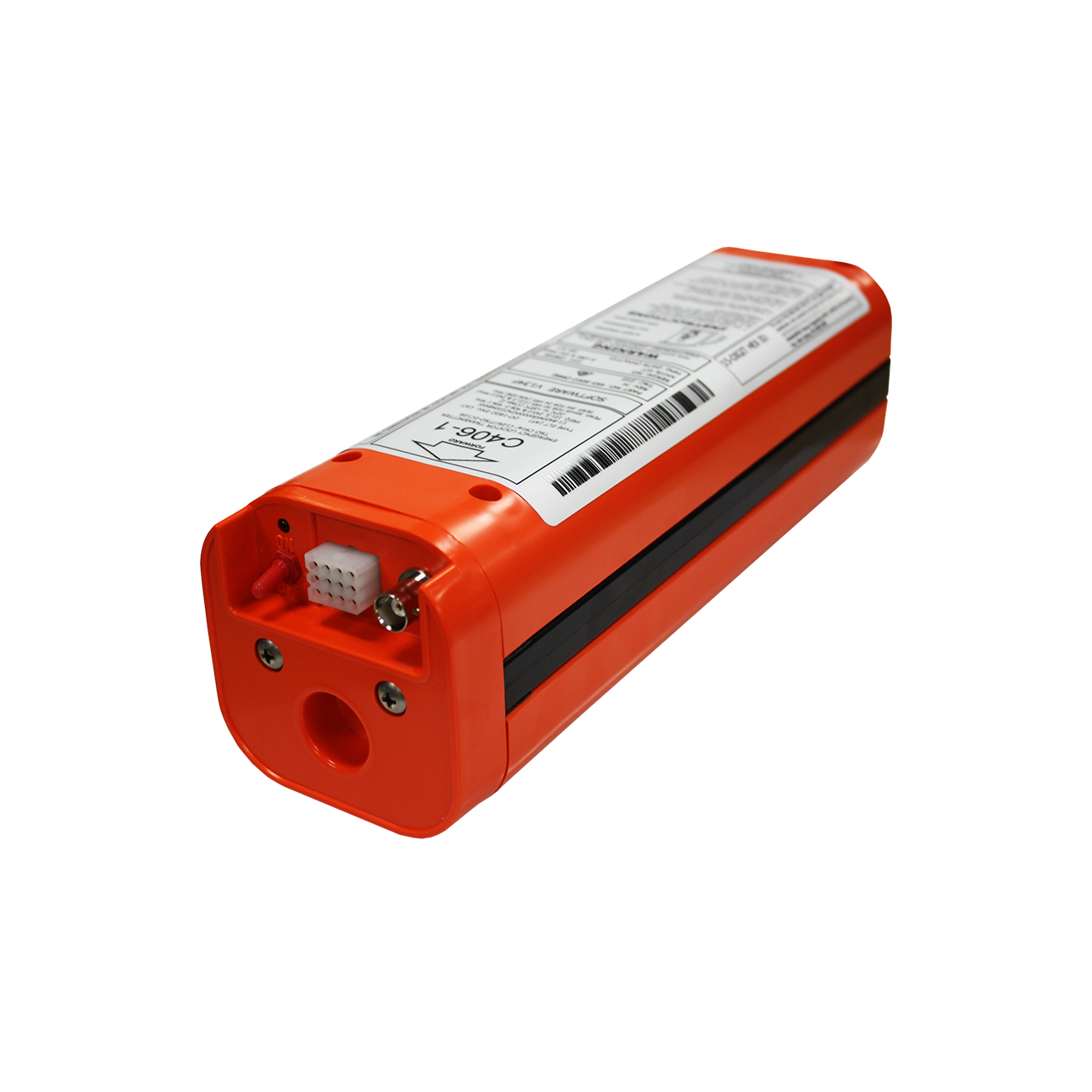

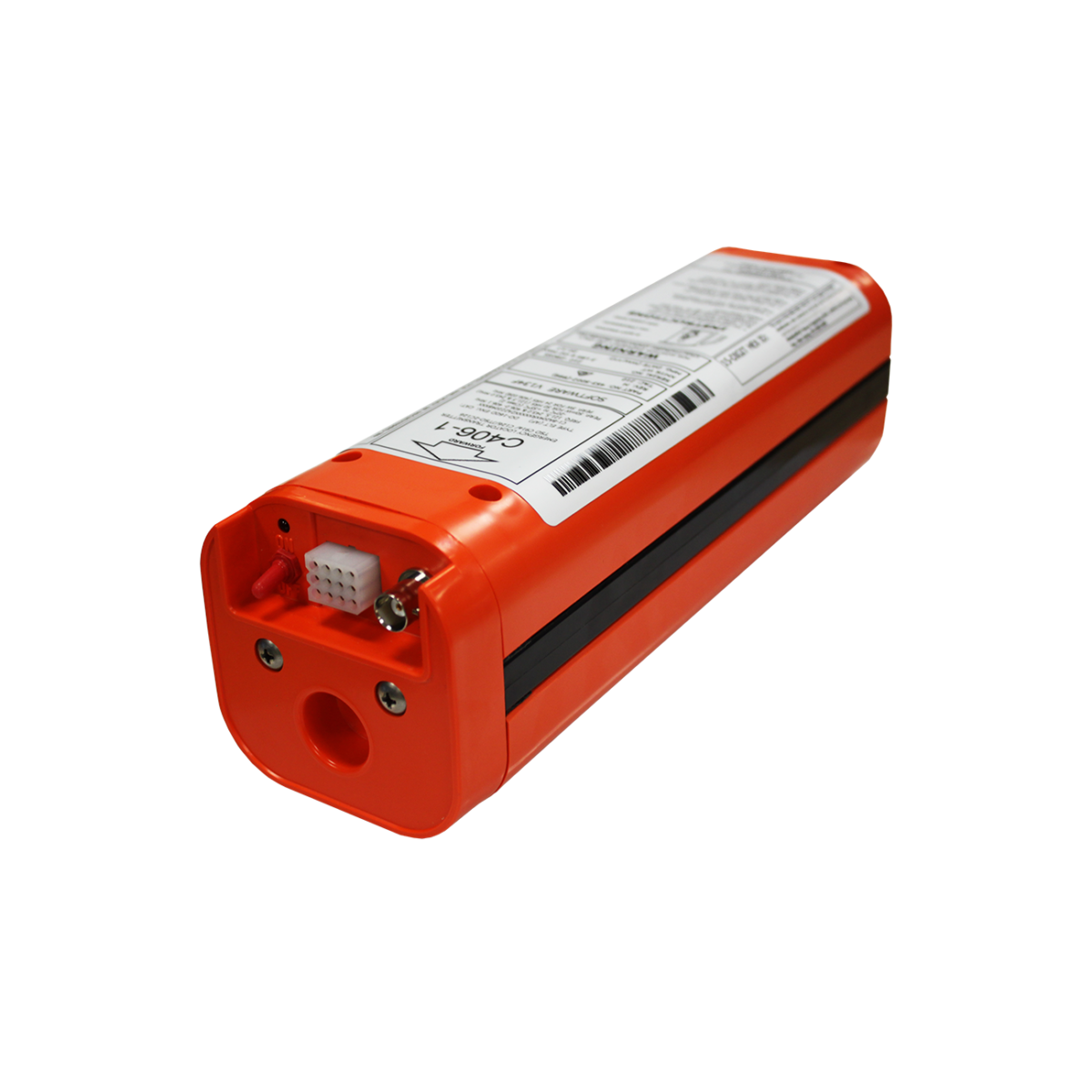

C406-1 HM
Hazmat charges may apply
The Artex C406-1 HM transmits on all 3 emergency frequencies (121.5/243.0 and 406 MHz). The ELT automatically activates during a crash and transmits the standard swept tone on 121.5 and 243.0 MHz. It also transmits a 406 MHz encoded digital message to the Cospas/Sarsat satellite system, which allows for rapid identification and reduces Search and Rescue response time.
The C406-1 HM has been tested to meet the rigorous requirements of TSO C126 including 500 G shock, 1000 pound crush as well as flame and vibration tests. The C406-1 HM is available for use with Artex’s low cost whip antennas, rod antenna or a blade antenna. The C406-1 HM may be interfaced with the optional Artex ELT/NAV Interface enabling latitude and longitude data to be transmitted as part of the 406 MHz message. The C406-1 HM uses a single coax cable to accommodate all three frequencies. The C406-1 HM ELT is available for fixed wing with a single-directional G-Switch and helicopter (HM) applications with a multi-axis G-Switch.
Immediate Search and Rescue response with completed registration
- Operating on 121.5, 243, and 406 MHz frequencies
- Worldwide coverage
- Compatible with ELT to Navigation Interface
- 5-year battery life (Replacement Battery Part No. 452-0133)
ARTEX ELTs are the choice of rotorcraft aircraft including Sikorsky, Airbus Helicopters, AgustaWestland and Bell.
Certifications
- TSO C126
- ETSO 2C126
- Cospas/Sarsat Approved
- Transport & Industry Canada Approved
Specifications
| Model | C406-1 HM (Helicopter Model) |
| Antenna Options Available | Rod: 110-338, Blade: 110-340 |
| Operating Frequencies | 406 MHz, 121.5 & 243. MHz +/- 0.005% (A3X) |
| Ouput Power | 406 MHz: 5 W +/- 2 dB (520 ms / 50 sec) for 24 hours @ -20°C, 121.5/243.0 MHz: 100 mW minimum (+20 dBm) for 50 hours @ -20°C |
| Output Connector | BNC Female (121.5/243.0/406 MHz) |
| Activation | Automatic by 4.5 feet per second (2.3G) Primary G-Switch, or 12.5 G (+/- 1 G) 5-Way HM G-Switch or Manual Activation |
| Battery | 5 year Lithium (LiMnO2, solid cathode), Replacement Battery Part No. 452-0133 |
| Temperature Certified to: | Operating: -20°C to +55°C, Storage: -55°C to +85°C |
| Self Test | G-Switch Enabled, 406 MHz Power, Antenna/Coax Connection, Position Data Present, Low Battery |
| Remote Switch | ON/ARM |
| Weights (with tray) | ELT Transmitter: 3 lb 5.8 oz Maximum (1.53 kg), Mounting Tray: 7 oz (200 g), Total Weight: 4 lb 11 oz (2.02 kg) |
| Measurements | ELT Transmitter with mounting hardware installed 11.74” (298 mm)L x 3.9: (99 mm)H x 3.82” (97 mm)W |
| Weight | 0.1 lbs |
|---|---|
| Dimensions | 0.1 × 0.1 × 0.1 in |
| Brand | ACR Artex |
