C406-1
$6,177.40

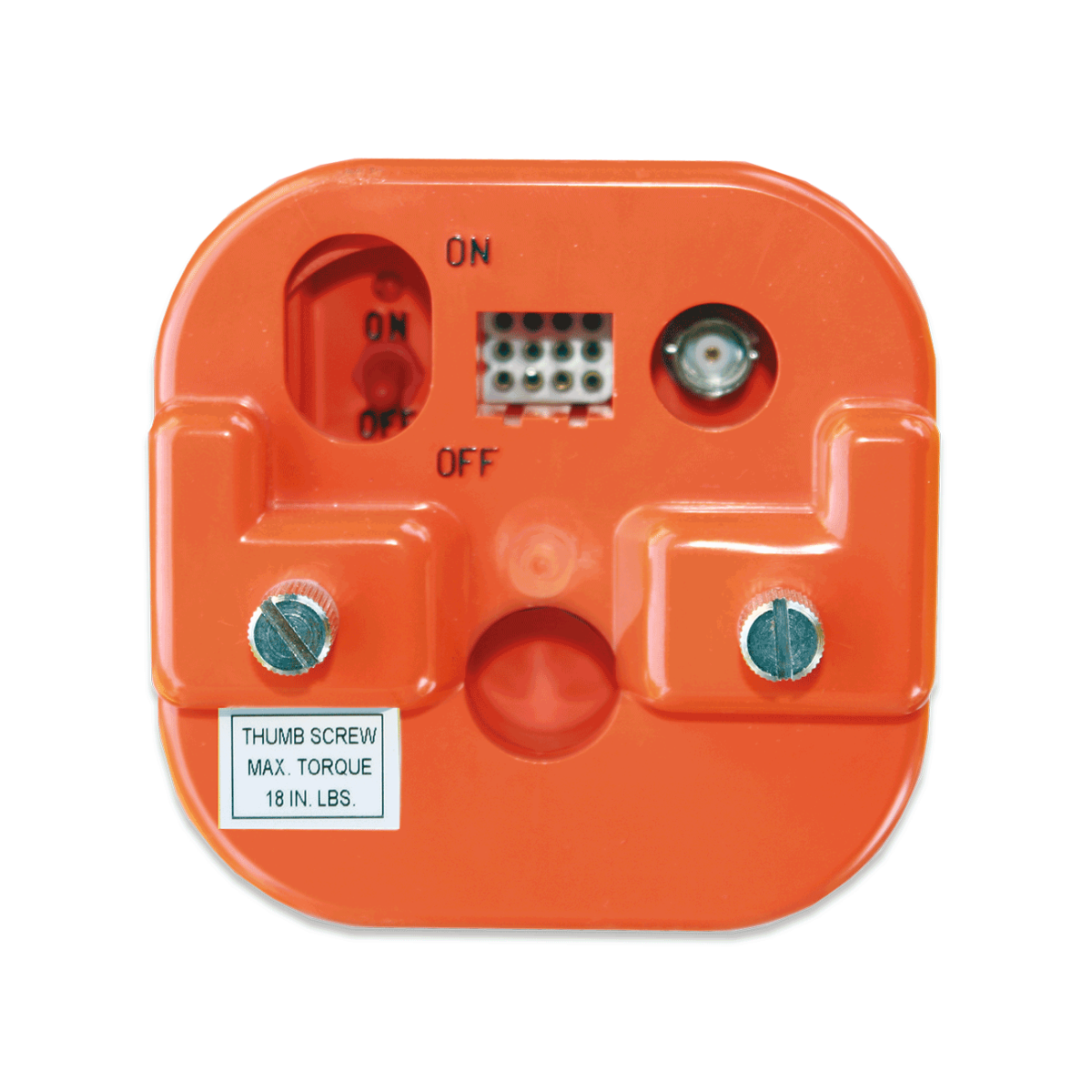

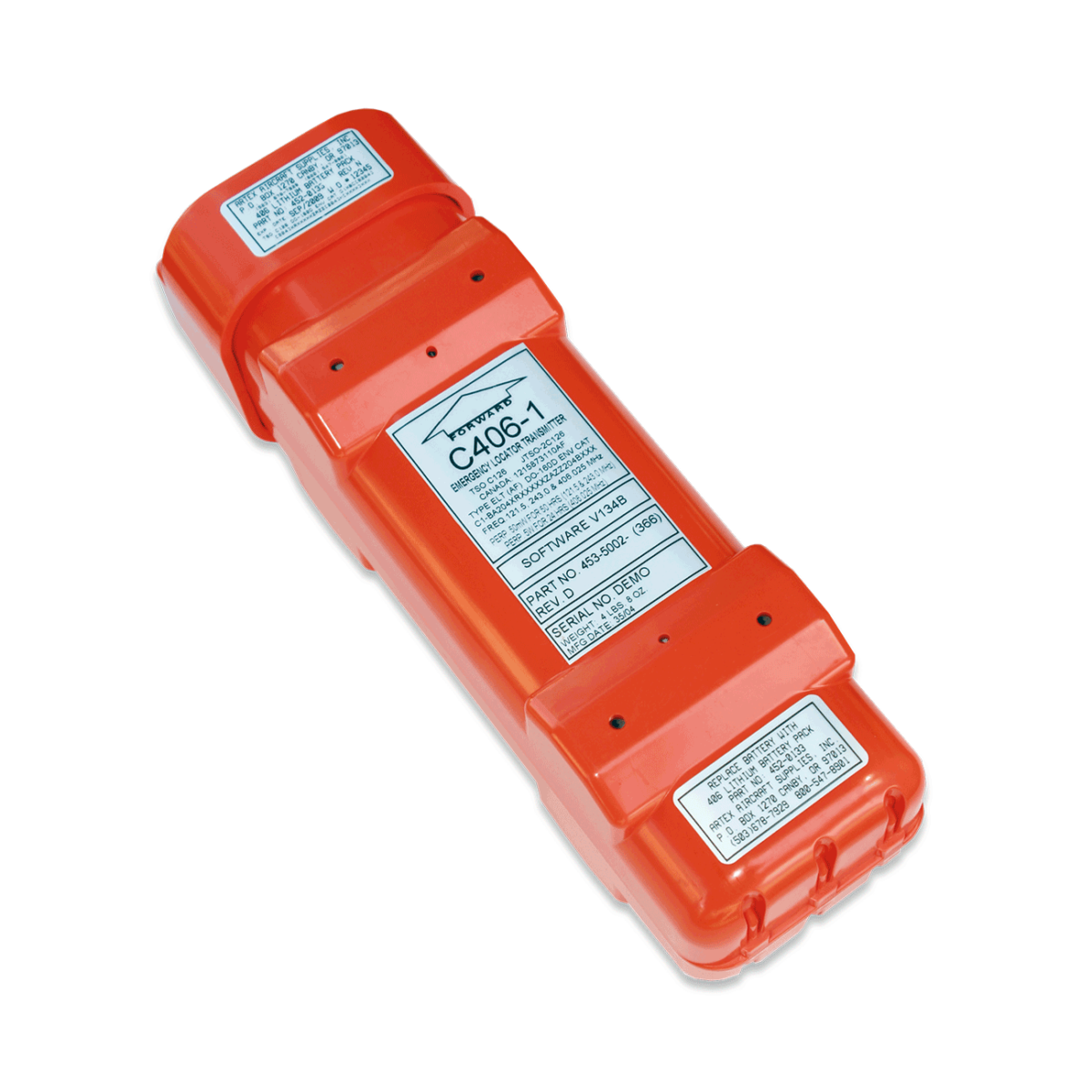

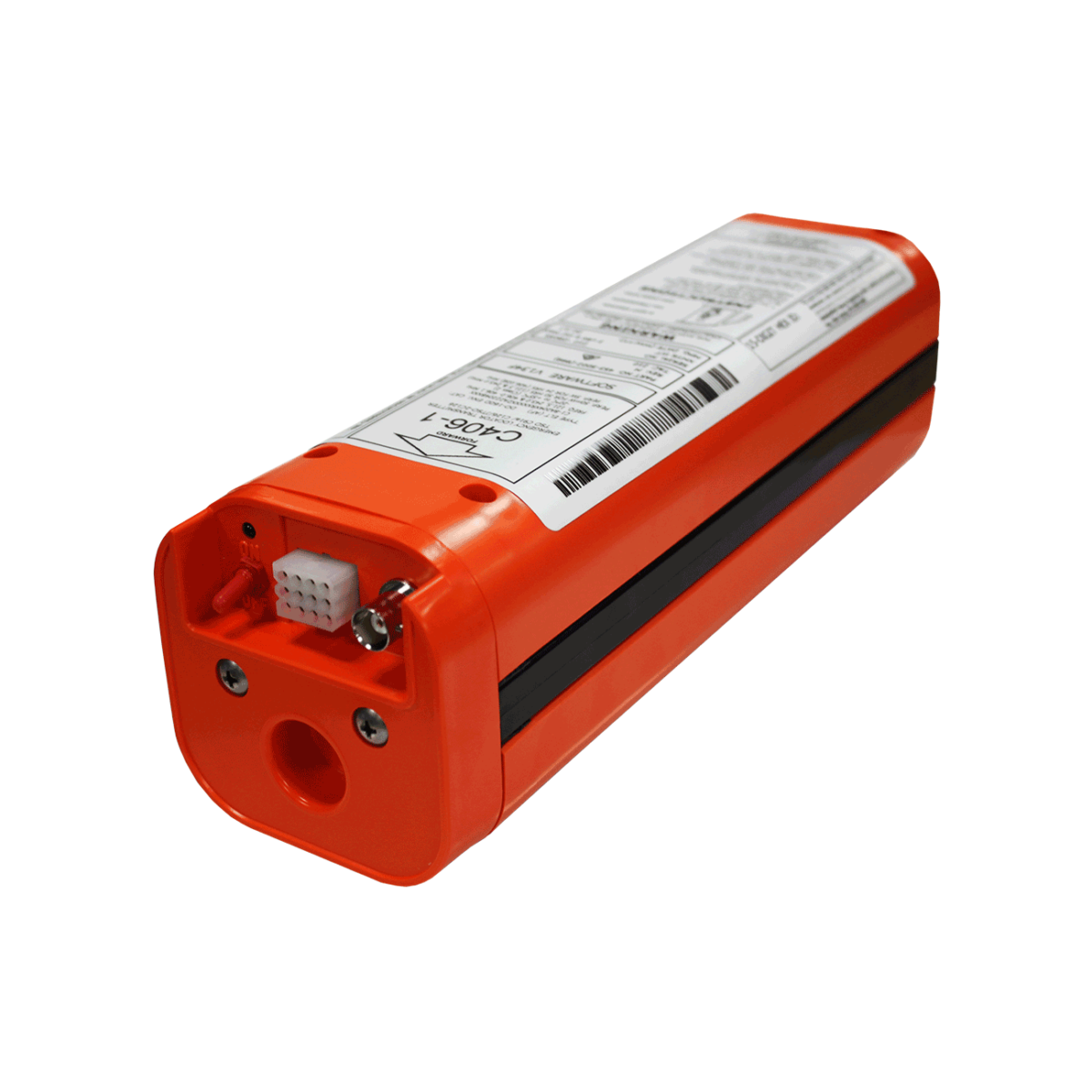

The Artex C406-1 is an emergency locator transmitter (ELT) that has been built to meet the rigorous requirements of TSO C126, and pass even the toughest safety tests. The C406-1 ELT automatically activates during a crash, and transmits a 406 MHz digital message to a worldwide network of satellites, which allows first responders to quickly and accurately identify not only where you are, but who you are as well. These factors help take the ‘search’ out of ‘search and rescue’, and allow local first responders to more easily bring you home.
The Artex C406-1 is an emergency locator transmitter (ELT) that has been built to meet the rigorous requirements of TSO C126, and pass even the toughest safety tests. The C406-1 ELT automatically activates during a crash, and transmits a 406 MHz digital message to a worldwide network of satellites, which allows first responders to quickly and accurately identify not only where you are, but who you are as well. These factors help take the ‘search’ out of ‘search and rescue’, and allow local first responders to more easily bring you home.
The C406-1 has been tested to meet the rigorous requirements of TSO C126 including 500 G shock, 1000 pound crush as well as flame and vibration tests. The C406-1 is available for use with Artex’s low cost whip antennas, rod antenna or a blade antenna. The C406-1 may be interfaced with the optional Artex ELT/NAV Interface enabling latitude and longitude data to be transmitted as part of the 406 MHz message. The C406-1 uses a single coax cable to accommodate all three frequencies. The C406-1 ELT is available for fixed wing with a single-directional G-Switch and helicopter (HM) applications with a multi-axis G-Switch.
ARTEX ELTs are the choice of commercial aircraft including Boeing, Bombardier and Embraer and business Jets including Cessna, Beechcraft, Quest, Gulfstream and Embraer.
Immediate Search and Rescue response with completed registration
- Operating on 121.5, 243, and 406 MHz frequencies
- Worldwide coverage
- Compatible with ELT to Navigation Interface
- Helicopter Model Available (453-5003)
- 5-year battery life (Replacement Battery Part No. 452-0133)
Certifications
- TSO C126
- ETSO 2C126
- Cospas/Sarsat Approved
- Transport & Industry Canada Approved
Specifications
| Model | C406-1 |
| Antenna Options Available | Rod: 110-338; Blade: 110-340 |
| Operating Frequencies | 406 MHz, 121.5 & 243. MHz +/- 0.005% (A3X) |
| Ouput Power | 406 MHz: 5 W +/- 2 dB (520 ms / 50 sec) for 24 hours @ -20°C, 121.5/243.0 MHz: 100 mW minimum (+20 dBm) for 50 hours @ -20°C |
| Output Connector | BNC Female (121.5/243.0/406 MHz) |
| Activation | Automatic by 4.5 feet per second (2.3 G) Primary G-Switch or Manual Activation |
| Battery | 5 year Lithium (LiMnO2, solid cathode), Replacement Battery Part No. 452-0133 |
| Temperature Certified to: | Operating: -20°C to +55°C, Storage: -55°C to +85°C |
| Self Test | G-Switch Enabled, 406 MHz Power, Antenna/Coax Connection, Position Data Present, Low Battery |
| Remote Switch | ON/ARM |
| Weights (with tray) | ELT Transmitter: 3.16 lbs (1.43 kg), Mounting Tray: 1.08 lbs (448 g), Total Weight: 4.24 lbs (1.9 kg) |
| Measurements | ELT Transmitter with mounting hardware installed 11.74” (298 mm)L x 3.9: (99 mm)H x 3.82” (97 mm)W |
| Weight | 0.1 lbs |
|---|---|
| Dimensions | 0.1 × 0.1 × 0.1 in |
| Brand | ACR Artex |
