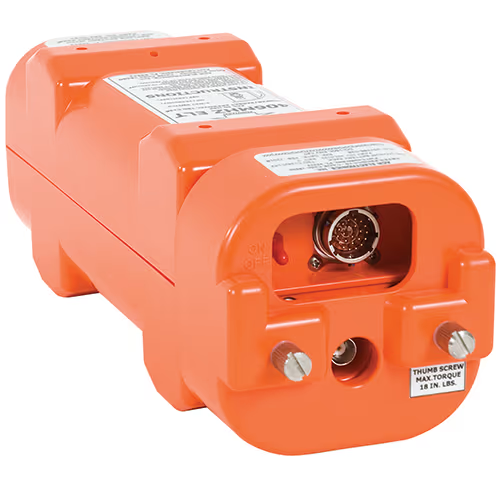

C406-N HM ELT System | Single Output, Nav, Helicopter

Weight:
3.16 lb (1.43 kg), ELT transmitter
4.24 lb (1.9 kg), total weight with mounting frame assembly

Dimensions:
11.74 x 3.9 x 3.82 in, with mounting hardware installed

Model:
C406-N HM

Antenna:
Not included

Operating Frequencies:
406 MHz, 121.5 MHz, 243 MHz ±0.005% (A3X)

Output Power:
406 MHz: 5W (520 ms/50 sec) for 24 hours @ -20°C to 55°C
121.5/243.0 MHz: 100 mW min (+20 dBm) for 50 hours @ -20°C to 55°C

Output Connector:
BNC Female (121.5/243.0/406 MHz)

Activation:
Automatic by 4.5 feet per second (2.3 G) Primary G-Switch or 12.5 G (+/- 1 G) 5-Way HM G-Switch or Manual Activation

Battery:
5-year Lithium (LiMnO2, solid cathode), Replacement Battery Part No. 452-0133

Temperature Certified to:
Operating: -20°C to 55°C, Storage: -55°C to 85°C

Remote Switch:
Not included
