CM-S-389T MIL-DTL-26500 and 83723 Series III Adapter Tool Set | Plugs, Shell Sizes 8–28
The central element of the DMC Beta connector accessory tool product line is the adapter tool. This unique device is configured in such a manner as to mate perfectly with the corresponding circular connector keying pattern.

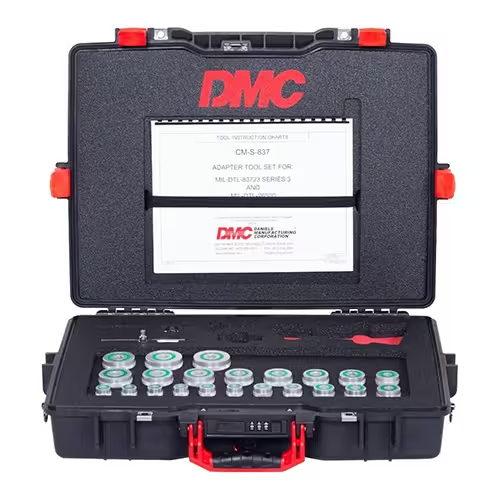

This Adapter Tool Set is for MIL-DTL-26500 and MIL-DTL-83723 Series 3 plugs. There are 22 adapter tools in this set and it covers shell sizes 8–28.
Contact Cost Aero at 855-500-3044 for pricing
Features
- For MIL-DTL-26500 and MIL-DTL-83723 Series 3 plugs
- Includes 22 adapter tools, shell sizes 8–28
Specifications
-
Weight: 7.56 lbs
-
Connector Type: Plugs
-
Adapter Shell Sizes: 8–28
-
Adapter Dimensions: 8: 1.50 x 0.53 x 0.81 10: 1.50 x 0.64 x 0.88 12: 1.50 x 0.82 x 1.00 14: 1.50 x 0.88 x 1.13 16: 1.50 x 1.00 x 1.25 18: 1.50 x 1.12 x 1.36 20: 1.50 x 1.25 x 1.50 22: 1.50 x 1.37 x 1.63 24: 1.50 x 1.50 x 1.75 28: 1.50 x 1.74 x 2.00
-
Adapter Driver Dimensions: 0.25 in (8, 10); 0.375 in (12, 14, 16, 18, 20, 22, 24, 28)
-
Adapter Keying Positions: 8A: N, 8, 9 8B : 6, 7 8C : N, 8, 9 8D : 6, 7 10A : N, 8, 9 10B : 6, 7, 10 12A : N, 6, 8 12B : 7, 9, 10 14A : N, 6, 8 14B : 7, 9, 10 16A : N, 6, 8 16B : 7, 9, 10 18A : N, 6, 8 18B : 7, 9, 10 20A : N, 6, 8 20B : 7, 9, 10 22A : N, 6, 8 22B : 7, 9, 10 24A : N, 6, 8 24B : 7, 9, 10 28A : N, 6, 8 28B : 7, 9, 10
| Weight | .1 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
| Brand | Daniels Mfg |
