Die Set- .095″/.100″ Confined Crescent – Equivalent to TE 58630-1 – Use with EMC3300
$1,000.00
- Equivalent to TE 58630-1 tool for ULTRA-FAST 12-10 Terminals

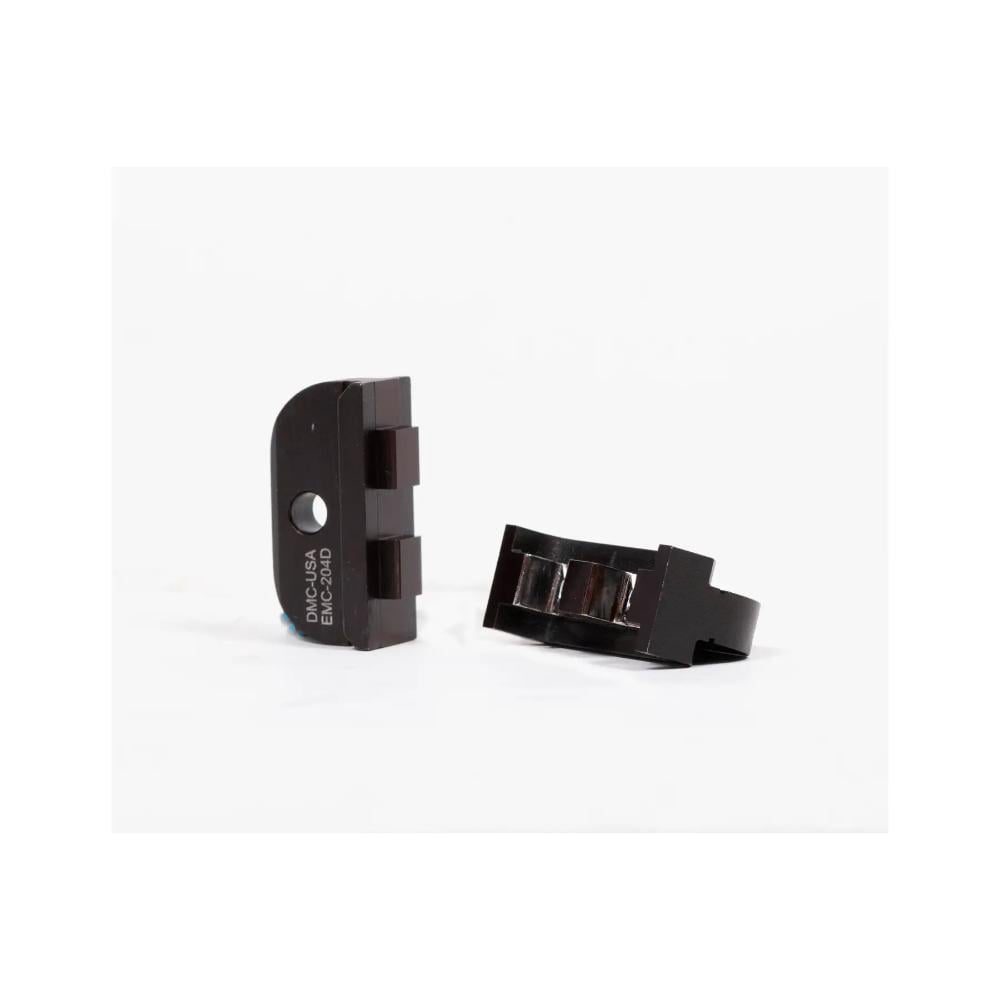

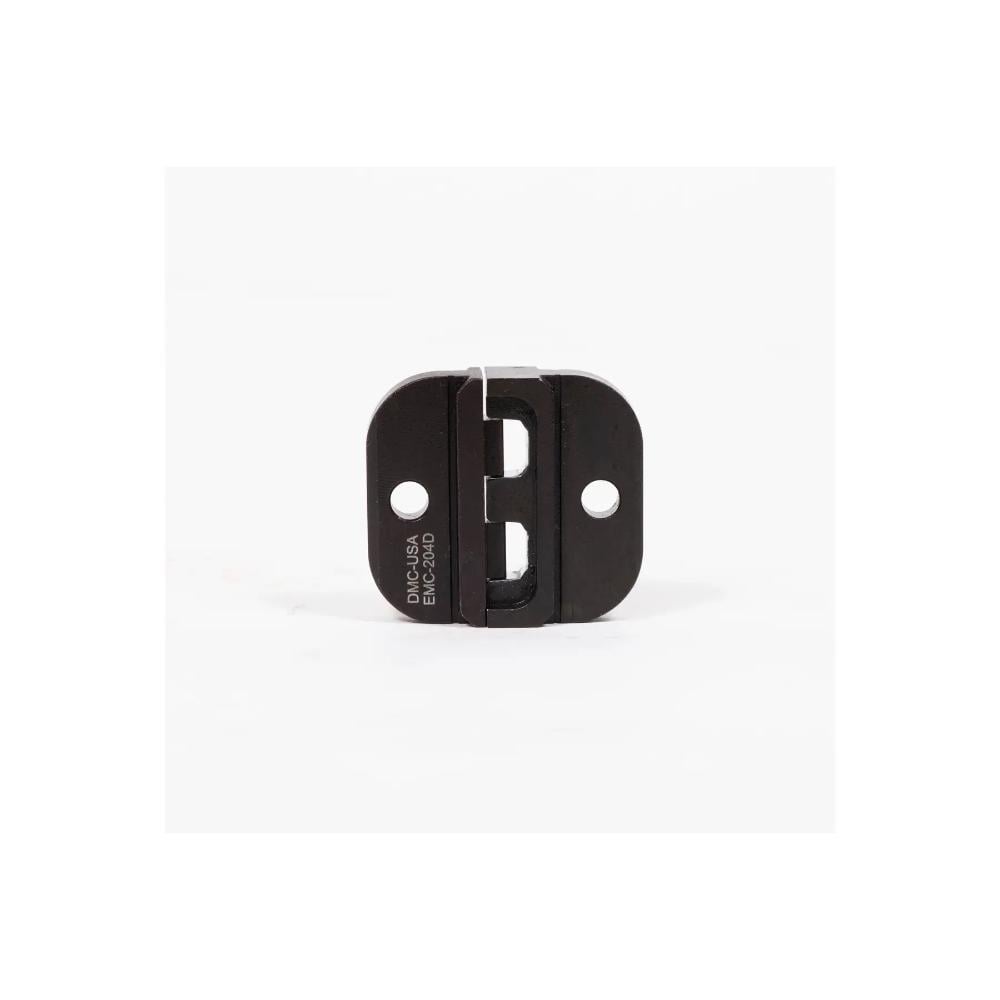

The EMC-204D die set is designed for use with the EMC3300 electromechanical crimp tool. This die set features confined crescent cavities sizes .095″ & .100″. The EMC-204D die set is functionally equivalent to the TE 58630-1 tool for ULTRA-FAST 12-10 Terminals .
The AWG for cavities A & B are: A. 12, B. 10
The DMC gages for cavities A & B are: A. G1146, B. G1189
| Weight | .1 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
| Brand | Daniels Mfg |
