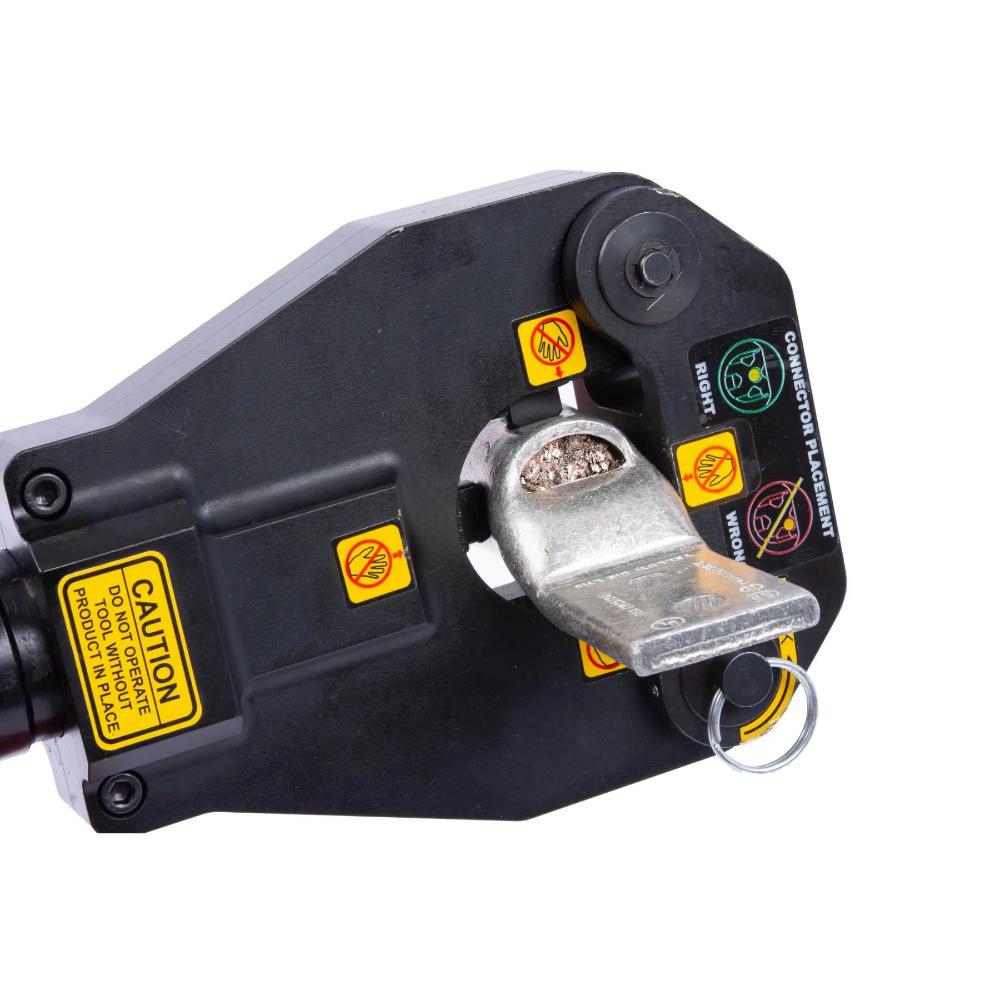

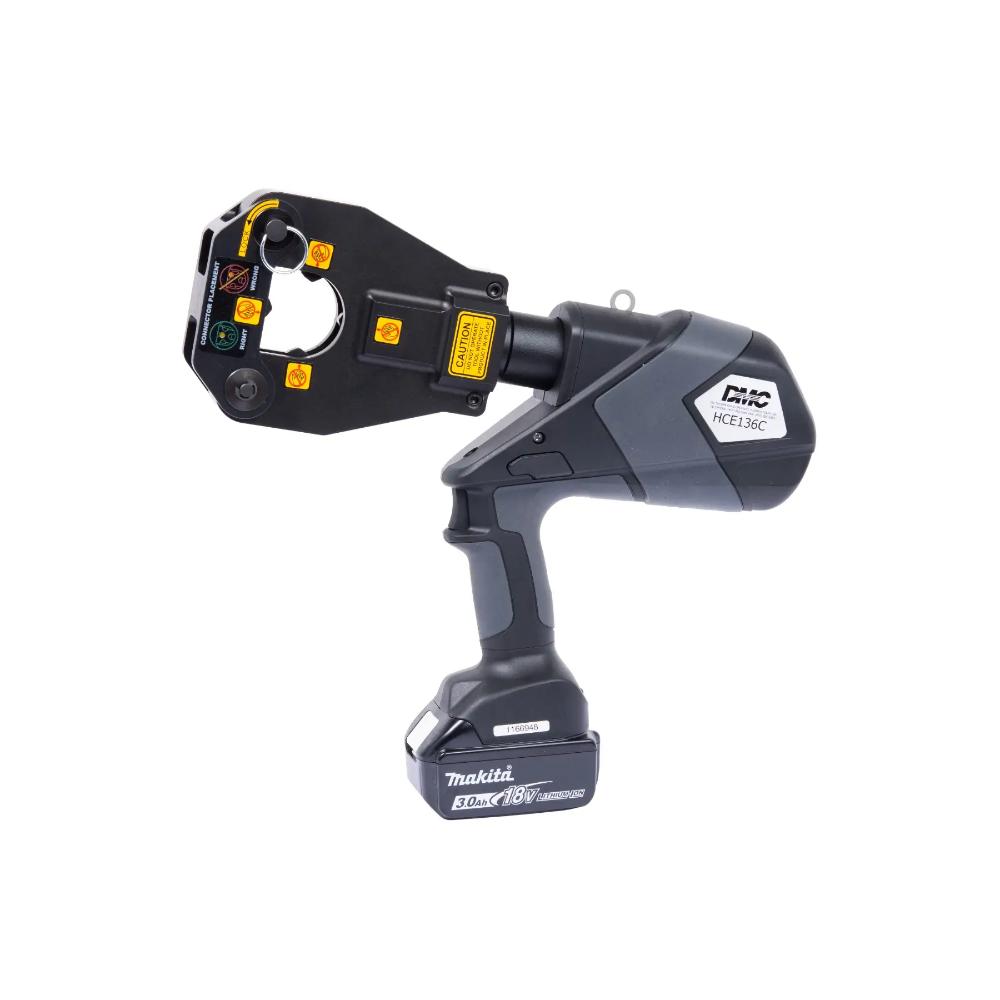

Dieless 4 Indent Battery Crimp Tool

FEATURES

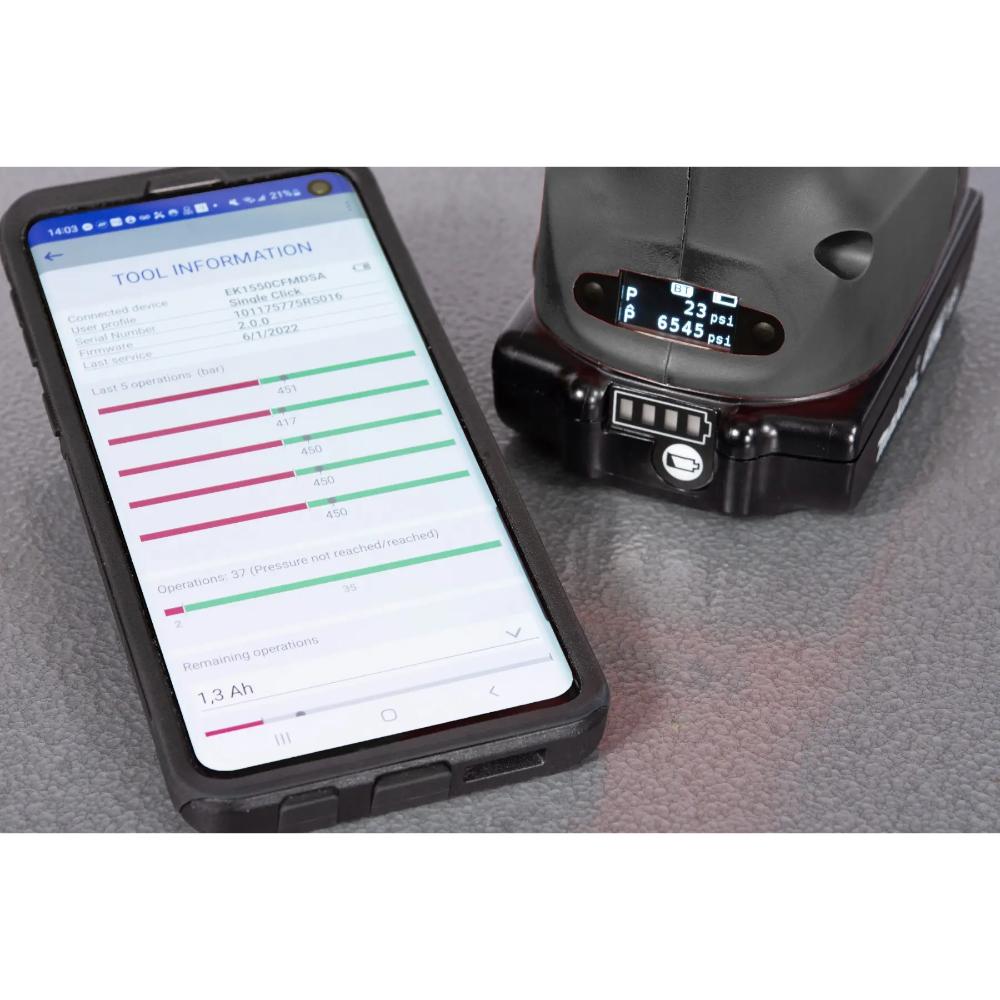

•Bluetooth® connectivity;
• Tracks the number and quality of crimps;
• Ergonomic design allows one-handed operation;
• Automatically opens when crimp is complete;
• Can be released in mid-cycle to adjust terminal/contact
• Head rotates 360º

CRIMP CAPABILITIES

•8 to 750 MCM on copper and aluminum;
• Max. Crimp Force: 6 tons (58.83 kN);
• Avg. Crimp Time: 2 seconds;
• Avg. Crimps per Charge: 150

SPECIFICATIONS

L x W x H: 15.5 x 3 x 13.5 (in) 394 x 77 x 343 (mm);
• Weight (with battery): 11.6 lb (5.3 kg);
• Sound Level: 75 dB (A) at 1 meter;
• Vibration: <8.2 ft/s2 (2.5 m/s2);
• Hydraulic Oil: Shell Tellus® T-15

DMC also offers a hydraulic version HC136 and a remote hydraulic head XHC136.

INCLUDED;
•• Carrying case;
•• Two 18V, 3.0 AMP batteries;
•• One battery charger;

FEATURES;
•• Bluetooth® connectivity;
•• Tracks number and quality of crimps;
•• Ergonomic design allows one-handed operation;
•• Automatically opens when crimp is complete;
•• Can be released in mid-cycle to adjust terminal/contact;
•• Head rotates 360º;

BATTERY (Part # HDE-LI-B);
•• 18 VDC, Lithium Ion, 3.0 AMP;
•• Charging Time: 45 minutes;

OPTIONAL EXTENDED LIFE BATTERY;
•(Part # HDE-LI3-B);
•• 18 VDC, Lithium Ion, 3.0 AMP;
•• Charging Time: 30 minutes;

BATTERY CHARGER;
•• 120 VAC Part # HDE-LI-120C;
•• 230 VAC Part # HDE-LI-230C;

VAC POWER ADAPTERS;
•• 120 VAC Part # HDE-120AC-A;
