New
DMC123 Maintenance Kit For Electrical Connectors and Wiring Systems | MIL-T-83507/8-01

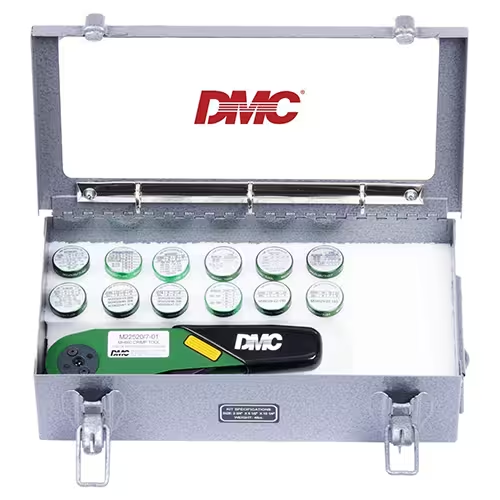

The DMC123 tool kit contains the MH860 tool frame, tool gage, and all mil-spec positioners. Also included in the DMC123 are tool instruction sheets and a tool selection chart. Qualified to MIL-DTL-22520/7, the DMC MH860 was developed to meet the demonstrated need for supporting the majority of electrical systems with one versatile crimp tool frame. The MH860 accepts the entire middle wire range of 16 through 28 AWG, with positioners which adapt it to virtually all applications consistent with others in the MIL-DTL-22520 family.
Contact Cost Aero at 855-500-3044 for pricing
3
Items sold in last 13 days
6
People watching this product now!
Description
Features
- Kit Includes:
- 1 MH860 Adjustable Middle Range 8 Indent Crimp Tool
- 12 Mil-spec Positioners
- 1 In-Service GO/NO-GO Inspection Gage
Specifications
-
Weight: 9 lb
-
Type of Case: Portable
-
Number of Cases: 1
-
Color: Grey
-
Type of Construction: Steel/Aluminum
-
Application: Crimp Tool Kit
-
Type of Inserts: Unicellular Polyethylene Foam with Die Cut Tool Cavities
Additional information
| Weight | .1 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
| Brand |
Daniels Mfg |
