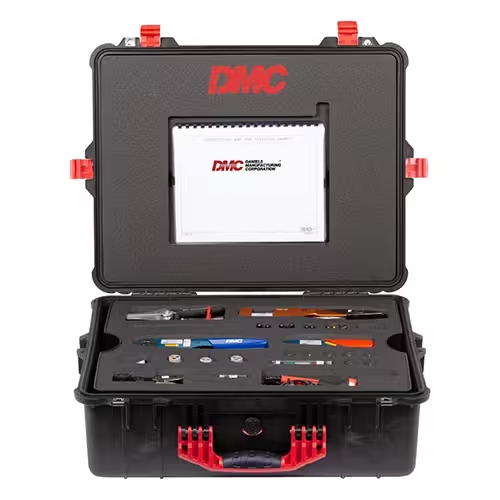

DMC1535 LAV-25 & LAV-AT Wiring System Maintenance Kit
The DMC1535 Light Armored Vehicle LAV-25 & LAV-AT Wiring System Maintenance Kit provides a turn-key solution and the tools necessary to strip, crimp, install and remove the typical contacts and terminals of this wiring system. The DMC1535 kit includes the tool to application cross-reference information that indicates the particular tool(s) that should be selected to repair a specific connector, contact, or terminal. In addition, the kit also contains illustrated operating instructions for the designated tooling.
Contact Cost Aero at 855-500-3044 for pricing
The DMC1535 Light Armored Vehicle LAV-25 & LAV-AT Wiring System Maintenance Kit provides a turn-key solution and the tools necessary to strip, crimp, install and remove the typical contacts and terminals of this wiring system. The DMC1535 kit includes the tool to application cross-reference information that indicates the particular tool(s) that should be selected to repair a specific connector, contact, or terminal. In addition, the kit also contains illustrated operating instructions for the designated tooling.
Features
- Kit Includes:
- 8 Crimp Tools
- 3 Turret Heads
- 5 Positioners
- 1 Single Position Head
- 4 Die Sets
- 11 Metal Insertion Tools
- 12 Metal Removal Tools
- 50 Plastic Insertion/Removal Tools
- 4 Contact Gages
- 2 Unwired Contact Removal Tools w/ Probes
- 1 Wire Cutter
- 2 Wire Strippers
- 4 In-Service Inspection Gages
- 1 Die Removal Tool
- 1 Hex Wrench
- 2 T-Handle Wrenches
- 11 Adapter Tools
- 1 Strap Wrench
- 6 Connector Wrenches
- 20 Socket Guide Pins
- 1 Heat Gun & Accessories
- DMC Connector Coverage:
- SAE-AS17143 Insulated Terminals
- SAE-AS20659 Non-Insulated Terminals
- SAE-AS25036 Insulated Terminals
- MS27142 Single Wire Connector
- MS27144 Single Wire Connector
- MIL-DTL-24308 D-SUB
- MIL-DTL-26482 Series II
- MIL-DTL-38999 Series I, III
- SAE-AS50151 3450 Series
- MIL-DTL-55302 PWB Connectors
- SAE-AS81824 Environmental Splices
- Amphenol 44 Series
- Deutsch DS Series
- Tyco/RaychemD-436 Series
| Weight | .1 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
| Brand | Daniels Mfg |
