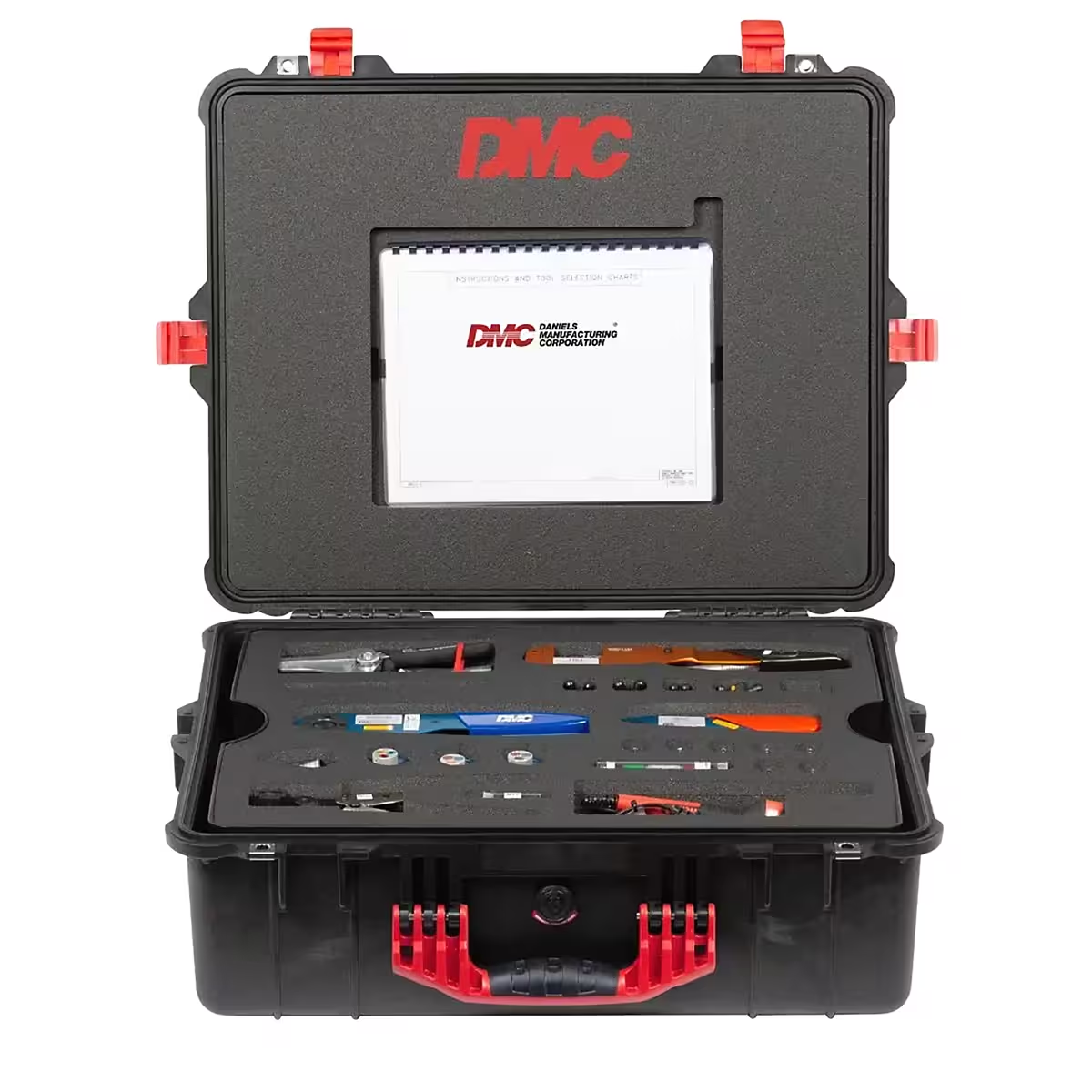

DMC2269 Wiring System Maintenance Kit | Bell 407GX

The DMC2269 kit supplies your staff with both the information and the tools necessary to make this type of repair to the Bell 407GX in the shortest time possible. The DMC2269 kit contains all of the tooling to connector, contact and terminal cross-reference information needed to support the Bell 407GX. In addition, the kit also contains illustrated operating instructions for the required tooling.

Features

• Kit Contents:
• 5 Crimp Tools
• 7 Turret Heads
• 13 Positioners
• 1 Single Position Head
• 1 Universal Turret Head
• 1 Universal Positioner
• 8 Die Sets
• 12 Metal Insertion Tools
• 12 Metal Removal Tools
• 45 Plastic Insertion/Removal Tools
• 4 Contact Gages
• 2 Unwired Contact Removal Tools w/ Probes
• 1 Die Removal Tool
• 1 9/64” Hex Wrench
• 1 In-Service Inspection Gage
• 1 Wire Harness Spoon
• 4 Modular Removal Tools
• DMC Connector Coverage:
• Amphenol “PT”
• Amphenol PCD “RSE”, “SJT”
• Artex Products
• Deutsch Terminal Junction Modules, ABC, CTJ
• ECS CBR, CBS, CTR, CTS
• Leach Relay Sockets
• Positronic GMCT
• Winchester MRAC
• MIL-R-6106 Relays
• SAE-AS7928 Insulated/Uninsulated Terminals
• MIL-DTL-12883 Relay Sockets
• MIL-DTL-24308 Rack and Panel
• MIL-DTL-26482 1, 2
• MIL-DTL-38999 1, 2, 3
• MIL-PRF-39012 RF and Coaxial
• SAE-AS50151 3450
• SAE-AS81714 2
• SAE-AS81824 Insulated Splices
• MIL-DTL-83723 3
