ELT 4000M HM Rod Pack | ELT, Antenna, Battery, Mounting Kit, Cover, Install Kit, Buzzer
$13,900.50

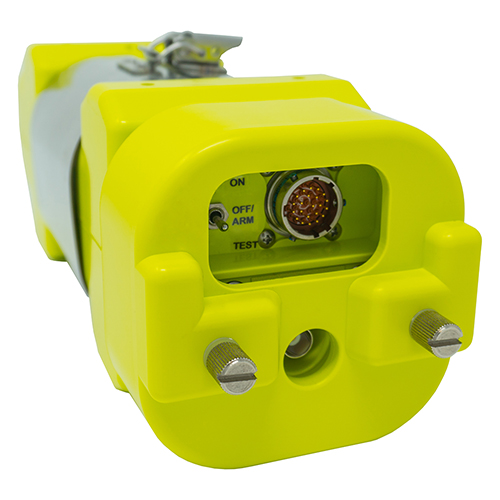

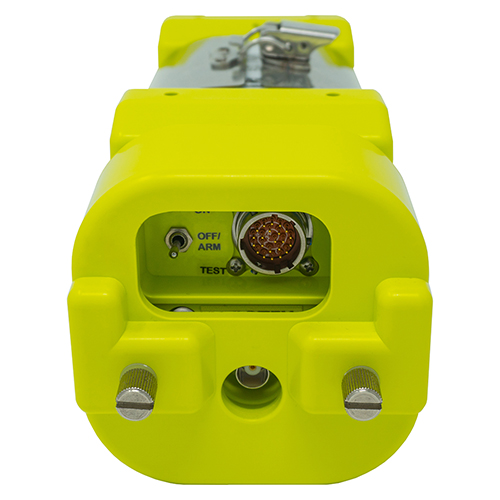

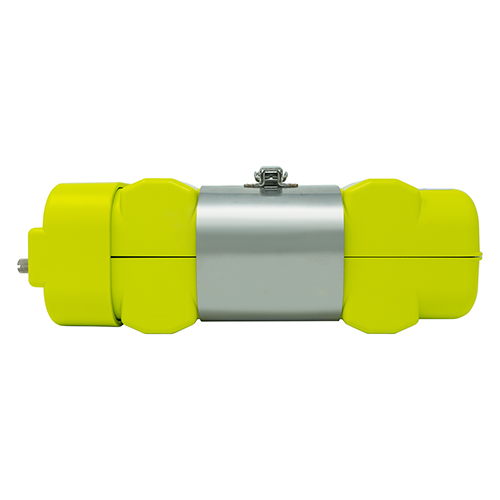

The all new ARTEX ELT 4000M HM is a 3 frequency transport-grade Emergency Locator Transmitter (ELT) for the rotorcraft market that utilizes alkaline batteries. This innovative power source means that the ELT 4000M HM is completely exempt from FAA special condition requirements. ARTEX ELT 4000M HM cost of ownership benefits include a lower battery expense per cycle, no hazmat shipping and easy disposal. An integrated NAV interface (ARINC429) omits the requirement and expense of installing a separate NAV interface unit.
The ARTEX ELT 4000M HM can be activated manually (via cockpit remote switch) or automatically (the G-Switch senses a 2.3G or greater impact), and alerts the closest Search and Rescue agency of an emergency. The 406 MHz signal, containing the aircraft GPS coordinates, is transmitted to the Cospas-Sarsat satellites and relayed to the Mission Control Center where it is immediately routed to the nearest Search and Rescue agency. The beacon will provide first responders with the exact location to within 100 meters. Finally, the 121.5 and 243.0 MHz homing signals assist Search and Rescue ground forces with finding the location of the emergency.
The ARTEX ELT 4000M HM provides a quick-and-easy retrofit opportunity with flexible installation options such as a two-wire remote switch that does not require any aircraft power. Â ELT 4000M HM is TSO approved with Legacy Switch and Antenna Systems to facilitate retrofit. Because it is a single output ELT, the ARTEX ELT 4000M HM utilizes the same RF output and only one coax cable to transmit 406 MHz, 121.5 MHz, and 243.0 MHz signals. The built-in navigation interface reduces the need to mount a secondary external interface, greatly reducing the cost of installation. The mounting tray assembly matches the legacy ARTEX C and B Series ELT installation and thereby further reduces engineering costs.
This ELT 4000M HM Rod Pack includes the ELT 4000M HM unit with Battery, 110-338 Rod Antenna, 452-5066-1 Mounting Cap, 452-3052-1 Cover Assembly, 452-5050-1 Mounting Tray, 455-7422 Install Kit, 130-4004 Buzzer, A3-06-3043 Mounting Strap, and Y1-06-0313 Instruction Sheet
Features
- Automatic Fixed Emergency Locator Transmitter
- 3 Frequency distress beacon, digital 406 MHz and analog 121.5 MHz and 243.0 MHz homing signals
- Dual-band antenna with single connector and cable to transmitter
- Compatible with legacy antennas
- Easy maintenance and installation
- Many cockpit remote switch options available
- Can be connected to onboard GPS via Integrated ARINC429 interface
- GPS data is embedded in digital transmission reducing search radius down to 100 meters
- Compatible with ARTEX 406Test.com Satellite Confirmation Testing System
- 5-year battery life (replaceable). Ships non-hazmat.
- Cospas-Sarsat Type Approved
Specifications
ELT 4000M HM Specifications:
Weight:
5.45 lbs (2.47 kg)
Dimensions:
11.63 x 3.42 x 4.15 in (295 x 87 x 105 mm)
Operating Frequencies:
406.031 MHz (± 1 kHz), 121.5 MHz (± 0.005%), 243.0 MHz
Emission Designators:
16K0G1D (406.031 MHz), 3K20A3X (121.5 MHz)
GPS:
Built-in GPS Navigational Interface (ARINC429)
Output Power:
BNC Female (406/121.5 MHz)
Activation:
Automatic via Primary G-Switch by 4.5 ± 0.5 fps (2.3 G) and Manual Activation.
Battery:
5-year Alkaline
Operating Temperature:
-20°C to 55°C (-4°F to 131°F)
Storage Temperature:
-55°C to 85°C (-67°F to 185°F)
Self Test:
G-Switch Enabled, 406 MHz Power, Antenna/Coax Connection, and Low Battery
Remote Control:
ON/ARM/TEST
Approvals:
FAA, Cospas-Sarsat and EASA (CAAC, ANATEL and Industry Canada Pending)

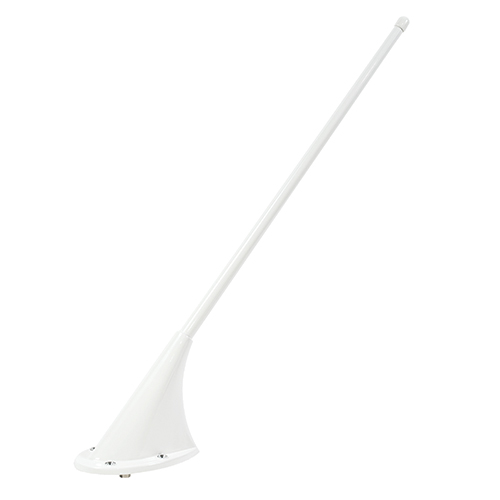

110-338 ELT Antenna Specifications:
Weight:
0.45 lb
Height:
15.50 in.
Frequency:
121.5, 243 & 406 MHz
VSWR:
121.5/243 MHz: 2.0:1
406 MHz: 1.5:1
Polarization:
Vertical
Radiation Pattern:
Omni-directional
Impedance:
50 Ω (nominal)
Material:
Molded radome/fiberglass whip
Finish:
Polyurethane enamel
Connector:
BNC (female)
Temperature:
-55ºC to 85ºC
Altitude:
50,000 ft
Color:
White
| Weight | 0.1 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
| Brand | ACR Artex |
