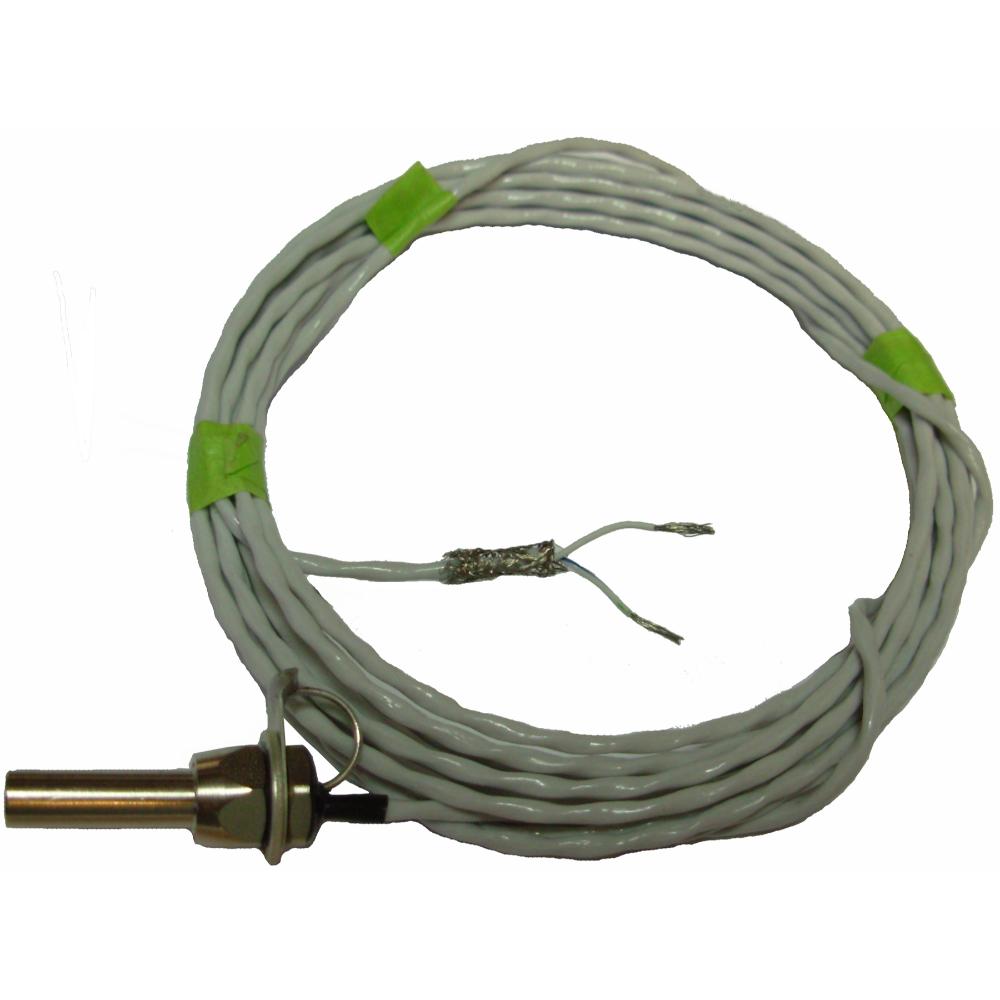

Enhanced Precision Analog Temperature Probe | 12 ft | Series 301/303/307/655/803
$431.34
The analog probe provides temperature readings to digital outside/cabin air temperature gauges. The 12 ft length white cable allows the probe to be remotely installed. This model allows for enhanced precision temperature readings.
The analog probe provides temperature readings to digital outside/cabin air temperature gauges. The 12 ft length white cable allows the probe to be remotely installed. This model allows for enhanced precision temperature readings.
Features
- For analog series – 301, 303, 307, 655, 803 temperature gauges
- Compatible with Celsius and Fahrenheit versions
- Leads may be lengthened or shortened without affecting calibration
- Shielded twisted wire pair
- 5/16 in surface mounting hole
- Sensor should be mounted away from exhaust gases or cowl flaps airflow
Specifications
Dimensions:
1.3 in. total probe length
Cable length:
12 ft
Hex nut:
7/16 in
Aircraft mounting surface hole:
5/16 in
Compatible series:
301, 303, 307, 655, 803

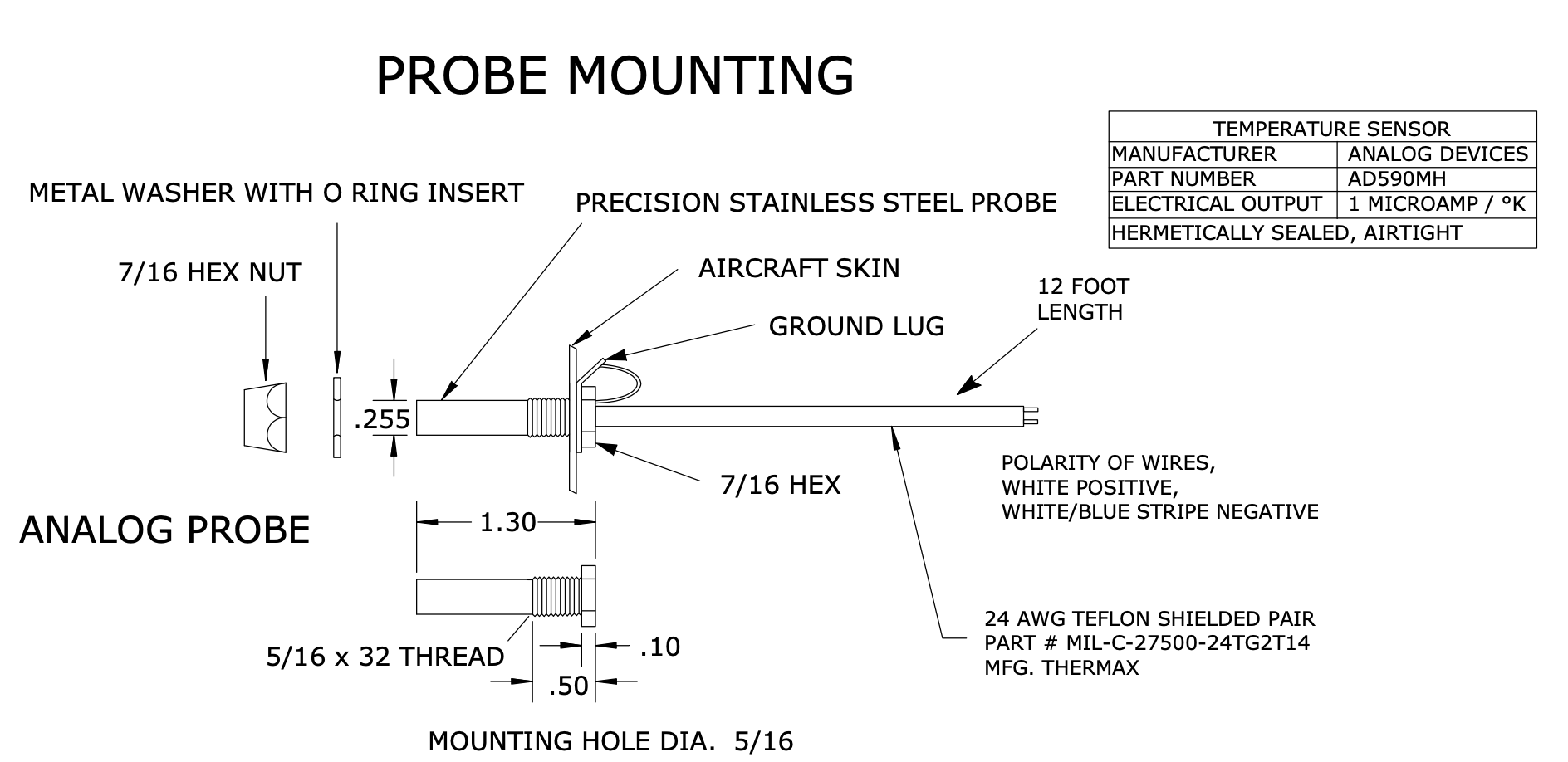

PROBE-12-FT -WHT -C307PSM | PART # C307PSM, AD590MH T EMP PROBE 12FT WHIT E (ANALOG)
IF MOUNTED IN FIBERGLASS OR A NON GROUNDED STRUCTURE, SHIELD WIRE MUST BE TIED TO AIRFRAME ELECTRICAL GROUND
NOTES: THE TEMPERATURE SENSOR MOUNTING SHOULD BE IN A PLACE THAT IS FREE OF EXHAUST GASES OR COWL FLAPS AIRFLOW. THE IDEAL PLACE IS TWO FEET OUT FROM THE WING ROOT ON THE BOTTOM OF THE WING. SENSOR LEADS MAY BE LENGTHENED OR SHORTENED WITHOUT AFFECTING CALIBRATION.
| Weight | 0.1 lbs |
|---|---|
| Dimensions | 0.1 × 0.1 × 0.1 in |
| Brand |
Davtron |
