Ergonomic Adjustable Upper Range 8 Indent Crimp Tool

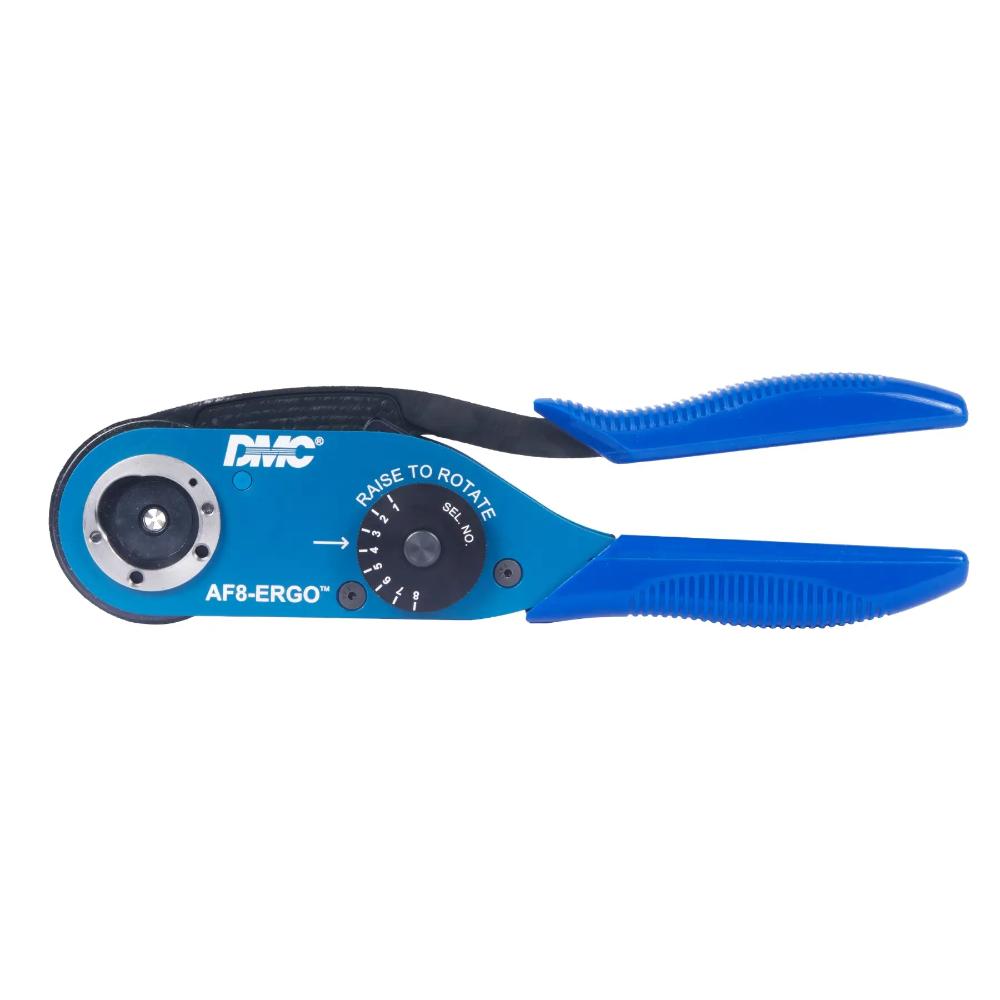

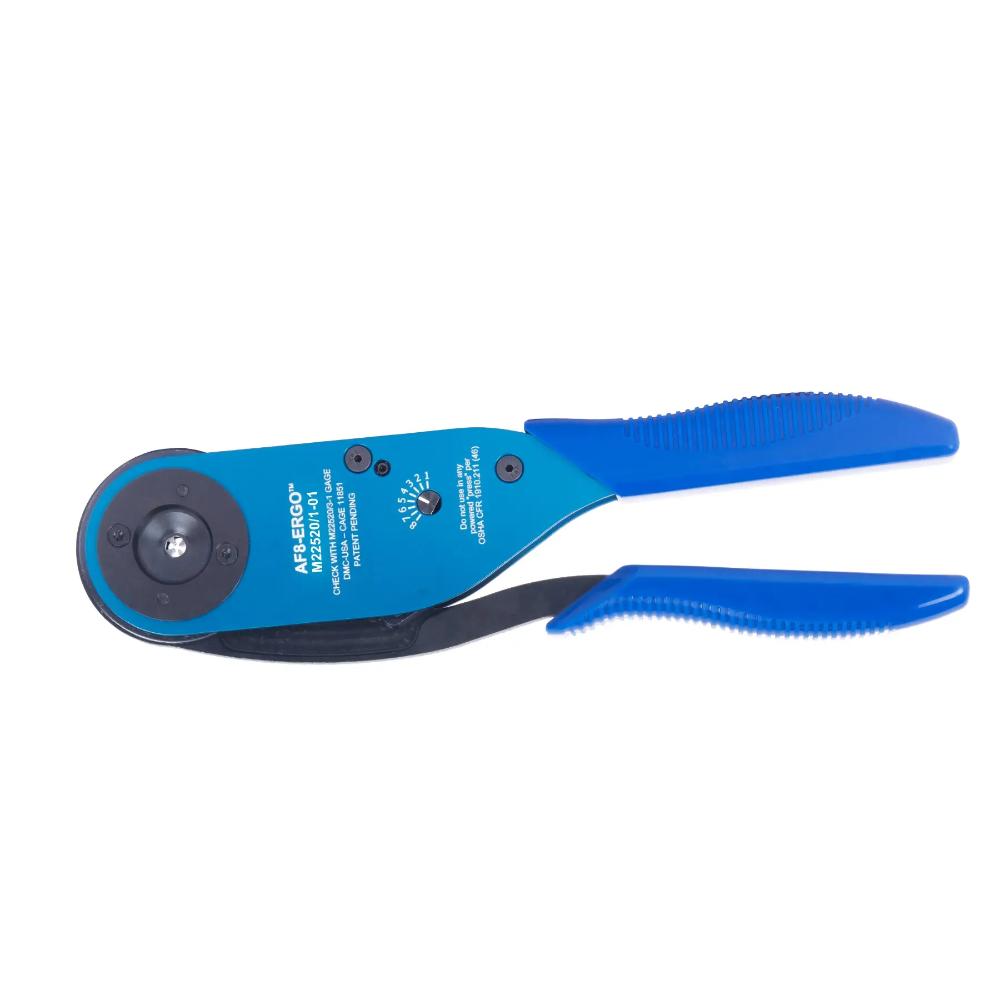

Built on the legacy of the original AF8, the AF8-ERGO (M22520/1- 01) introduces the same trusted performance with ergonomic enhancements to improve the user experience. The AF8-ERGO maintains the same mil-spec qualification as its predecessor while incorporating significant improvements including a 32% reduction in handle span, average of 20% less crimp force, ergonomic grips, better selector visibility, and enhanced gaging reliability.

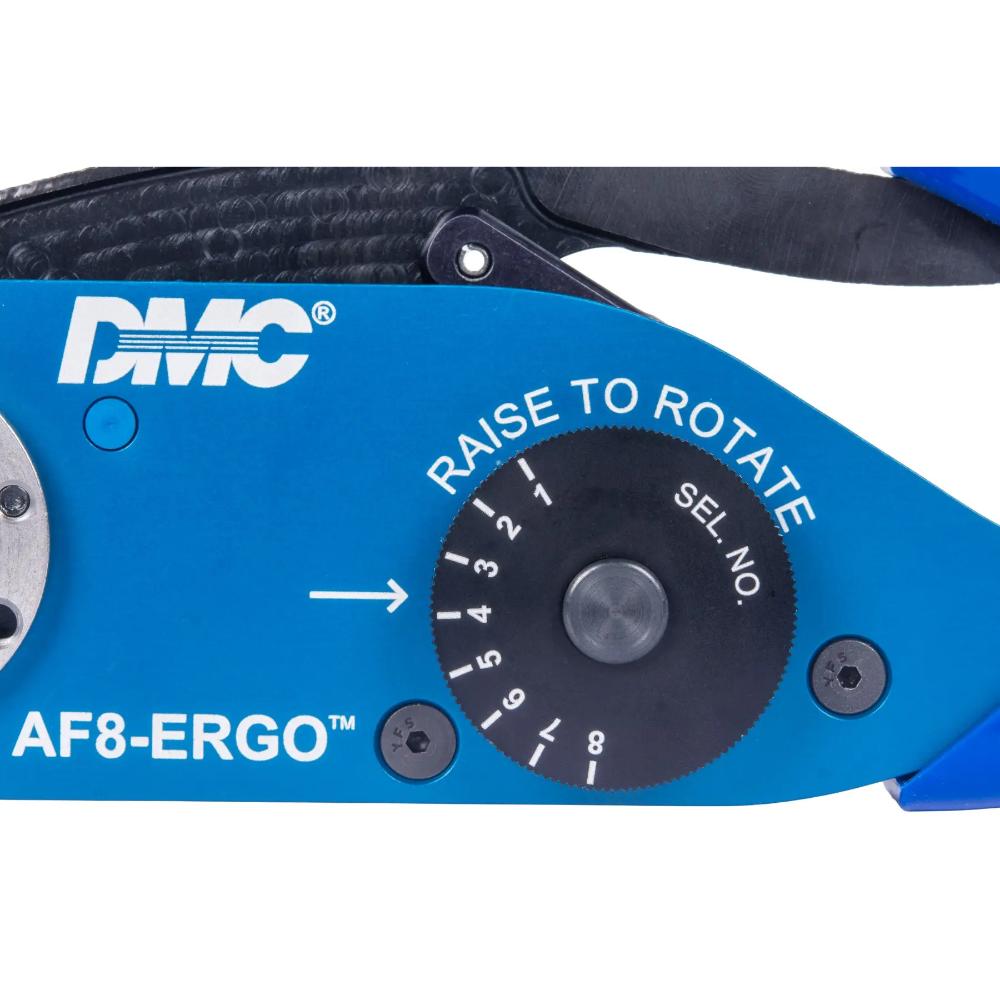

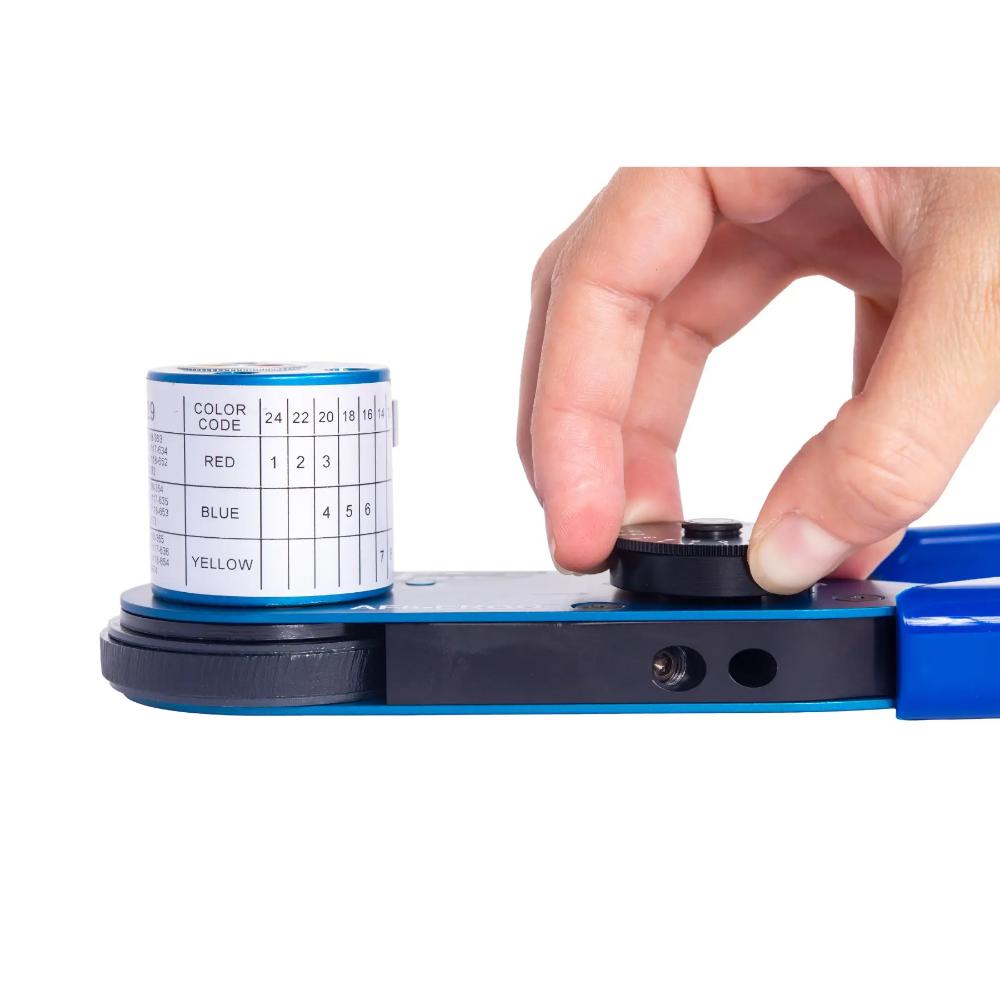

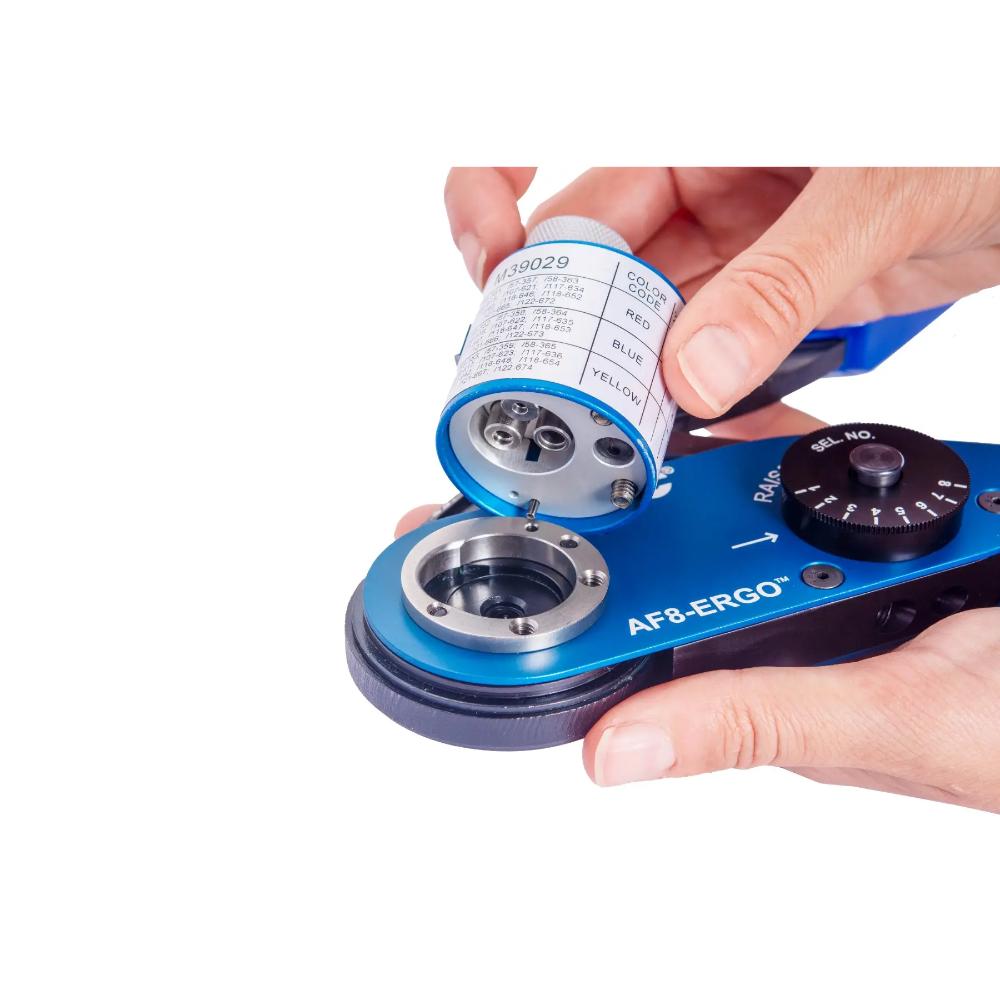

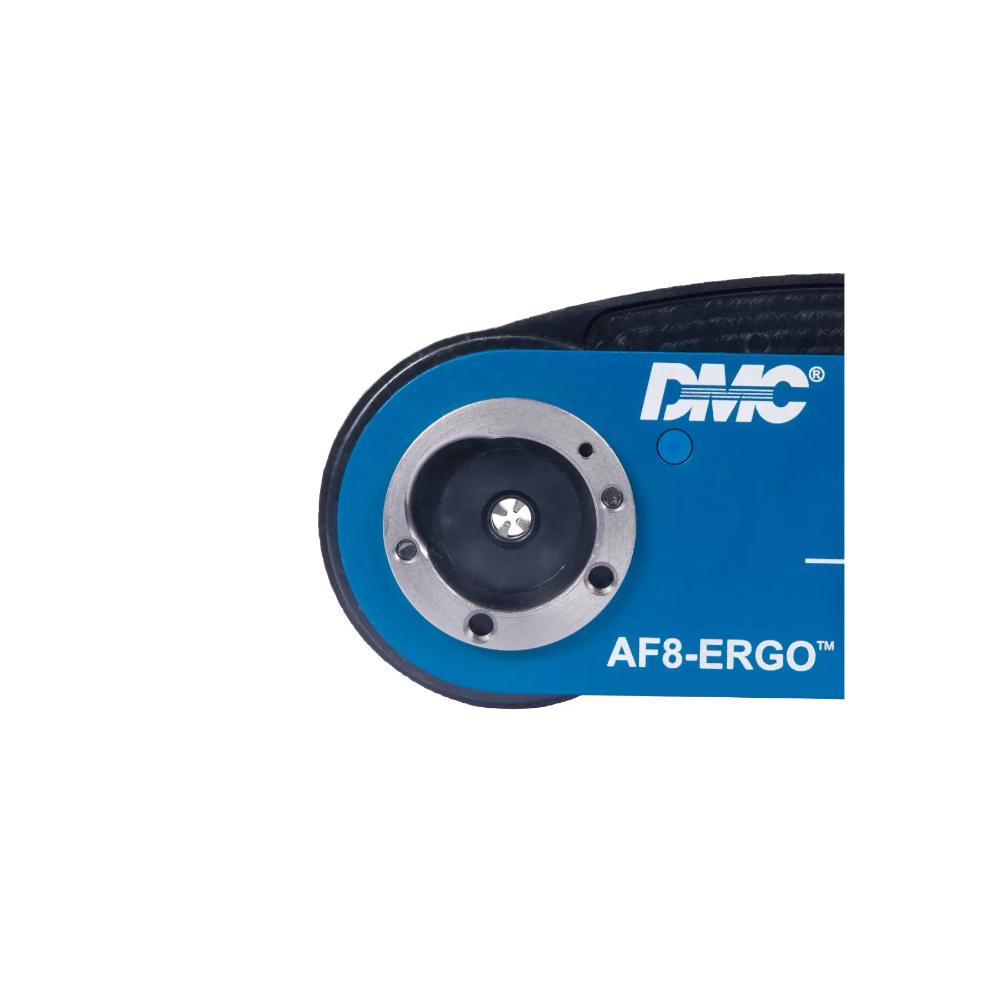

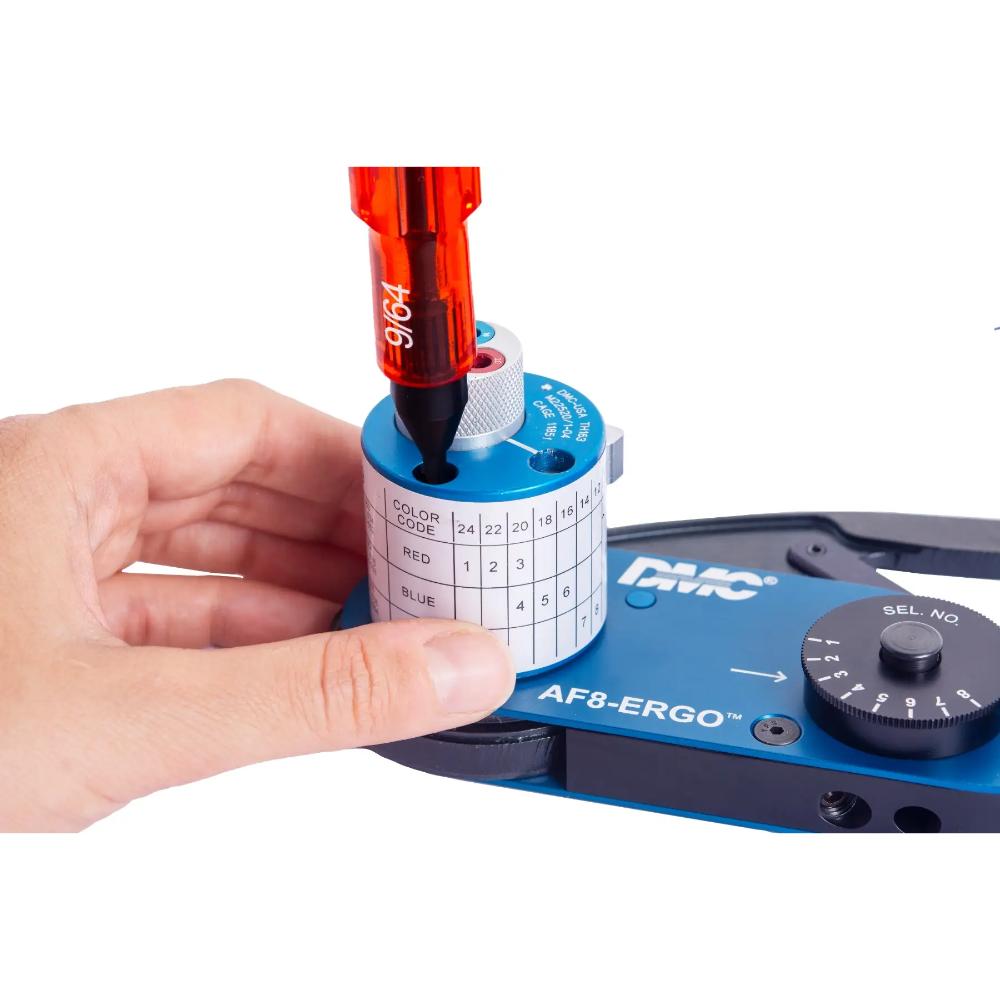

Qualified to AS22520/1, this tool has virtually limitless application within the specified wire range of 26-12 AWG. The AF8-ERGO contains four symmetrically arranged precision indenters to ensure uniform crimping. A positive ratchet mechanism guarantees the completion of the full crimp cycle before the tool can be reopened, promoting consistent performance and process integrity. A new and improved selector setting knob allows the user to easily adjust the depth of the indenters, accommodating a range of contact and wire sizes. The AF8-ERGO is fully compatible with DMC’s M22520/1 turrets and positioners (military standard or non-military) as well as the adjustable head (part no. UH2-5), allowing for a seamless transition to this tool.

Periodic gaging is recommended to ensure accurate calibration. This can be done easily by setting the tool selector knob to position #4 and checking indenter closure with the M22520/3-1 Go/No-Go gage (DMC part no. G125).

The pneumatic version of this tool is the WA27F.
