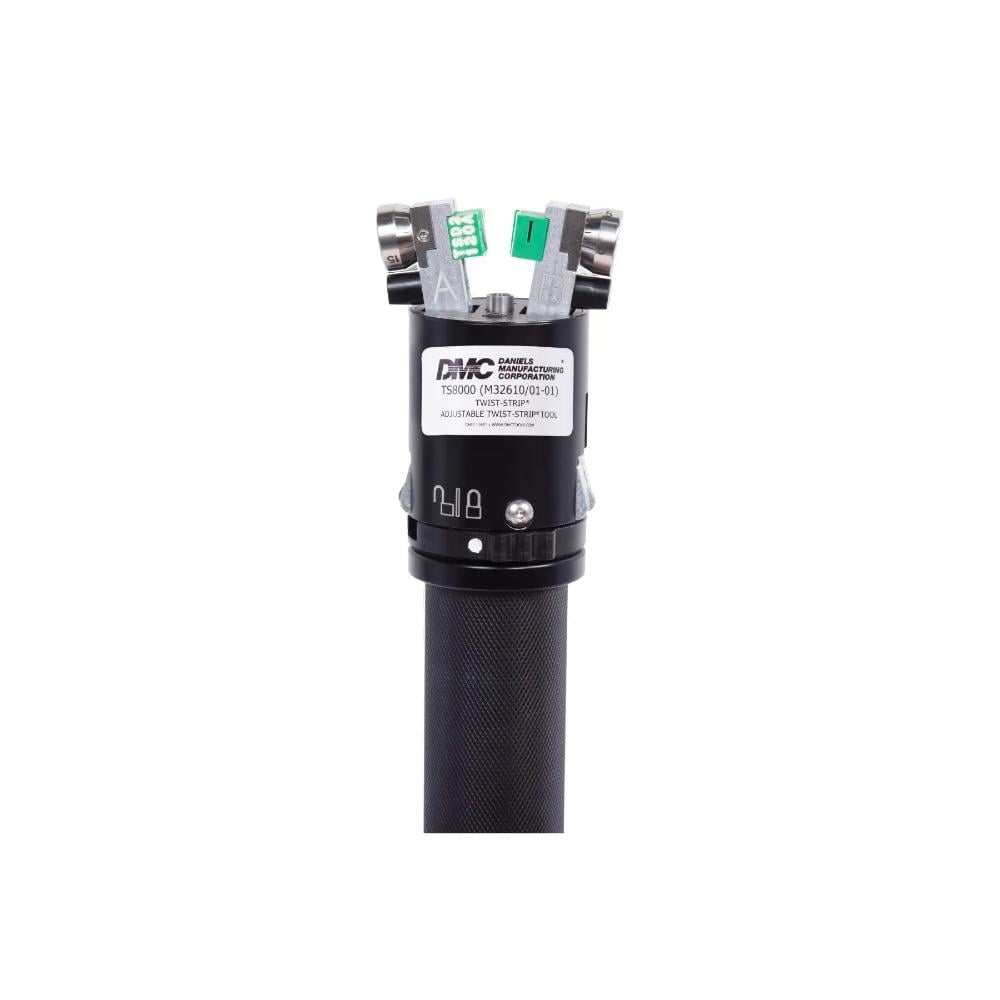

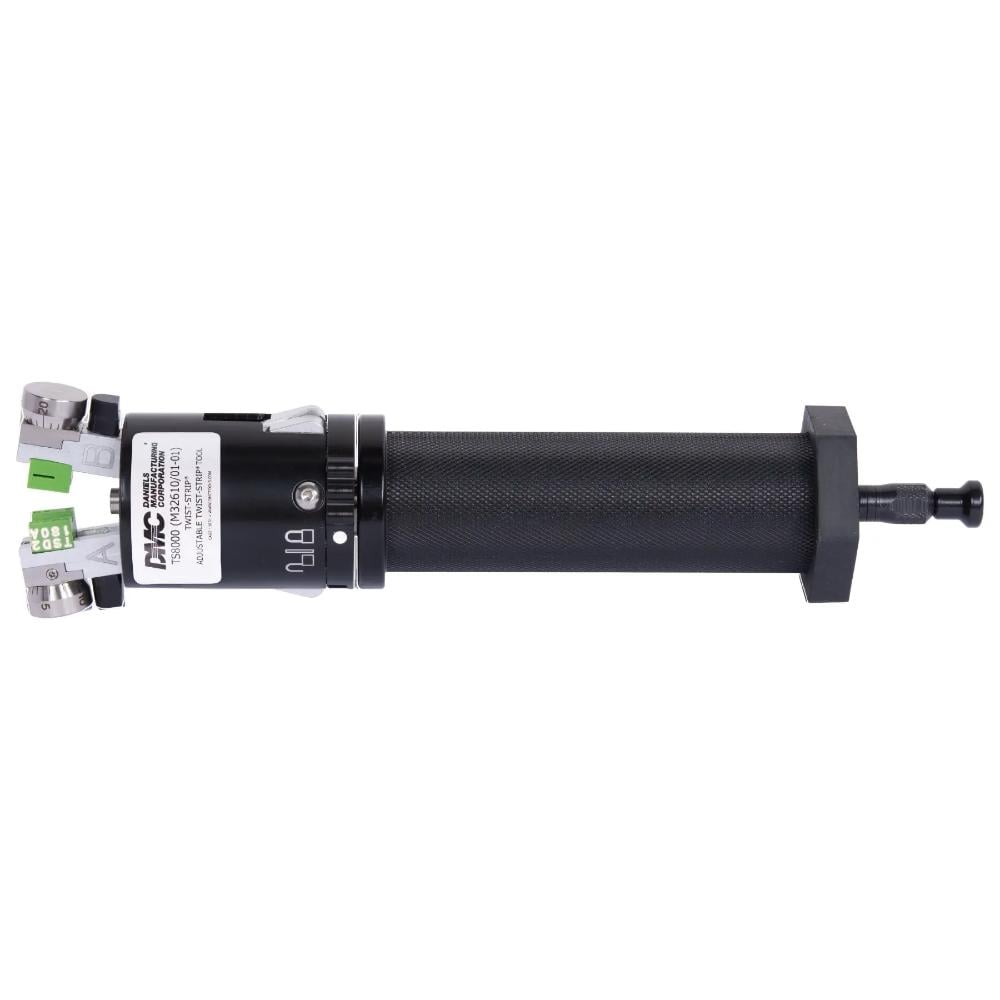

Twist-Strip® TSK8000 – Outer Jacket Stripper for Shielded Twisted Cable
$1,573.38
- For Multi-Conductor Twisted Cable 0.081″ – .180″
- MIL Spec – MIL-DTL-32610
- Single, Two, Three, and Four Conductor Dies Available
- Uses TSDXXXX Removable and Replaceable Die Sets
The TSK8000 has adjustable blades that allow the tool to accommodate variances in the cable. Varying jacket thickness and cable diameter are two examples of common differences you may see in different lots of the same cable. Simple adjustments allow the user to set the cutting blades for a deeper or shallower score of the cable jacket.
Precise:
A cable track precisely machined into each die set creates a controlled rotation of the dies/blades as the cable is moved along the cable. A simple 90° bend of the cable results in the jacket halves separating for removal, reducing the amount of force needed to remove the jacket.
Consistent:
The repeatable function of the tool reduces operator error and is up to 3 to 5 times faster than conventional methods.
Tool Specifications:
- The TSK8000 accommodates a variety of multi-conductor cable having diameters from 0.081 inches to 0.180 inches
- Strips the outer jacket of shielded twisted multi-conductor, and round cable
- End stripping or window stripping of cable as needed
- Interchangeable stripping dies (with cable track and carbide blade set)
- Adjustable blade depth settings
- Tool Weight: .81 lbs

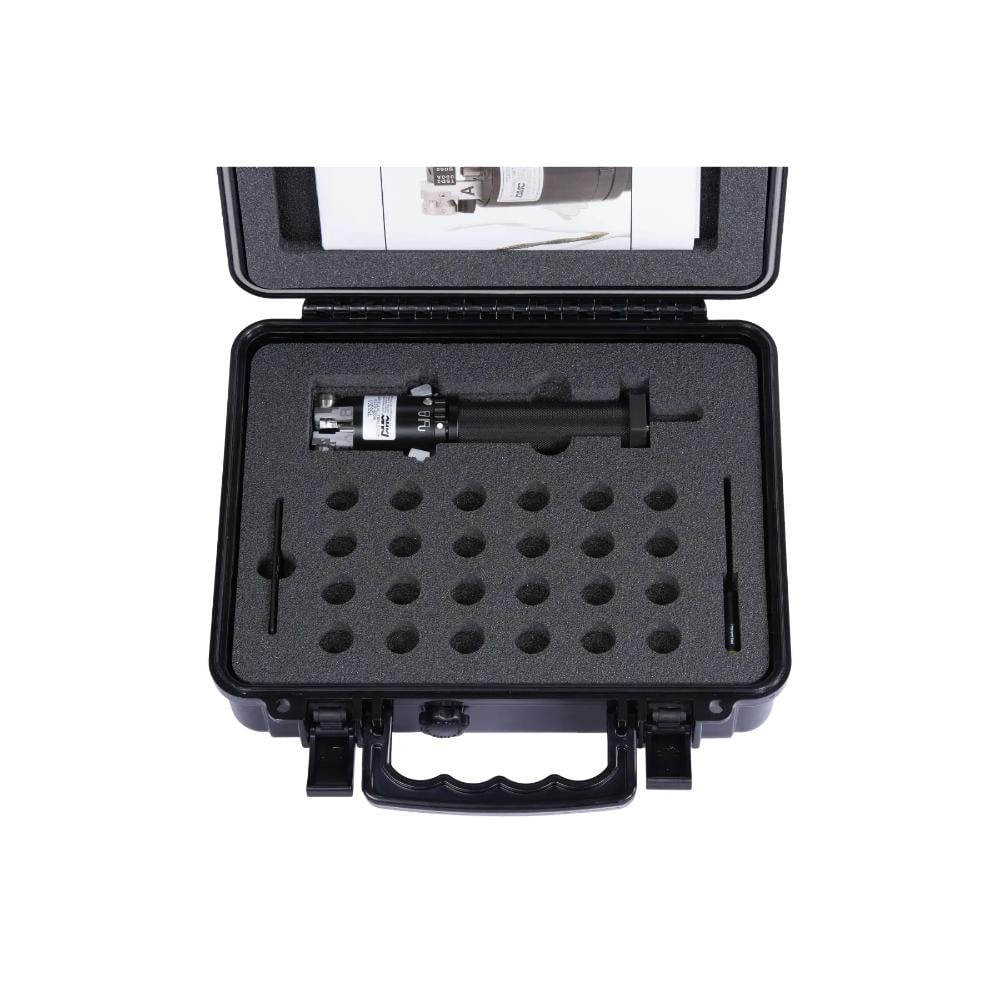

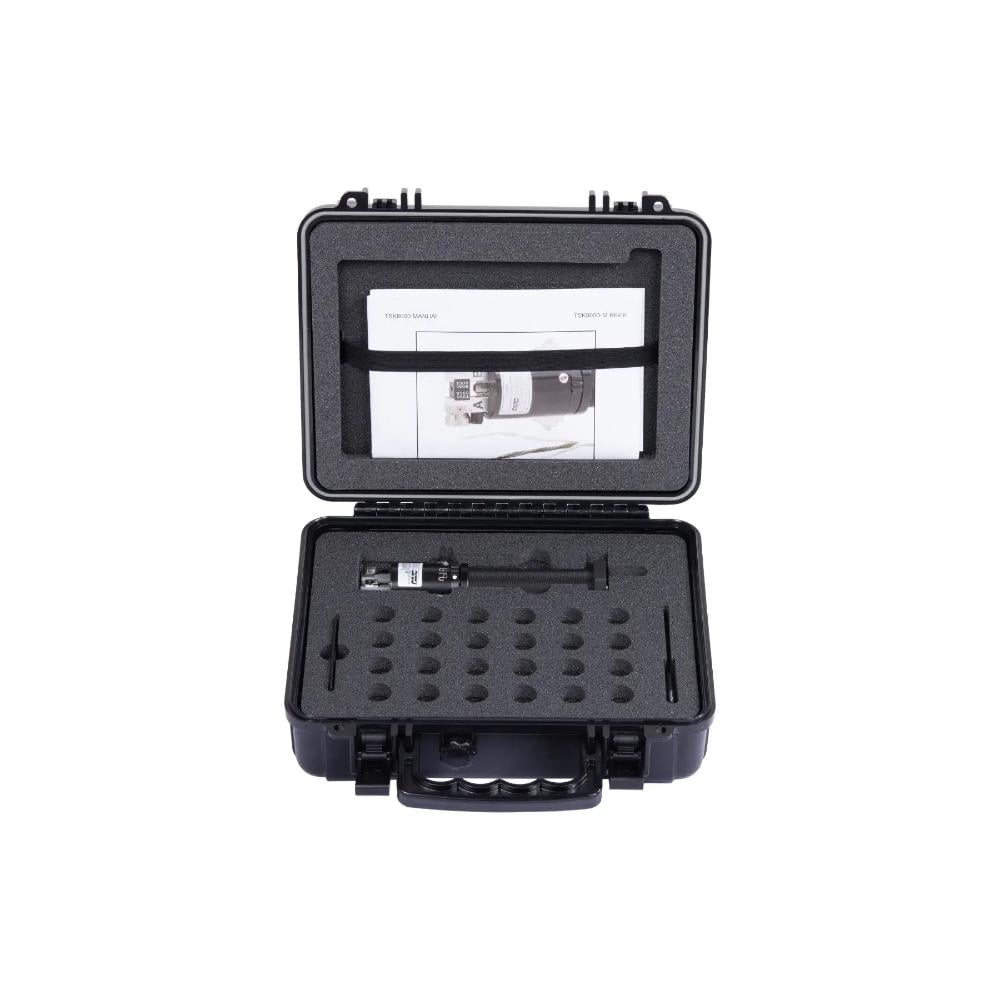

- Shipping Weight: 2lbs (includes entire tool and accessories in foam-lined case)
- Die Arm Lever Force: 4.4 lbs
- Die Arm Lever Length: 1 inches
- Tool Dimensions: 1.75 inches wide, 9.75 inches tall
- Cable Max OD: < 0.180 inches / 2.06 mm
- Cable Min OD: > 0.081 inches / 4.57 mm
| Weight | .1 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
| Brand | Daniels Mfg |
