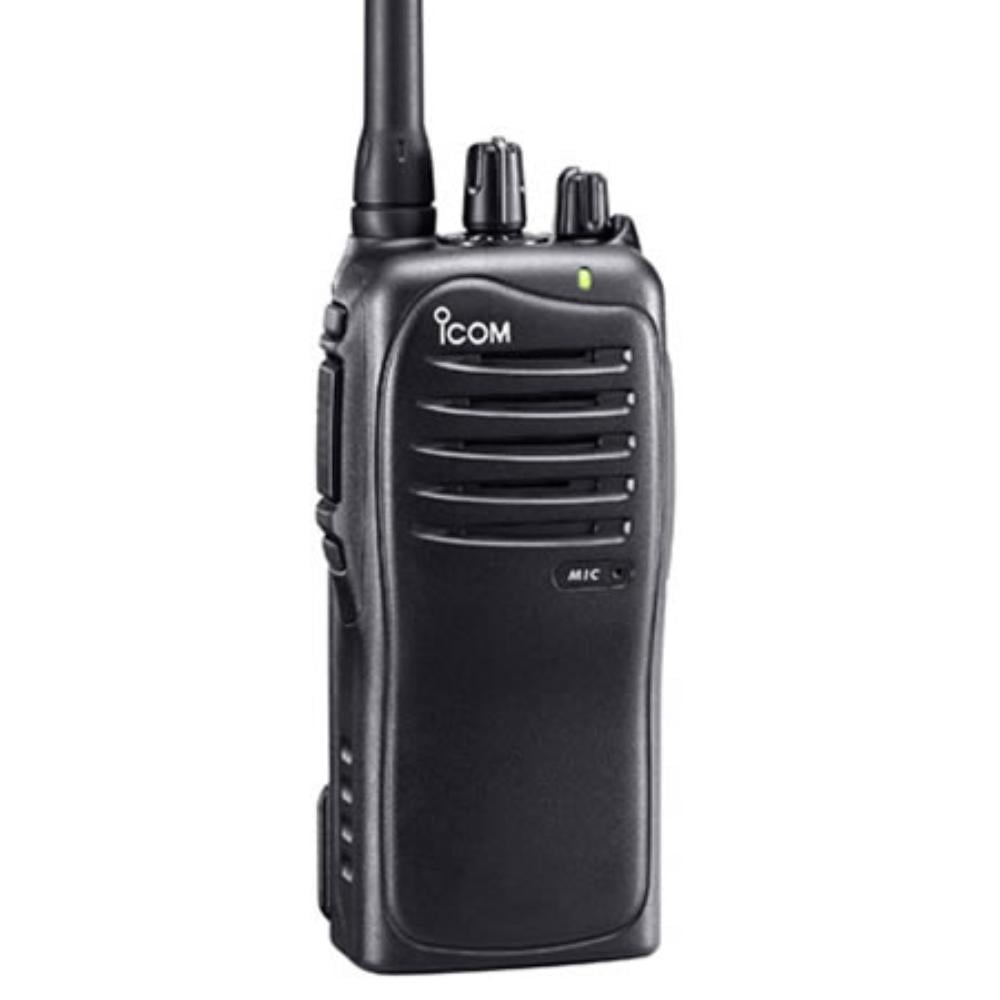

F4011 UHF Transceiver | 400-470 MHz

Icom’s F4011 UHF transceiver is easy to use and a great value—making it the perfect device for users who need a simplistic, efficient means of communication. This rugged device has a durable aluminum chassis and is tested to MIL-STD 810 specs and IP54 ratings for dust protection and water resistance.

The 3-button, 2 knob design is easy to operate, even with gloves. Power is supplied by the included Lithium-Ion battery which provides the user with up to 16 hours of battery life.

Features

• Wide frequency coverage (400-470 MHz & 450-512 MHz)
• Wide/narrow channel spacing (25, 12.5kHz) programmable
• Easy to operate with 3 buttons, one volume knob and one 16-position channel knob – no special training required and glove friendly
• Tough and portable with compact, light construction that uses an aluminum die-cast chassis for long-term durability
• Tested to MIL-STD 810 specifications and to the IP54 rating for dust protection and water resistance
• Device is sold with a high-capacity 2000mAh Li-Ion battery pack that provides up to 16 hours of operation and a rapid desktop charger that can power up the Li-Ion battery in approximately 3 hours
• Can access a repeater or be set up with a talk group with built-in CTCSS and DTCS capabilities
• An automatic scan begins when the radio is turned on and a priority scan function scans all programmed channels in sequence while monitoring the priority channel
• Lets the user know that the battery is running down with the low battery alert comprised of a beep and blinking LED

Specifications

Weight:
10.6 oz (with battery)

Dimensions:
53 x 120 x 38 mm

Frequency Coverage:
400-470 MHz
450-512 MHz

Number of Channels:
16

Channel Spacing:
12.5 kHz, 15/30 kHz

Power Supply Requirement:
7.2V DC

Antenna Impedance:
50Ω

Operating Temperature:
-22°F to +140°F

Current Drain:
Tx (high): 1.6A
Rx Max: audio- 300mA / standby- 70mA
