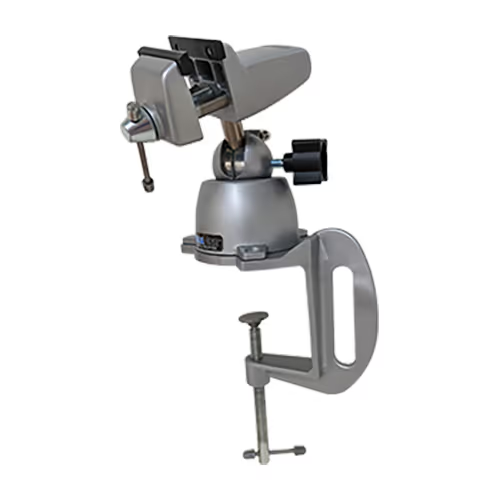

Heavy Duty Clamping PanaVise | 90° Tilt, 360° Turn, 360° Rotation
Call for Pricing
Contact Cost Aero at 855-500-3044 for pricing
All PanaVise vises and work holding tools have a “lifetime warranty”. The Heavy Duty Clamping PanaVise Combo (part# MODEL313) consists of the standard head, standard base, and clamping base mount. It is a MUST for every work bench! The patented “split ball” allows the head to tilt, turn and rotate and position your work anywhere you want it.
Features
- Includes the best general purpose Vise Head on the market
- Known around the world as a work holding tool for hobbies, electronics, and small home repairs
- Essential for all work bench environments
- Nylon jaws offer excellent electrical insulation and gentle holding power
- Standard PanaVise Base is controlled by an easy-to-use single knob that allows head movement through 3-planes: 90° Tilt, 360° Turn, and 360° Rotation
- Heavy Duty Clamping Base includes four non-marring, anti-skid neoprene pads for additional anti-slip characteristics without excessive tightening of the clamping screw
- Heavy Duty Clamping Base includes finger grip for added convenience and clamps to anything up to 3.4375 in (87.3 mm) thick
Specifications
Base Weight:
1.4 lbs (0.6 kg)
Base Height:
3.75 in (95.2 mm)
Base Mount Weight:
2.4 lbs (1.1 kg)
Base Mount Throat Depth:
2.3125 in (58.7 mm)
Head Weight:
1.5 lbs (0.7 kg)
Head Height:
4.25 in (108.0 mm)
Head Throat Depth:
1.375 in (34.9 mm)
Jaw Height:
0.5 in (12.6mm)
Jaw Width:
2.5 in (63.5 mm)
Jaw Opening:
2.25 in (57.1 mm)
Head Continuous Heat Tolerance:
200°F (93°C)
Head Intermittent Heat Tolerance:
300°F (149°C)
| Weight | .1 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
| Brand | PanaVise Products |
