iLevil 3 AW | WIAM Wireless Integrated Avionics Module
$1,834.25
27
Items sold in last 13 days
3
People watching this product now!
Description

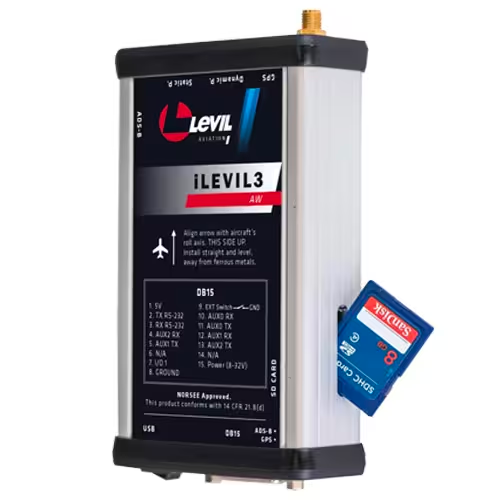

The iLevil 3 AW is a fully independent, all in one avionics device. Capabilities include WAAS GPS, ADSB-in, Air Data (Altitude, Airspeed), AHRS (Attitude, Directional Gyro, Turn Coordination, rate of turn, VSI) and the ability to connect to other external hardware such as EIS systems. Once installed, the ILEVIL 3 AW connects via Wi-Fi to a tablet inside the cockpit and data can be displayed on multiple Apps thanks to its open protocol.
Features
Includes:
- Wireless iLevil 3 AW device
- USB to Mini USB cable
- GPS Antenna
- ADS-B antenna
- DB15 male connector
- User Manual
- SD card
Features:

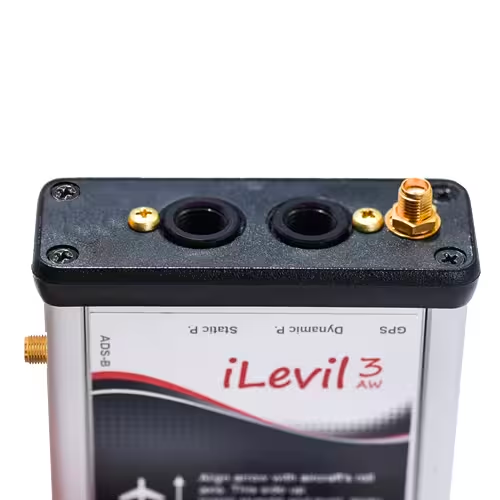

- Dynamic and Static Port for indicated airspeed and altitude
- WAAS GPS
- High-performance AHRS and solid-state technology (Capable of driving synthetic vision displays)
- ADS-B Receiver for weather and traffic
- Small and lightweight
- Records flight data with SD card
- Portable or permanently mounted instrument
Specifications
Weight:
11 oz
Dimensions:
3.2 x 5 x 1.1 in.
Power input:
12 to 28 VDC
Backup battery:
Lasts 5.5 hours
Additional information
| Weight | 0.1 lbs |
|---|---|
| Dimensions | 0.1 × 0.1 × 0.1 in |
| Brand |
Levil Aviation |
