K344 Positioner | Daniels Crimp Tools
$85.97

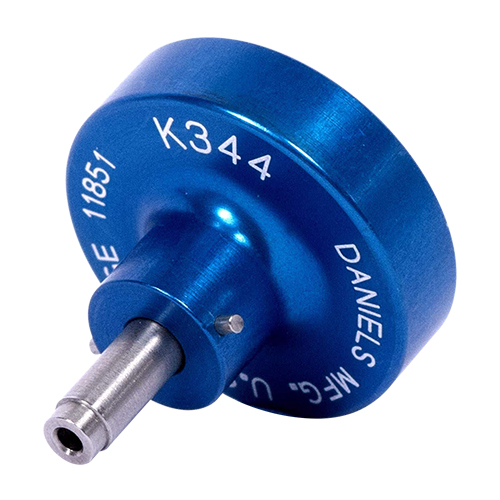

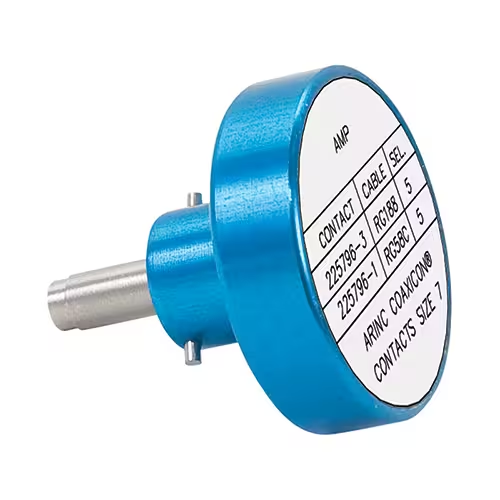

This positioner is used with the AFM8, AFME8B, WA22 crimp tools and adapts the tool frame to a particular application. The data plate on each positioner designates which contacts the positioner accommodates for its wire size and indicates selector position.
This positioner is used with the AFM8, AFME8B, WA22 crimp tools and adapts the tool frame to a particular application. The data plate on each positioner designates which contacts the positioner accommodates for its wire size and indicates selector position.
Features
- Contacts Serviced:
- 225796-1 ARINC COAXICON Size 7 Contact for RG58C Cables
- 225796-3 ARINC COAXICON Size 7 Contact for RG188 Cables
- Compatible Tools:
- AFM8 Adjustable Miniature 8 Indent Lower Range Crimp Tool
- AFME8B Battery Crimp Tool
- WA22 Pneumatic Crimp Tool
Specifications
-
Dimensions: 0.93 x 0.93 in
-
Locator Hole Dimensions: 0.065 in
-
Contact Size: Size 7
-
Cable Types: RG58C, RG188
| Weight | .1 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
| Brand | Daniels Mfg |
