Large Gauge 8 Indent Battery Crimp Tool
$8,899.98
Smart Crimping Made Simple

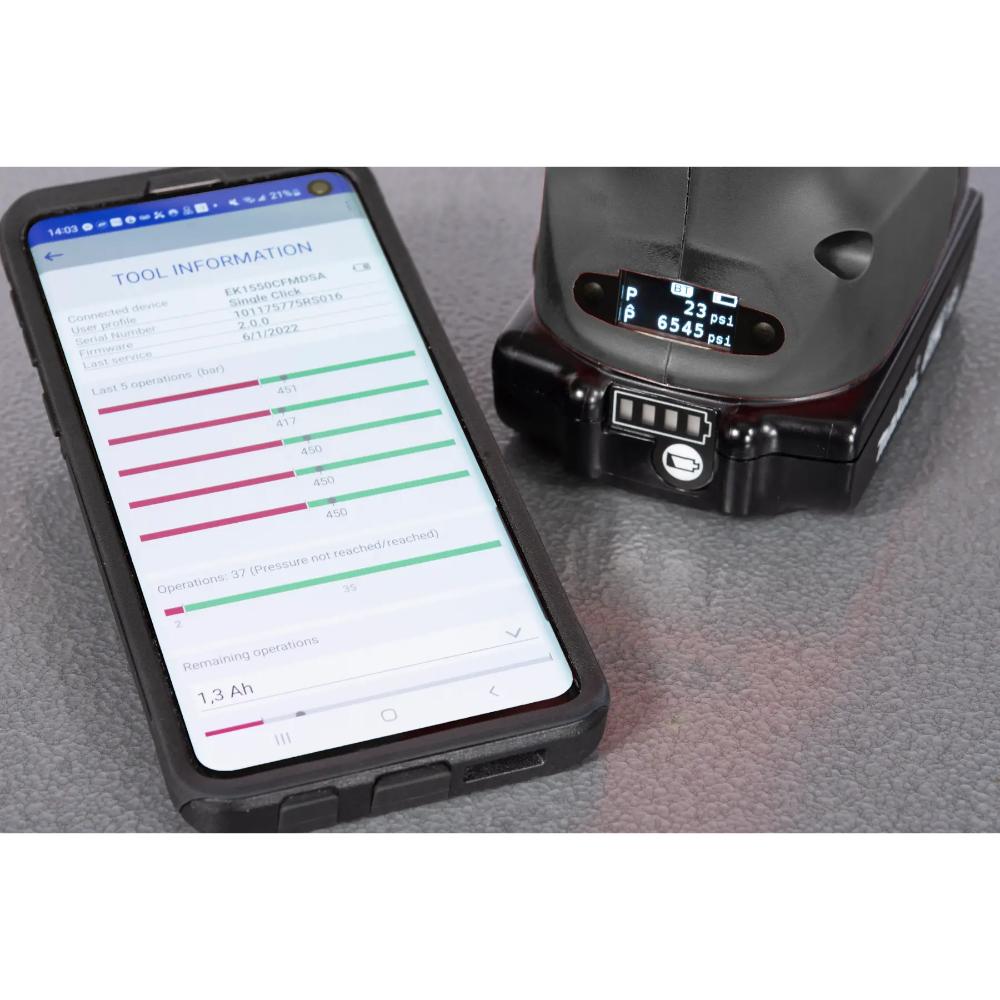

This new crimp tool from DMC offers next-generation, high-tech features allowing you to track tool performance, users, and projects. Crimp data is viewable in real-time or can be downloaded via an app. Bluetooth® Connectivity Innovative LED display Tracks Number and Quality of Crimps Improved Housing Construction

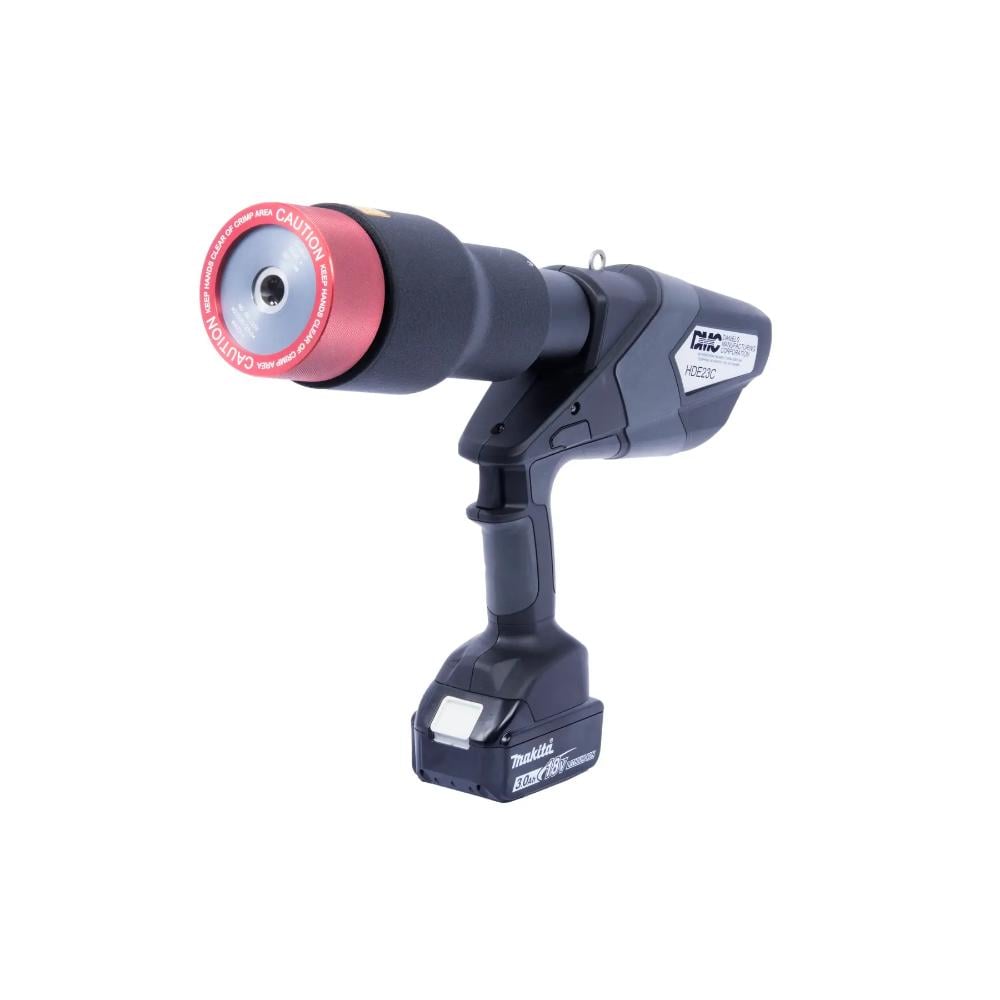

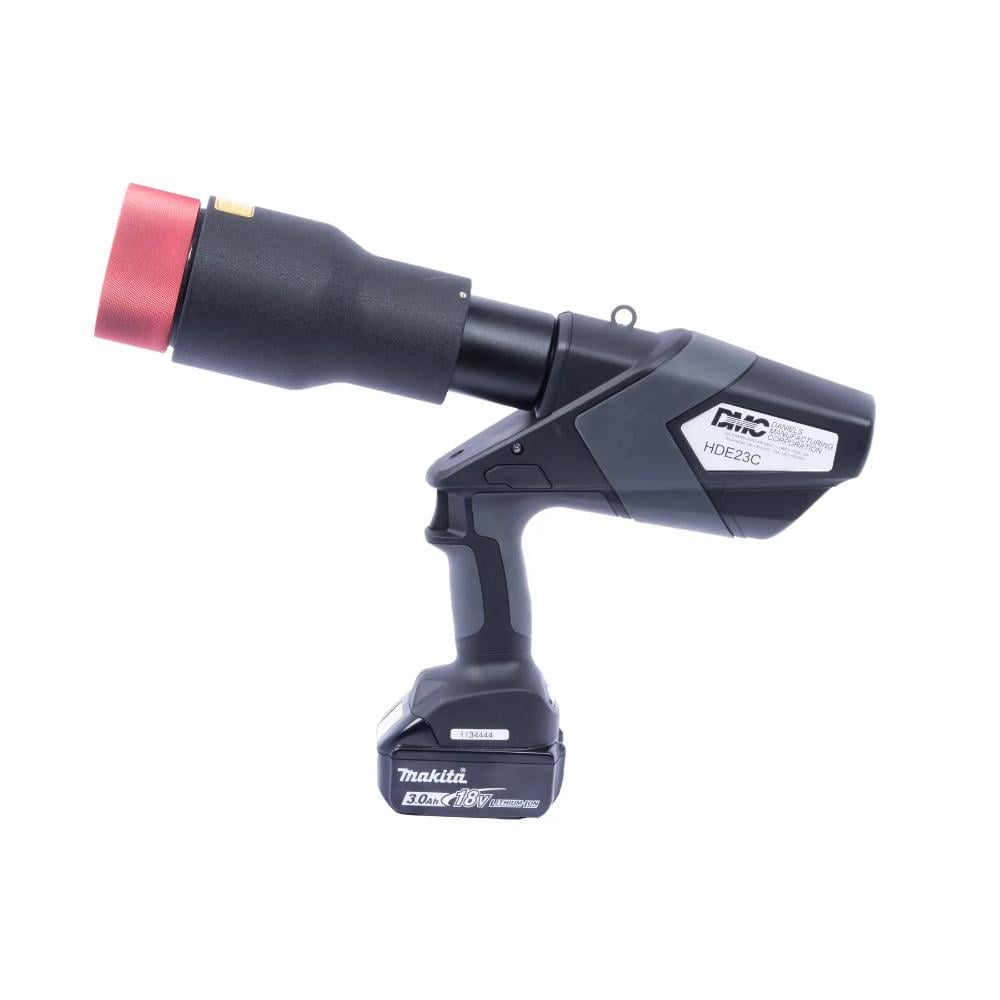

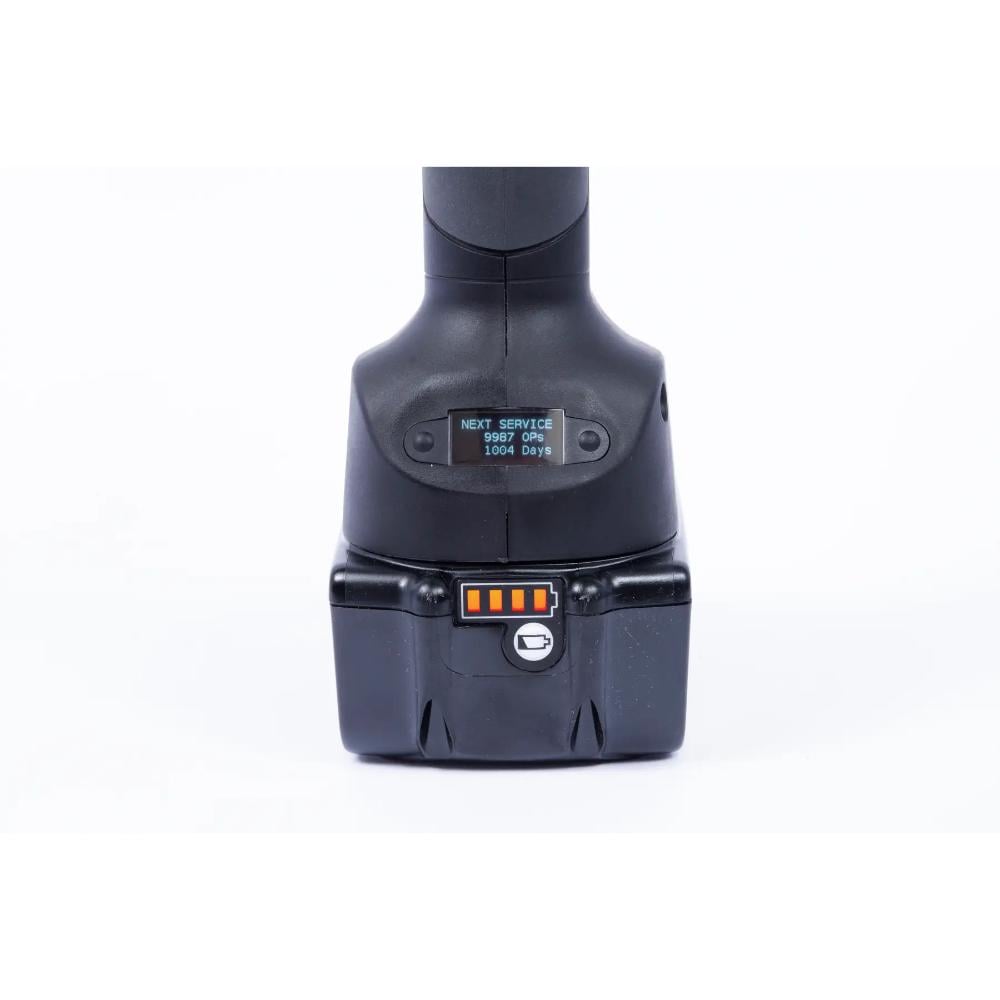

The DMC HDE23C is a heavy-duty battery-electric operated hydraulic crimp tool designed to produce four indent crimps on contacts and terminals, sizes 8 thru 4/0 AWG. Dies and locators are interchangeable and are Mil-Qualified to the AS22520/23 specification. The power unit features an LCD screen that displays battery level, pressure, cycles, and other useful data. Work smarter with the latest communication technology which transmits tool data via Bluetooth to the app.
The tool’s hydraulic pump is filled with biodegradable hydraulic fluid at the factory and does not need to be bled or primed. This tool is the battery equivalent to DMC tool part number WA23 (M22520/23-01) Heavy Duty Pneumatic Crimp Tool. It accepts all die assemblies and locators designed for part number WA23. However, this tool is NOT Mil-Qualified at the time of this writing. Length 17.9” (454.7mm) Height 13.3” (337.8mm) Width 4.0” (101.6mm) Mass/Weight 13.9lb (6.3kg) Hydraulic Oil .1pt (50ml) Biodegradable Hydraulic Fluid Crimping Range 8 to 4/0 Pump Force Output 4.5 tons (40.03kN) DMC also offers a Pneumatic version WA23 and the Hydraulic version HD23.
| Weight | .1 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
| Brand | Daniels Mfg |
