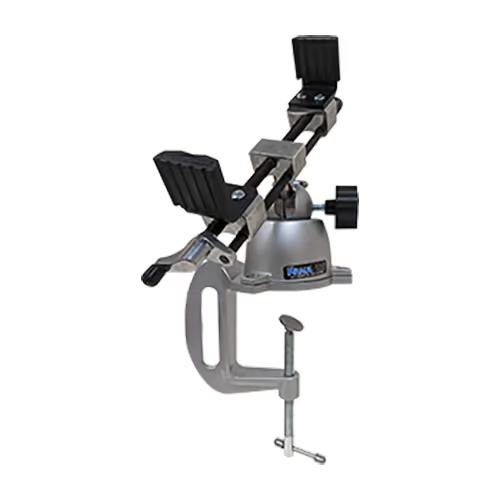

Heavy Duty Clamping Multi-Purpose PanaVise | 90° Tilt, 360° Turn, 360° Rotation
Call for Pricing
Contact Cost Aero at 855-500-3044 for pricing
All PanaVise vises and work holding tools have a “lifetime warranty”. The Heavy Duty Clamping Multi-Purpose PanaVise Combo consists of the self centering, extra wide opening head, standard base, and clamping base mount. It is a MUST for every work bench! The patented “split ball” allows the head to tilt, turn and rotate and position your work anywhere you want it.
Features
- Self-centering, extra-wide opening jaws hold heavier objects by centering the weight over base
- Ribbed, neoprene jaw pads provide a sure grip; reverse the pads and the wide “V” holds cylindrical objects
- “Double-action” jaws open/close quickly. Can be reversed to provide zero closure
- Standard PanaVise Base is controlled by an easy-to-use single knob that allows head movement through 3-planes: 90° Tilt, 360° Turn, and 360° Rotation
- Heavy Duty Clamping Base includes four non-marring, anti-skid neoprene pads for additional anti-slip characteristics without excessive tightening of the clamping screw
- Heavy Duty Clamping Base includes finger grip for added convenience and clamps to anything up to 3.4375 in (87.3 mm) thick
Specifications
Base Weight:
1.4 lbs (0.6 kg)
Base Height:
3.75 in (95.2 mm)
Base Mount Weight:
2.4 lbs (1.1 kg)
Base Mount Throat Depth:
2.3125 in (58.7 mm)
Head Weight:
1.9 lbs (0.9 kg)
Head Height:
5.25 in (133.3 mm)
Head Length:
11.5 in (292.1 mm)
Jaw Height:
1.875 in (47.6mm)
Jaw Width:
1.5 in (38.1 mm)
Jaw Opening:
9 in (228.6 mm)
| Weight | .1 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
| Brand | PanaVise Products |
