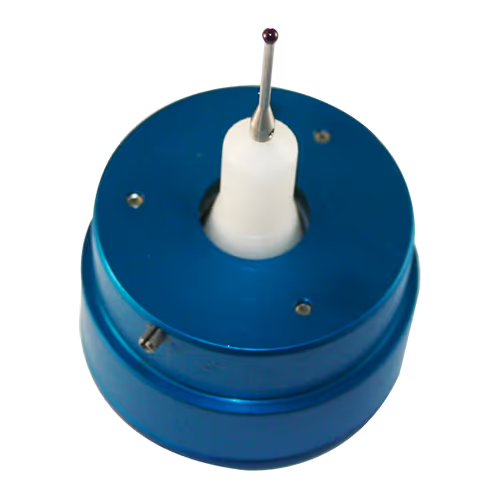

Measure Pro 2 For Panel Pro | 10mm 3-Pin Plug
Contact Cost Aero at 855-500-3044 for pricing
15
Items sold in last 13 days
6
People watching this product now!
Description
The Measure Pro is a Panel Pro accessory that provides for reverse engineering instrument panels. It exports the measurements as a DXF CAD drawing for final editing. The measure pro measures individual elements such as lines, circles, and curves and saves them as a dxf file for editing in the CAD program. The panel perimeter is the primary focus of the Measure Pro, but mounting holes and instrument holes and other panel features can be measured as well.
Features
- Triggers +/- X axis, +/- Y axis, – Z axis

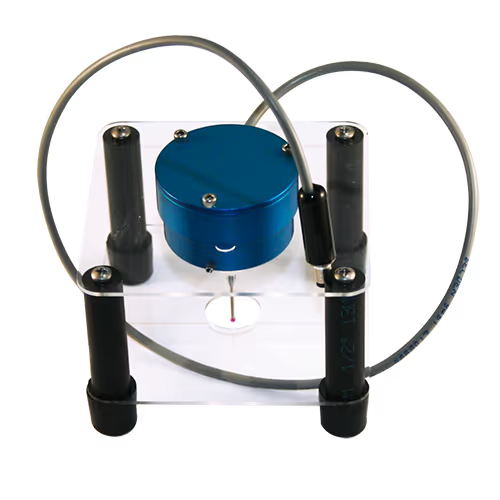

- Probe stand protects the probe when not in use

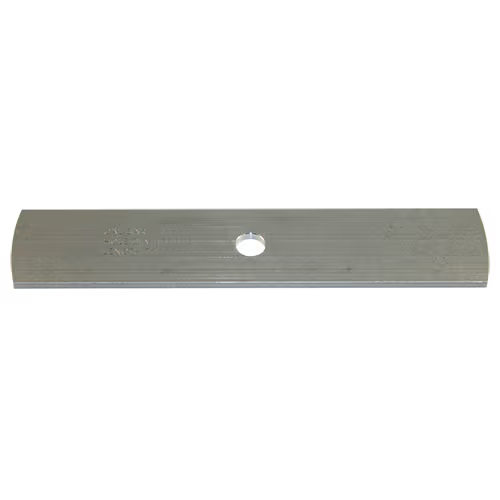

- Calibration bar to set the exact travel required to open the switch
- Software is part of the AvCAM software included with the Panel Pro 5925a
- Compatible with Panel Pro 2080 and greater or modified earlier Panel Pros.
Specifications
Weight:
1 lb
Dimensions:
7 x 4 x 4 in.
Connector:
10mm 3pin plug
Additional information
| Weight | .1 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
| Brand | Buller Enterprises |
