MH860 Tool Kit with Positioners (DMC5000 Series)
$2,249.00

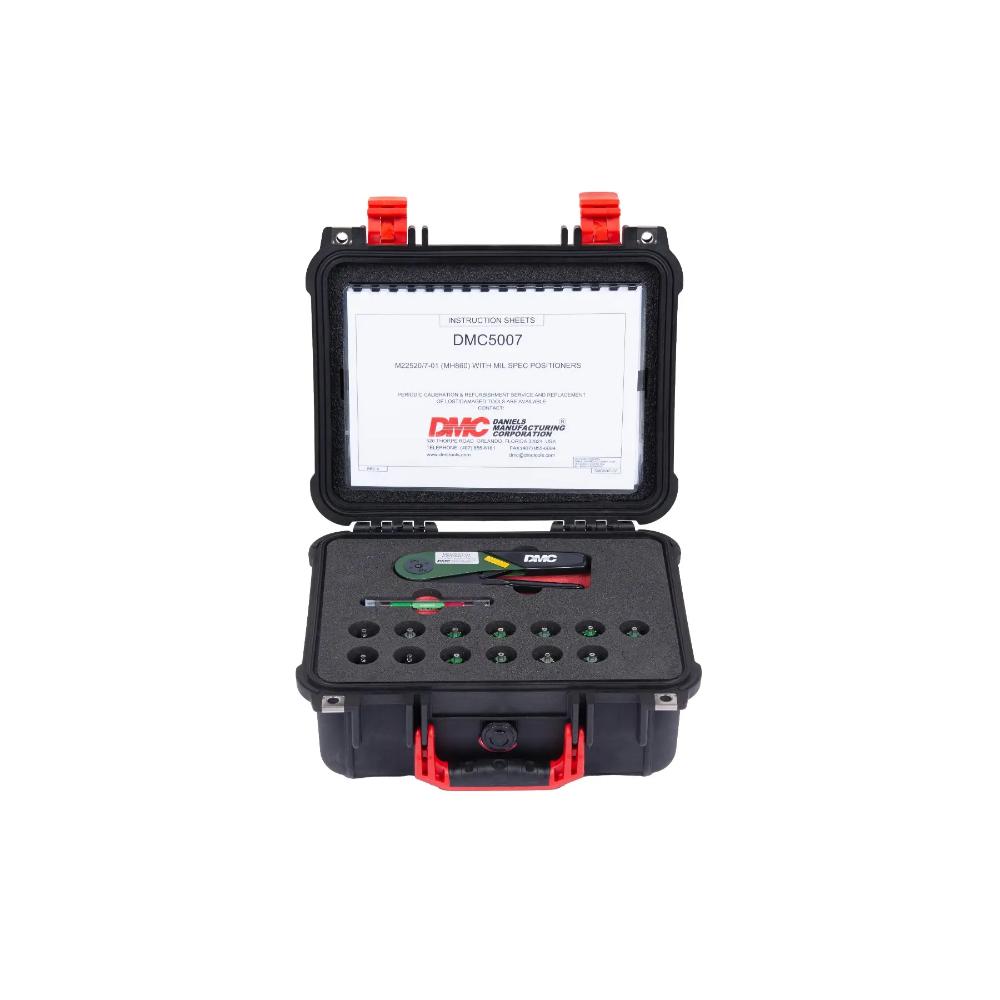

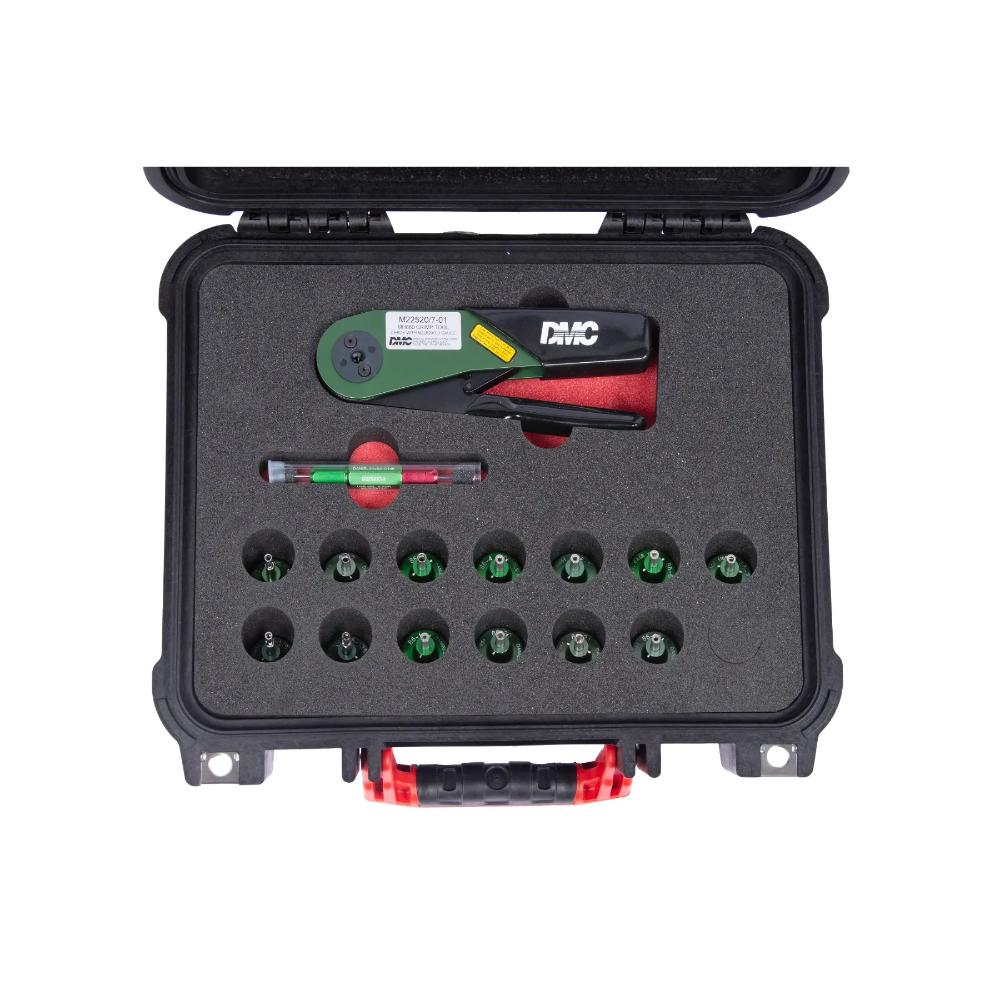

DMC5007 (MIL-T-83507/8-01) Maintenance Kit For Electrical Connectors and Wiring Systems. The DMC5007 tool kit contains the MH860 tool frame, tool gage, and all 13 mil-spec positioners. Also included in the DMC5007 are tool instruction sheets and a tool selection chart. Qualified to MIL-DTL-22520/7, the DMC MH860 was developed to meet the demonstrated need for supporting the majority of electrical systems with one versatile crimp tool frame. The MH860 accepts the entire middle wire range of 16 through 32 AWG, with positioners which adapt it to virtually all applications consistent with others in the MIL-DTL-22520 family.

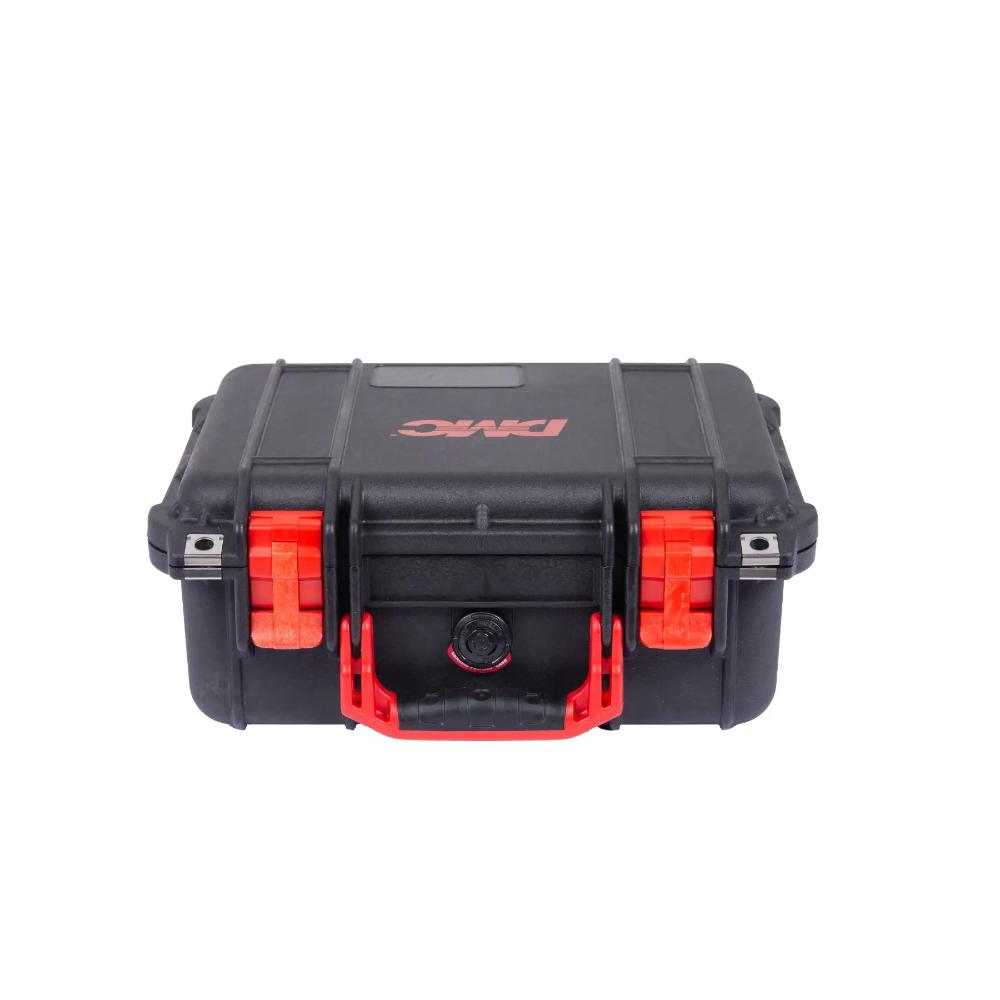

TOOL KIT CONFIGURATION:
Type of Case: Â Portable
Number of Cases: Â 1
Color: Â Black
Type of Construction: Â Black Polypropylene Copolymer
Application: Â M22520/5-01
Type of Inserts: Â Unicellular Polyethylene Foam with Die Cut Tool Cavities
| Weight | .1 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
| Brand | Daniels Mfg |
