Open Frame Pneumatic Crimp Machine for Use with Interchangeable Y Dies
$7,887.07
- Covers wires between 24-10 AWG
- Accommodates interchangeable “Y” dies
- Operates on standard shop air (80-120 PSI)
- Compact design

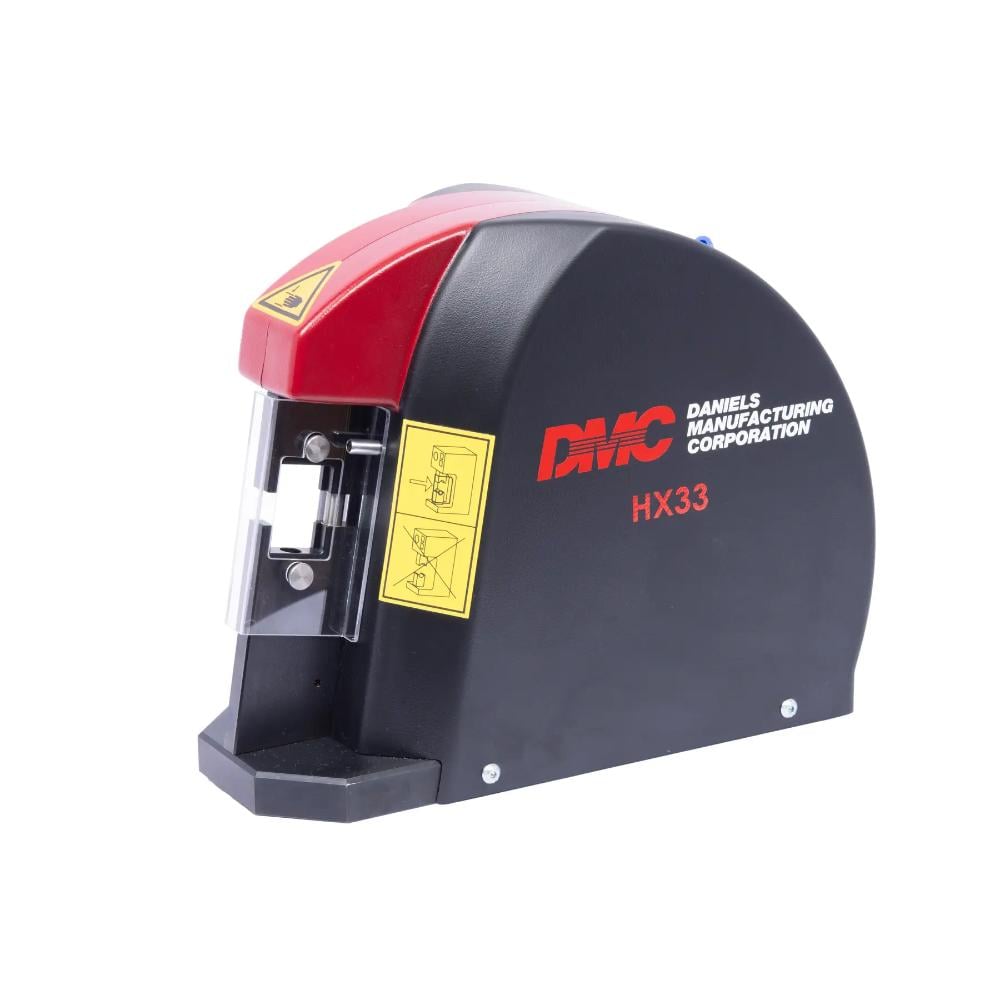

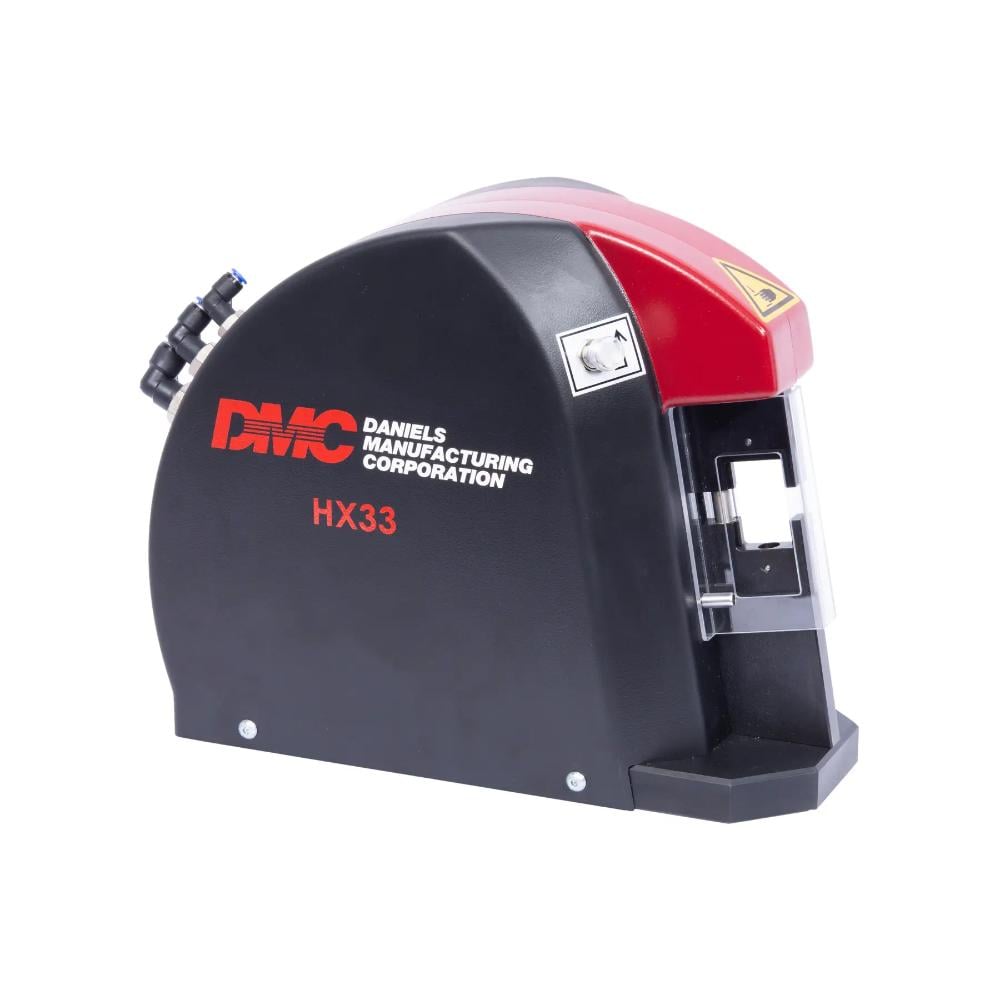

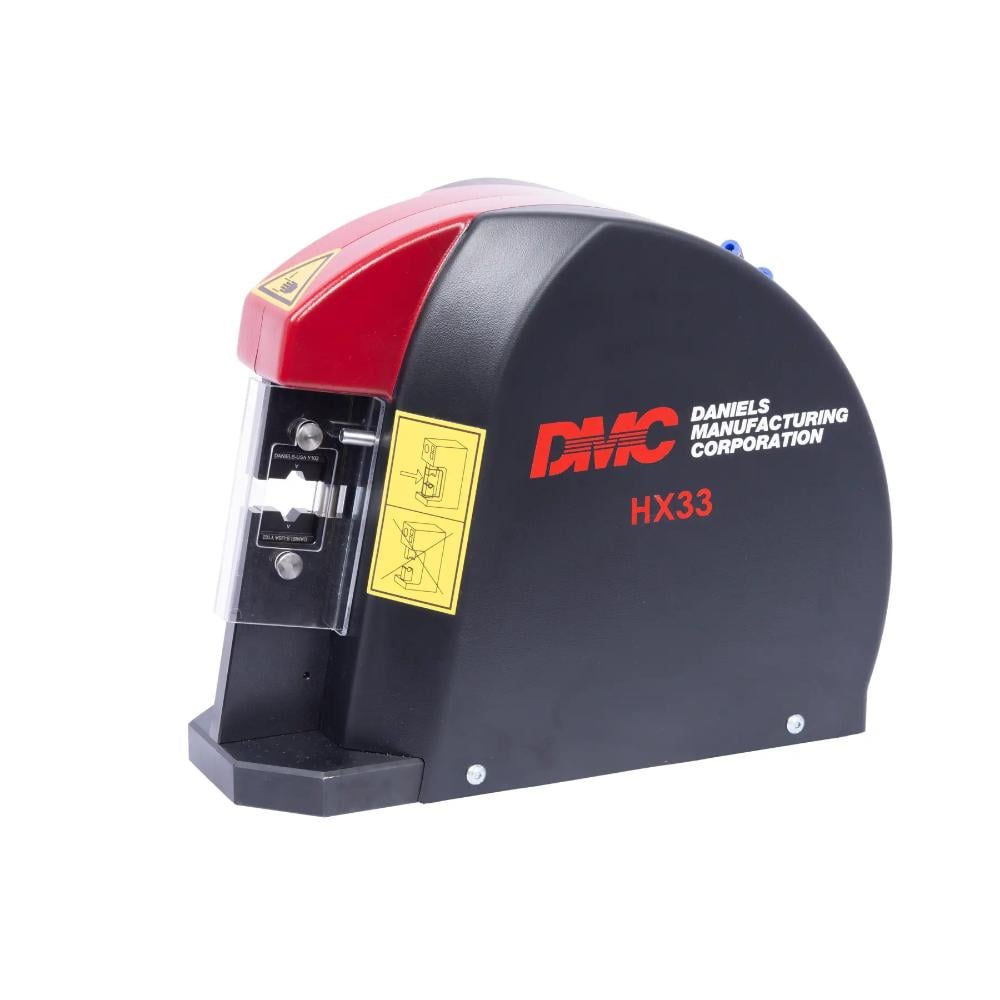

The HX33 benchtop pneumatic crimp tool is an alternative to the handheld HX4 crimp tool. It covers a wire range of 24 – 10 AWG and operates on dry standard shop air between 80-120 psi. The HX33 is compatible with most interchangeable “Y” dies that produce various crimp patterns including hex, nest and indent, B crimps, crescents, and more. This tool is designed to crimp insulated/non-insulated terminals, splices, and coax connectors. The HX33 comes with a foot pedal that is used to activate the jaws of the tool. The HX33 has an Emergency Release Button to open the tools in the event of blocked jaws caused by operation, handling errors, or wrongly placed terminals.
FULL CYCLE CONTROL
The HX33 features a mechanical cycle control design which triggers
release of the dies after full cycle. This ensures consistent crimp quality.
INTERCHANGEABLE CRIMP DIES
The HX33 accommodates most M22520/5-XX military and DMC®
“Y” series crimp dies. This affords utilization of existing dies and
interchangeability with the M22520/5-01 (DMC HX4) hand tool.
HANDS-FREE OPERATION
The foot pedal activation allows the user to have both hands free to
hold the items to be crimped.
SAFETY FEATURES
The HX33 is equipped with a transparent safety guard and an
emergency release button to open the crimping jaws in the event
of blocked jaws caused by operation, handling errors, or wrongly

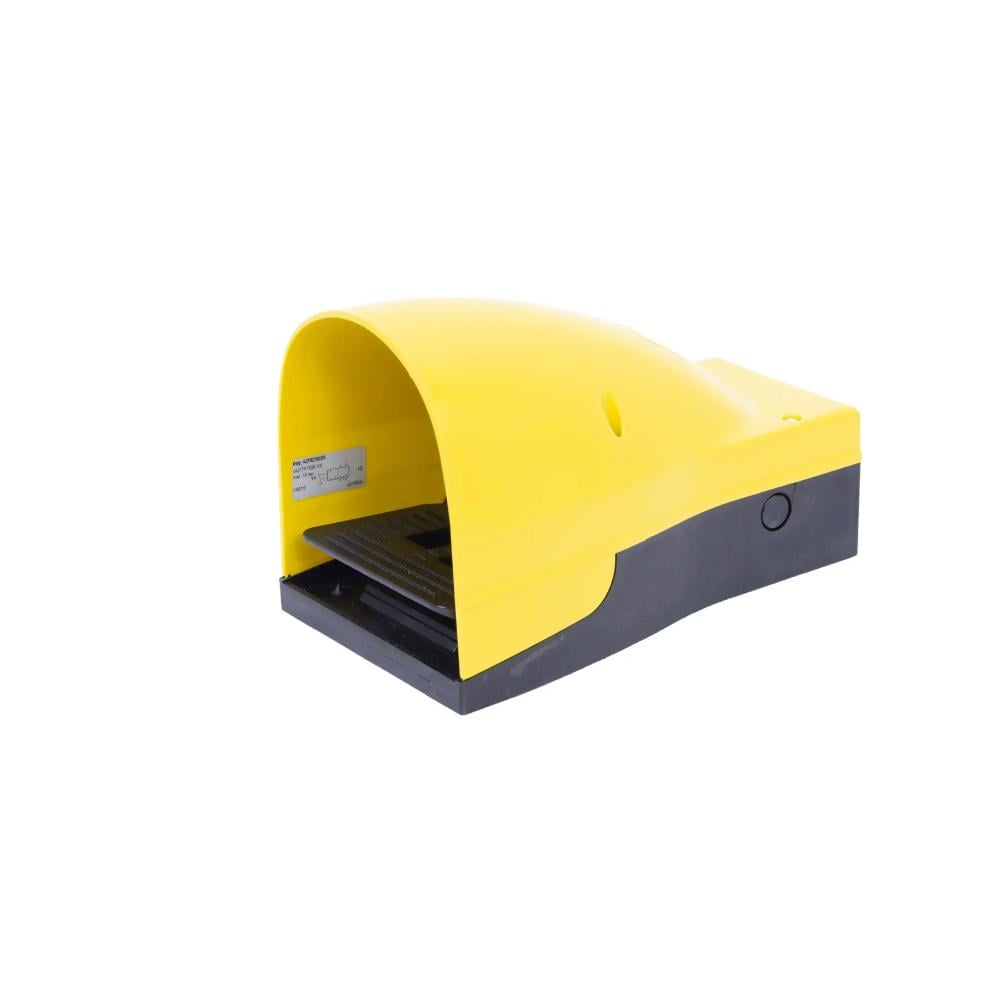

placed terminals. The HX33 foot valve assembly is constructed with a
protective shroud to prevent accidental actuation.
FEATURES:
- Foot Pedal Activation
- Full Cycle Control
- CE Marked
- In-Line Die Closure
- Accepts Most “Y” Dies
- Safety Guard
- Cycle Time ~ 3 seconds
SPECIFICATIONS:
- Dimensions: 11.8”L x 4.9”W x 10.2”H
- Weight With Foot Pedal: 32lbs
- Crimp Force: @90PSI / 4000lb
Dies in various crimp patterns (confined crescent,
half crescent, hex, circle, F-crimp indent) are
available for AS39029 shielded contacts, AS39012
coaxial connectors, AS7928 terminals and splices,
and other commercial and military terminating
components.
| Weight | .1 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
| Brand | Daniels Mfg |
