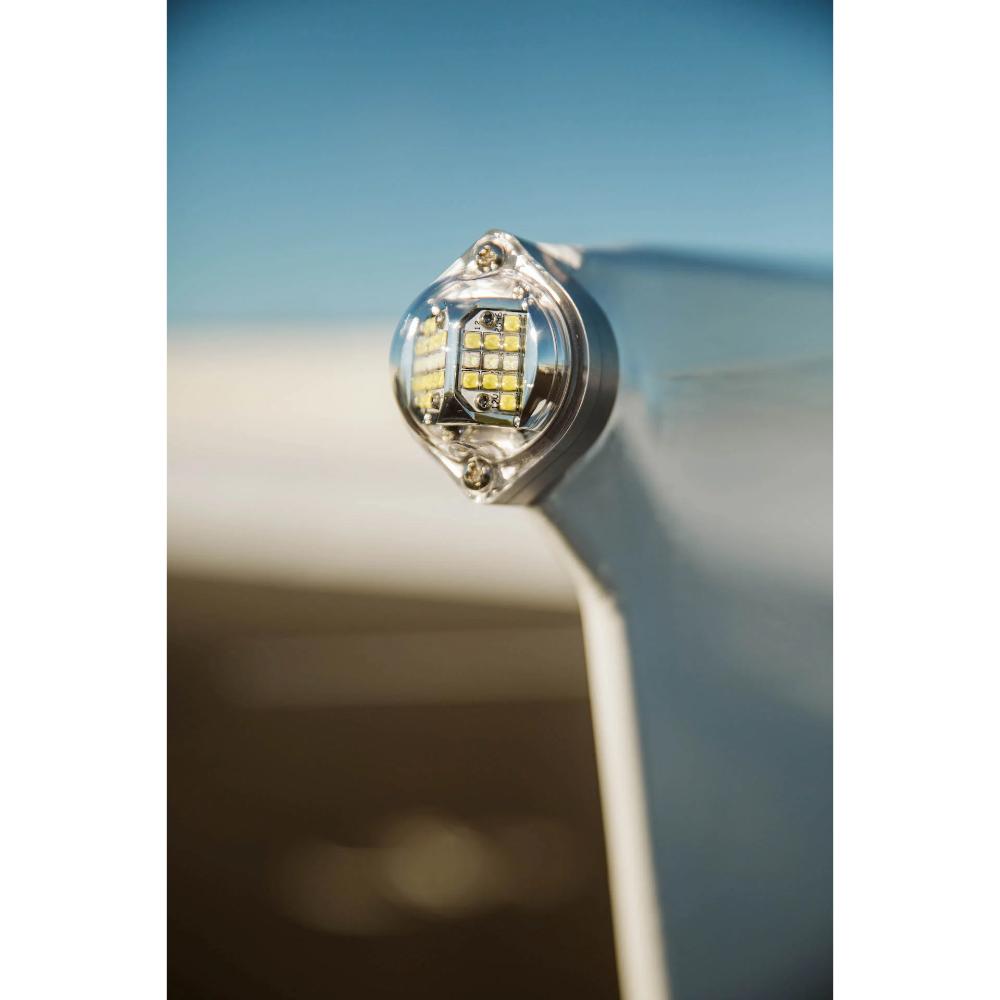

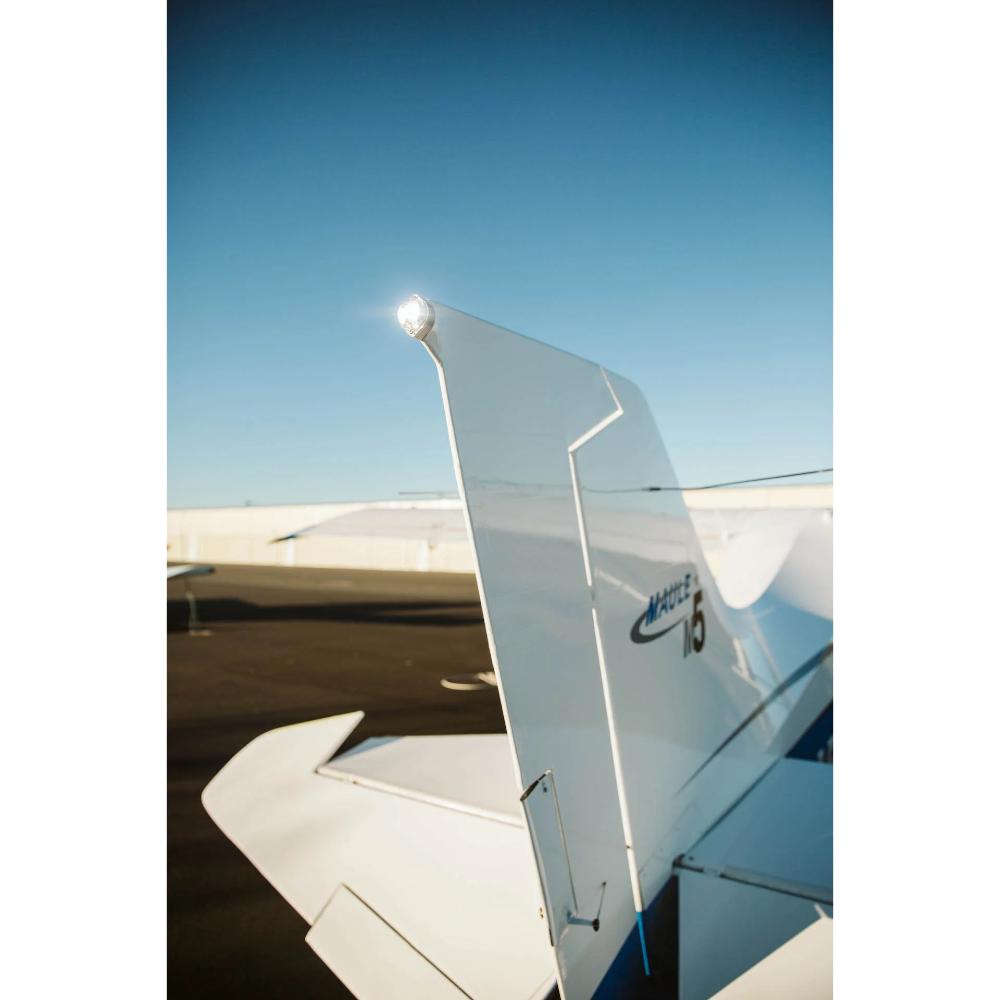

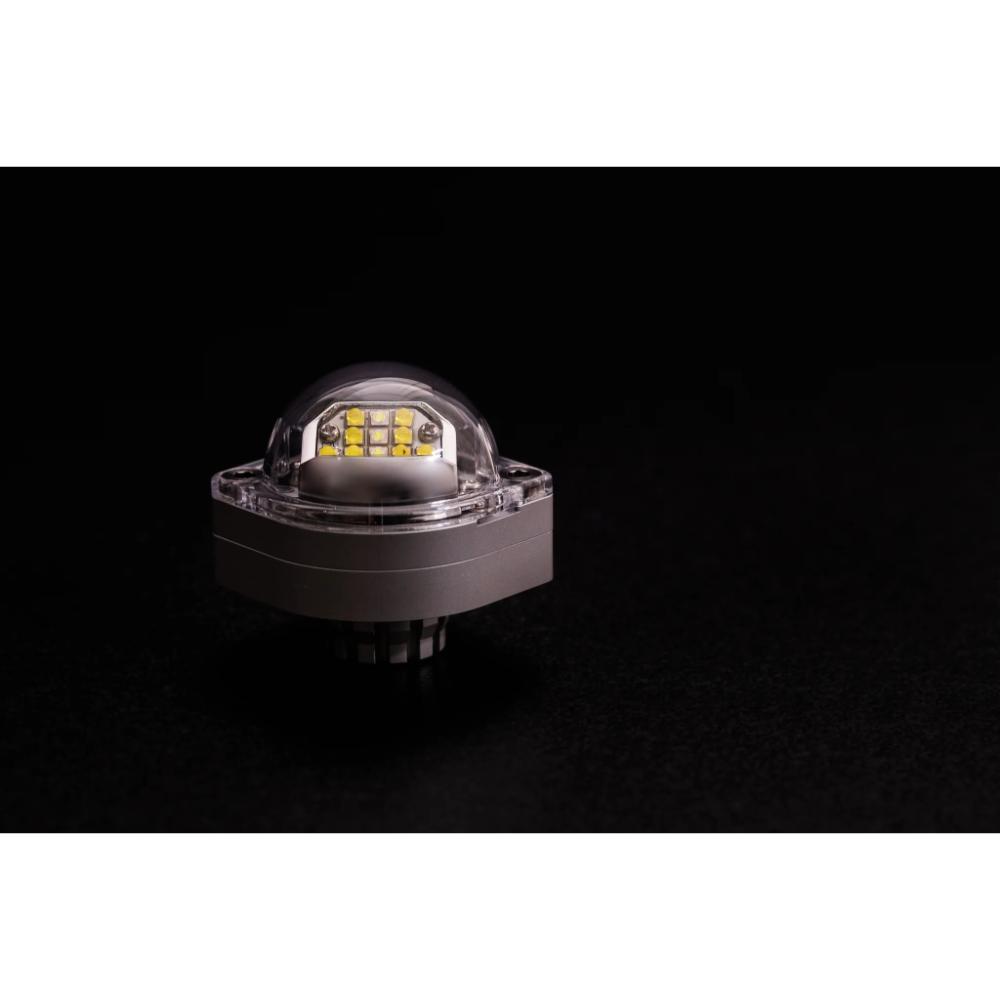

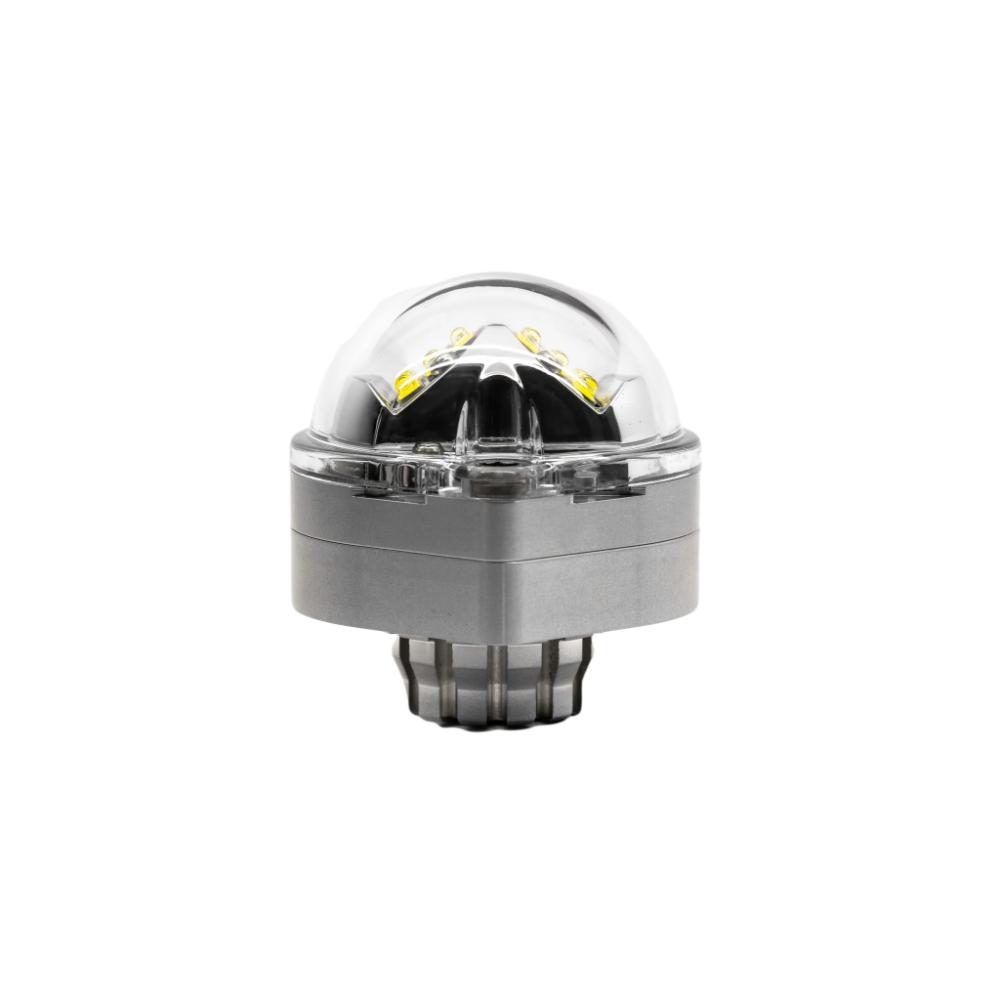

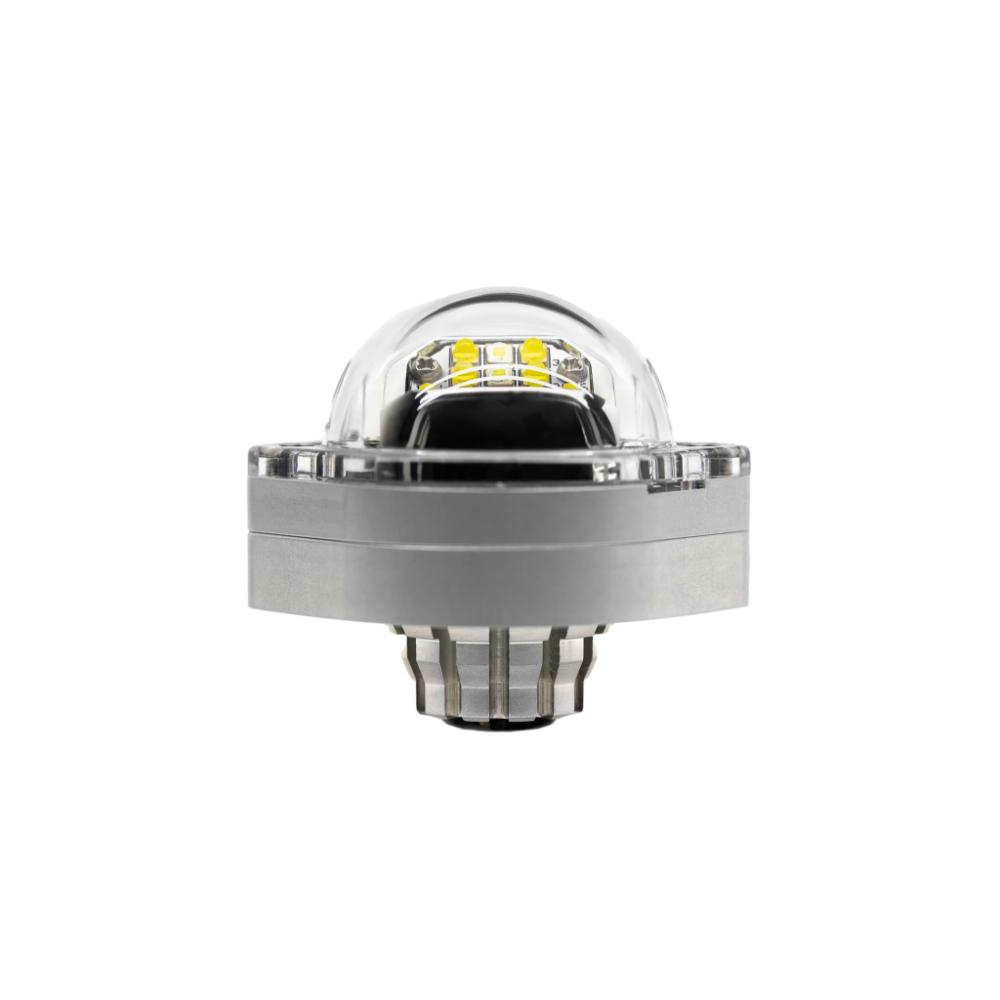

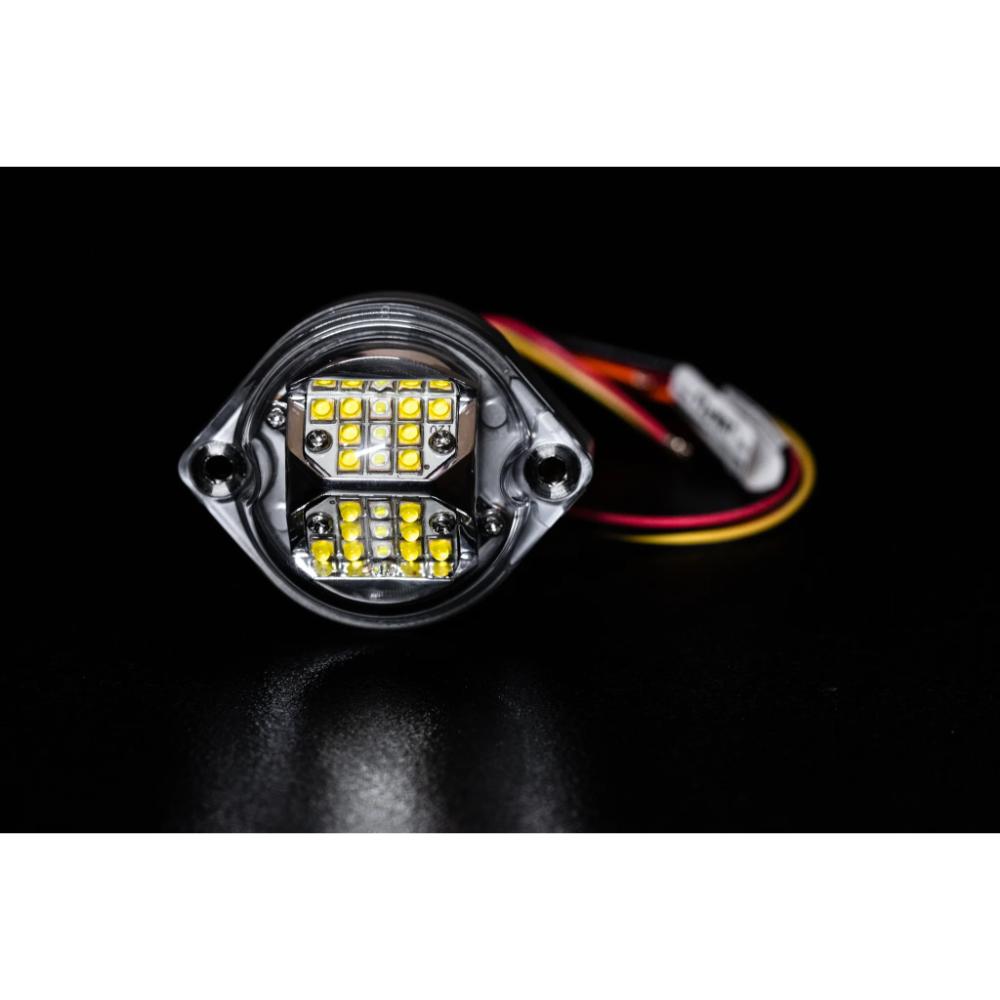

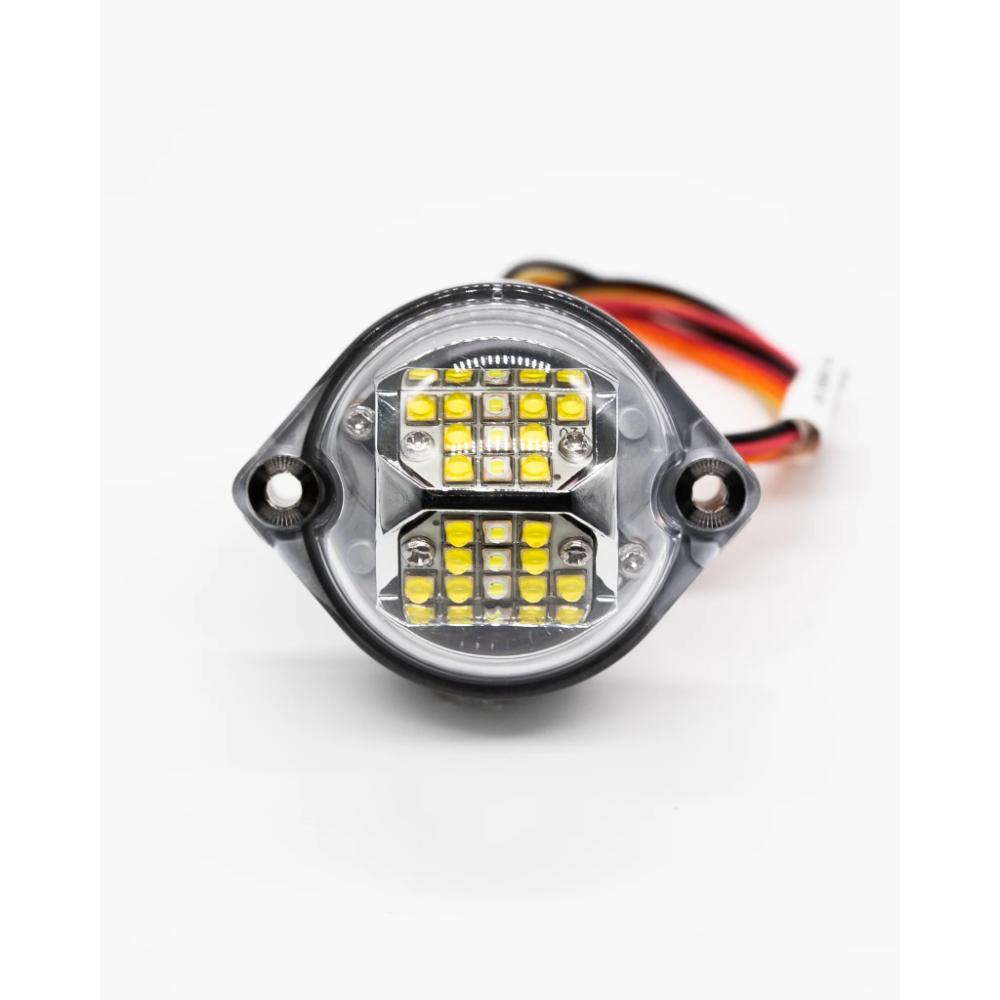

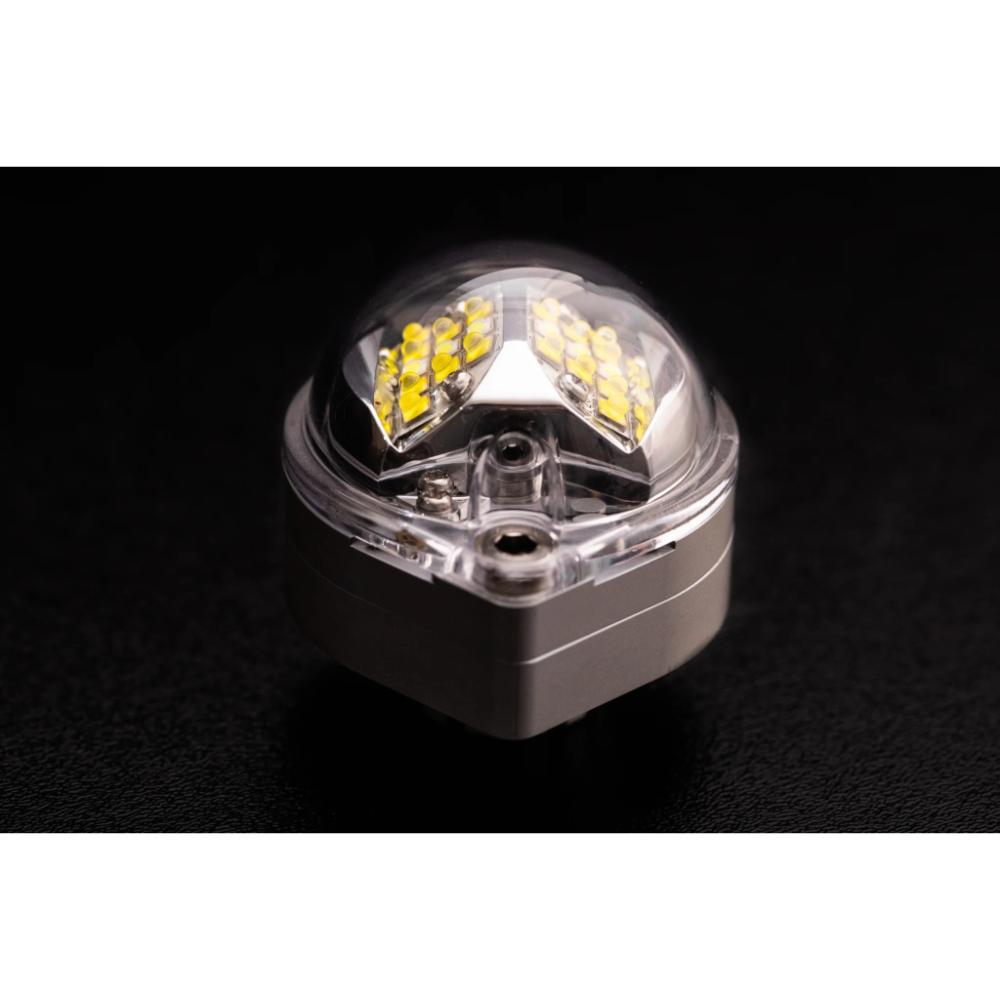

ORION™ 550 SERIES POSITION / ANTI-COLLISION TAIL LIGHTS

Whelen Aerospace Technologies (WAT) provides the highest performance lighting system for the Orion 550 Series products incorporating both the WHITE flashing Anti-Collision light, and the Tail Position light functions. State of the art LED circuitry is built in to eliminate the need for separate flasher boxes for operation. The footprint, and mounting, are identical to legacy Whelen products for ease of installation and retrofit. FAA/TSO.

TECH SPECS

• Weight:             0.20 lbs. (91gm)
• Dimensions:     L x 1.87“(47mm) x W 1.75″ (44mm) x H 2.17″ (55mm)
• Current Draw:  14VDC: Position Light 0.20 Amps / Anti-Collision Light 0.72 Amps Avg.
• Lens:                  Clear polycarbonate hardcoated

DOCUMENTS

• Install Guide: 14D71 12V
• Orion™ 550 Marketing Slick

CROSS REFERENCE

*NOTE* – to replace legacy position light A555AV14 with the OR5501V, an additional wire to supply 12/14 volts DC will be required to support operation of the anti-collision light function of the OR5501V.
