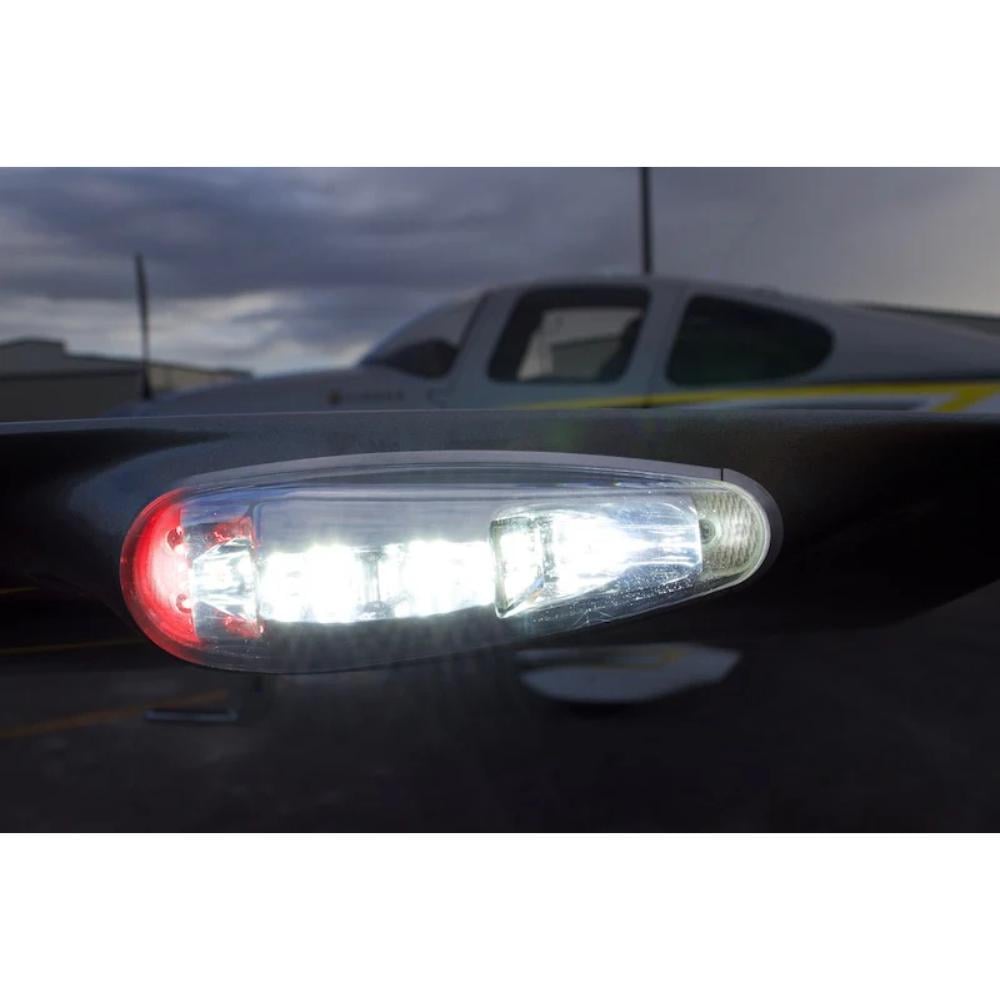

ORION 600 SERIES FORWARD & TAIL POSITION/ANTI-COLLISION WINGTIP LIGHT
$825.00
TECH SPECS
- Drawing # 71733
- Weight 0.5 lbs.
- Dimensions H x W x L 2.04 (52mm) x 1.78 (45mm) x 5.65 (144mm)
- Current Draw 14V / 28V 0.48 / 0.17 Amps Position 1.0 / 0.5 Amps Avg. ACL
- Position Led Colors Aviation Red, Aviation Green, Aviation White
- Anti-Collision LED color Aviation White
- Lenses Clear Polycarbonate Hard-coated, Field Replaceable
| ORION™ 600 MODEL NUMBER | ORION™ 600 PART NUMBER | DESCRIPTION | APPROVALS |
| OR6001G | 01-0771733-01 |
Green
Forward Position & White Tail Position Light / Anti-Collision Light Wingtip Assembly, 14 VDC
|
TSO/ETSO-C96a Class II / TSO/ETSO-C30c Type II & III |
| OR6001R | 01-0771733-02 |
Red
Forward Position & White Tail Position Light / Anti-Collision Light Wingtip Assembly, 14 VDC
|
TSO/ETSO-C96a Class II / TSO/ETSO-C30c Type I & III |
| OR6002G | 01-0771733-11 |
Green
Forward Position & White Tail Position Light / Anti-Collision Light Wingtip Assembly, 28 VDC
|
TSO/ETSO-C96a Class II / TSO/ETSO-C30c Type II & III. |
| OR6002R | 01-0771733-12 |
Red
Forward Position & White Tail Position Light / Anti-Collision Light Wingtip Assembly, 28 VDC
|
TSO/ETSO-C96a Class II / TSO/ETSO-C30c Type I & III |
DOCUMENTS
CROSS REFERENCE
| Legacy Product Part Number | Legacy Product Model Number | Orion™ 600 Part Number | Orion™ 600 Model Number |
| 01-0790006-03 | A600PR28 | 01-0771733-12 | OR6002R |
| 01-07900006-01 | A600PG28 | 01-0771733-11 | OR6002G |
| 01-0790006-02 | A600PR14 | 01-0771733-02 | OR6001R |
| 01-0790006-00 | A600PG14 | 01-0771733-01 | OR6001G |
| 01-0790340-03 | 9034003 | 01-0771733-11 | OR6002G |
| 01-0790340-04 | 9034004 | 01-0771733-12 | OR6002R |
| 01-0790340-01 | 9034001 | 01-0771733-01 | OR6001G |
| 01-0790340-02 | 9034002 | 01-0771733-02 | OR6001R |
WARNING: These products may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
| Weight | .1 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
| Brand |
Whelen |
| Model |
OR6001G Green Forward Position & White Tail Position Light / Anti-Collision Light Wingtip Assembly, 14 VDC ,OR6001R Red Forward Position & White Tail Position Light / Anti-Collision Light Wingtip Assembly, 14 VDC ,OR6002G Green Forward Position & White Tail Position Light / Anti-Collision Light Wingtip Assembly, 28 VDC ,OR6002R Red Forward Position & White Tail Position Light / Anti-Collision Light Wingtip Assembly, 28 VDC |
