ORION 650 SERIES FORWARD POSITION / ANTI-COLLISION WINGTIP LIGHTS
$667.00

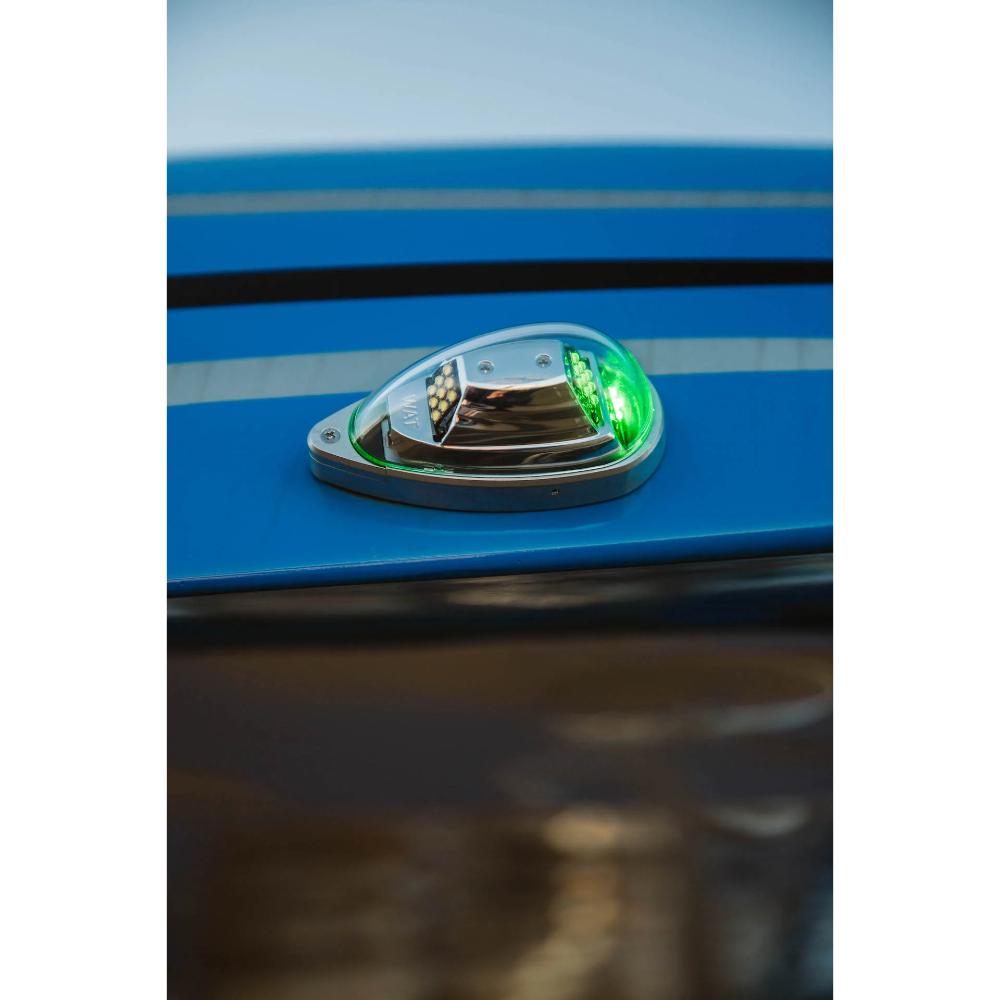

The Orion 650 series products feature Forward Position Lights in either RED or GREEN, accompanied by a WHITE flashing Anti-Collision Light function. These products are equipped with cutting-edge LED circuitry, eliminating the necessity for separate flasher boxes. The footprint and mounting specifications are identical to legacy Whelen products, ensuring effortless installation and retrofitting. They have obtained full FAA/TSO & STC approval, guaranteeing compliance with aviation standards.
TECH SPECS
- Drawing 90725
- Weight 0.26 lbs
- Current Draw 14V / 28V 0.30 / 0.15 Amps Position 0.70 / 0.35 Amps Avg. ACL
- Lenses Clear Hardcoated Polycarbonate
| Model | Part # | Description | Approvals | |
| OR6501G | 01-0790725-01 |
Green
Position Light / Anti-Collision Light Wingtip Assembly, 14 VDC
|
FAA TSO-C96a Class III / TSO-C30c Type II | |
| OR6501R | 01-0790725-02 |
Red
Position Light / Anti-Collision Light Wingtip Assembly, 14 VDC
|
FAA TSO-C96a Class III / TSO-C30c Type I | |
| OR6502G | 01-0790725-11 |
Green
Position Light / Anti-Collision Light Wingtip Assembly, 28 VDC
|
FAA TSO-C96a Class III / TSO-C30c Type II | |
| OR6502R | 01-0790725-12 |
Red
Position Light / Anti-Collision Light Wingtip Assembly, 28 VDC
|
FAA TSO-C96a Class III / TSO-C30c Type I |
DOCUMENTS
- STC – OR650 – STC SA800EA
- EASA STC – 10055068 Fixed Wing
- EASA STC – 10056206 Rotorcraft
- Brazilian STC – Formulario F 400 01G 0806731
- Install Guide: 14719 – OR650 – 28V
- Install Guide: 14718 – OR650- 14V
- Installation & Service Manual – Document #05131 Rev. E
CROSS REFERENCE
| Legacy Product Part Number | Legacy Product Model Number | Orion™ 650 Part Number | Orion™ 650 Model Number |
| 01-0770054-01 | A650PG28 | 01-0790725-11 | OR6502G |
| 01-0770054-03 | A650PR28 | 01-0790725-12 | OR6502R |
| 01-0770054-00 | A650PG14 | 01-0790725-01 | OR6501G |
| 01-0770054-02 | A650PR14 | 01-0790725-02 | OR6501R |
| 01-0771110-03 | 7111003 | 01-0790725-12 | OR6502R |
| 01-0771110-04 | 7111004 | 01-0790725-11 | OR6502G |
| 01-0771110-01 | 7111001 | 01-0790725-02 | OR6501R |
| 01-0771110-02 | 7111002 | 01-0790725-01 | OR6501G |
| 01-0770001-42 | W1285PG28 | 01-0790725-11 | OR6502G |
| 01-0770001-52 | W1285PR28 | 01-0790725-12 | OR6502R |
| 01-0770001-41 | W128514 | 01-0790725-01 | OR6501G |
| 01-0770001-51 | W128514 | 01-0790725-02 | OR6501R |
| 01-0771105-03 | 7110503 | 01-0790725-12 | OR6502R |
| 01-0771105-04 | 7110504 | 01-0790725-11 | OR6502G |
| 01-0771105-01 | 7110501 | 01-0790725-02 | OR6501R |
| 01-0771105-02 | 7110502 | 01-0790725-01 | OR6501R |
NOTE: Any highlighted RED ITEMS will require extra wiring for anti-collision function of Orion™ Series.
WARNING: These products may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
| Weight | .1 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
| Brand |
Whelen |
| Model |
OR6501G Green Position Light / Anti-Collision Light Wingtip Assembly, 14 VDC ,OR6501R Red Position Light / Anti-Collision Light Wingtip Assembly, 14 VDC ,OR6502G Green Position Light / Anti-Collision Light Wingtip Assembly, 28 VDC ,OR6502R Red Position Light / Anti-Collision Light Wingtip Assembly, 28 VDC |
