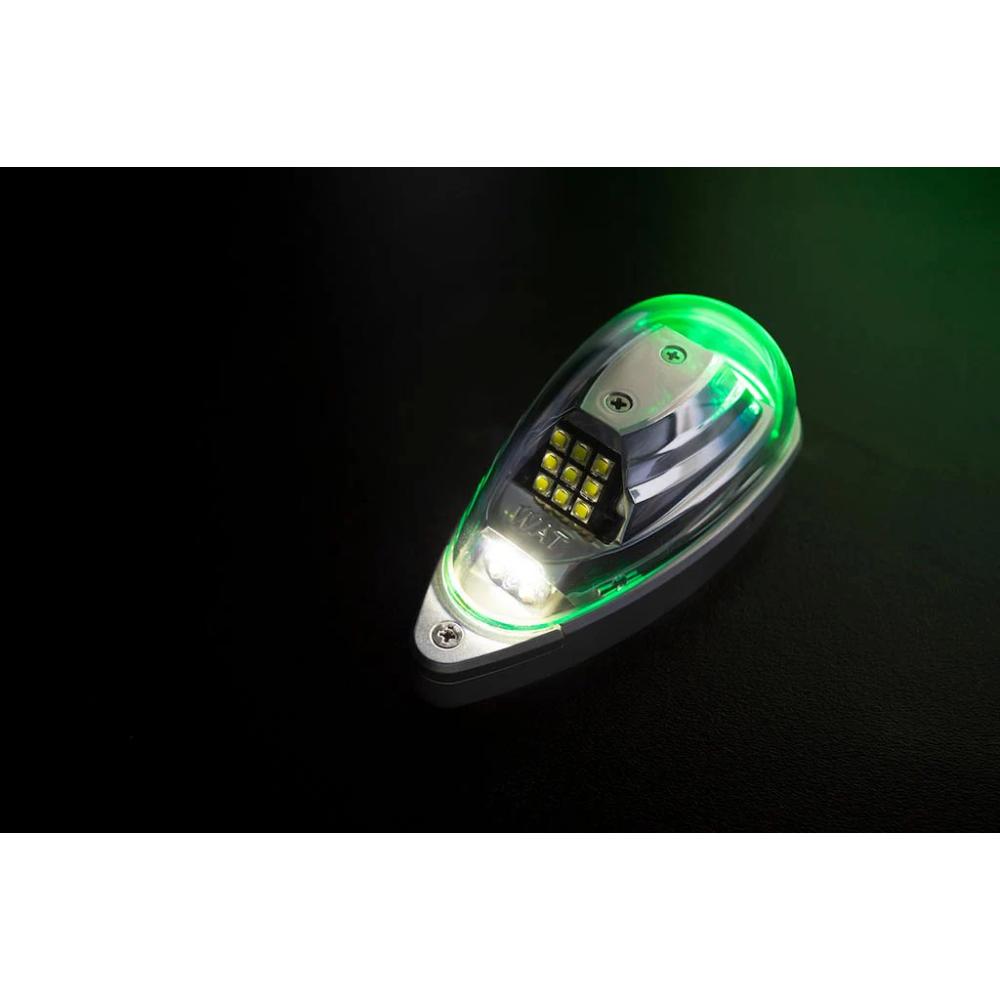

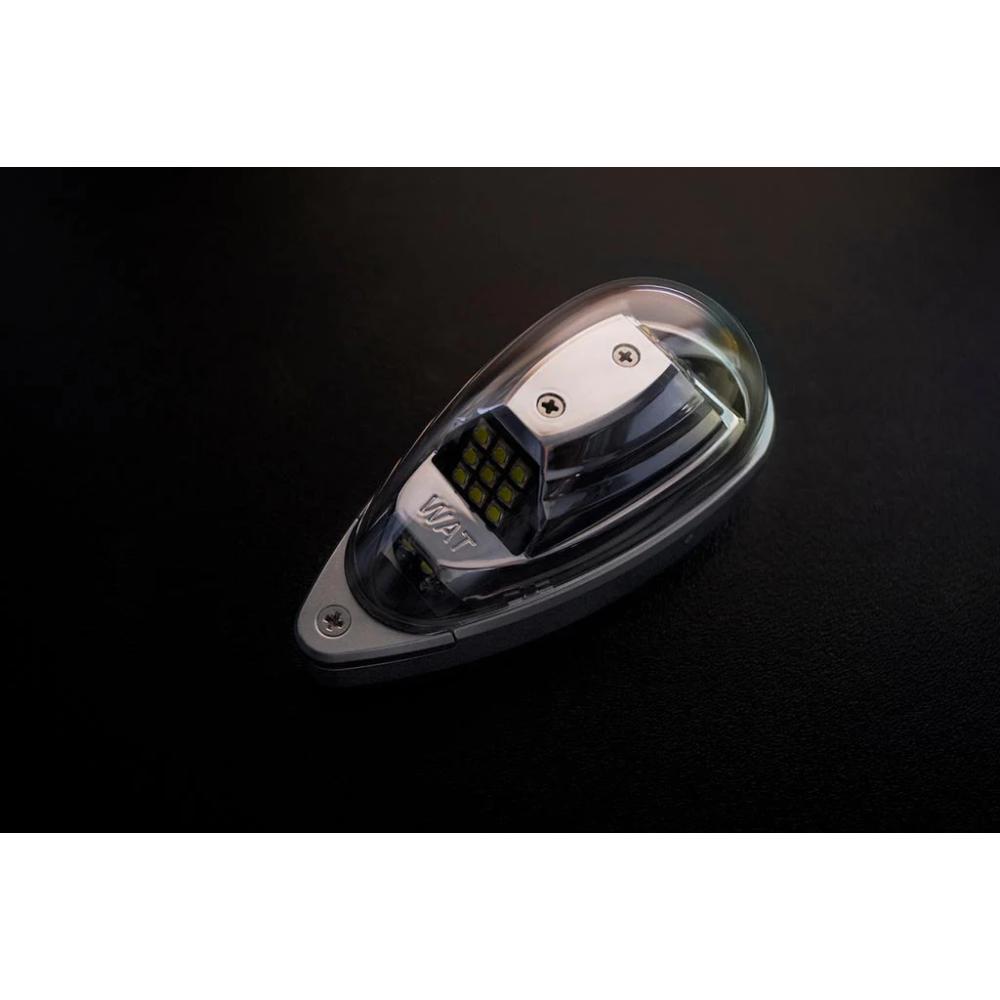

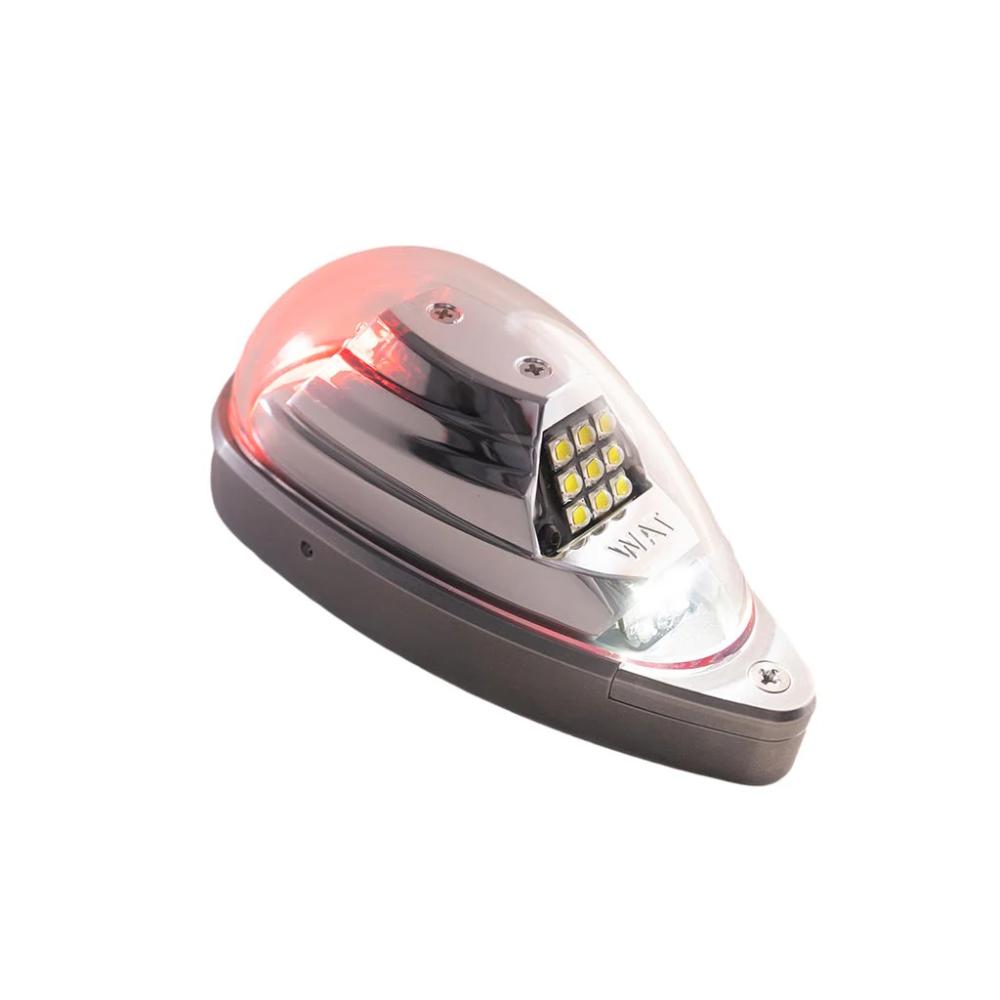

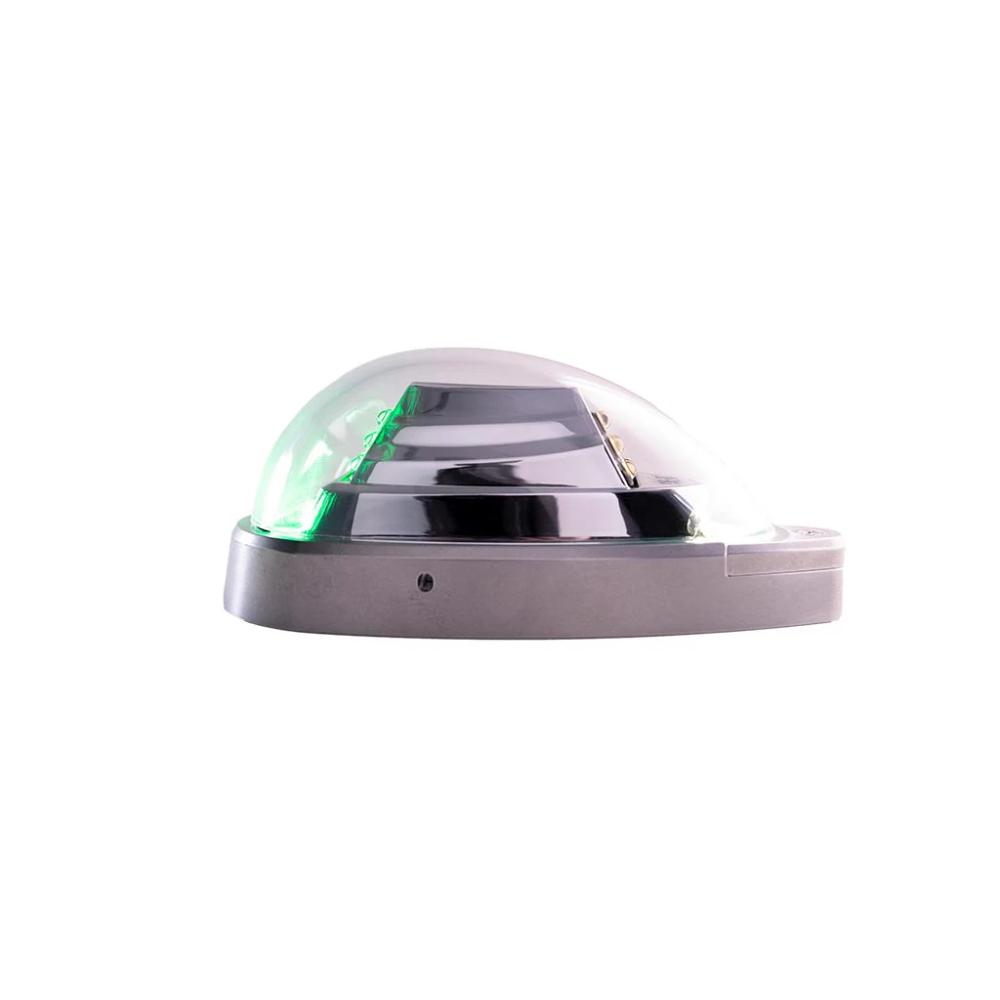

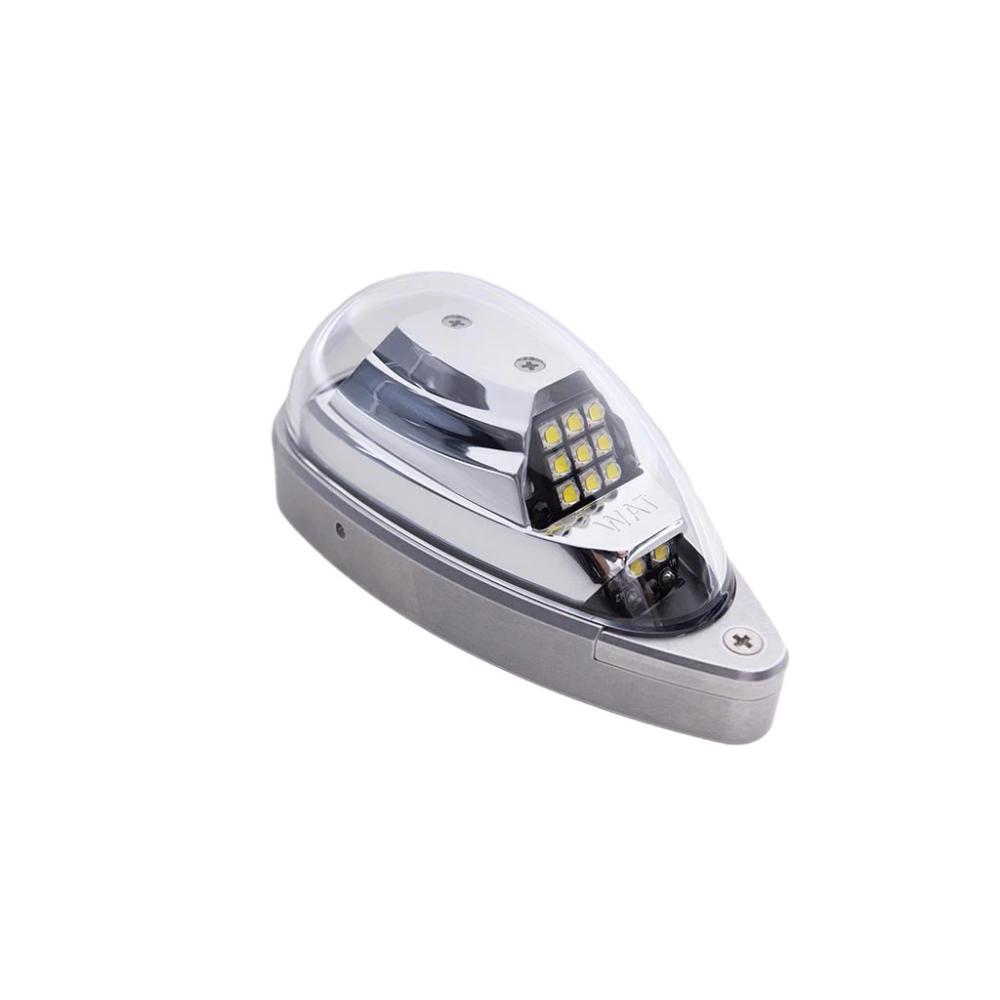

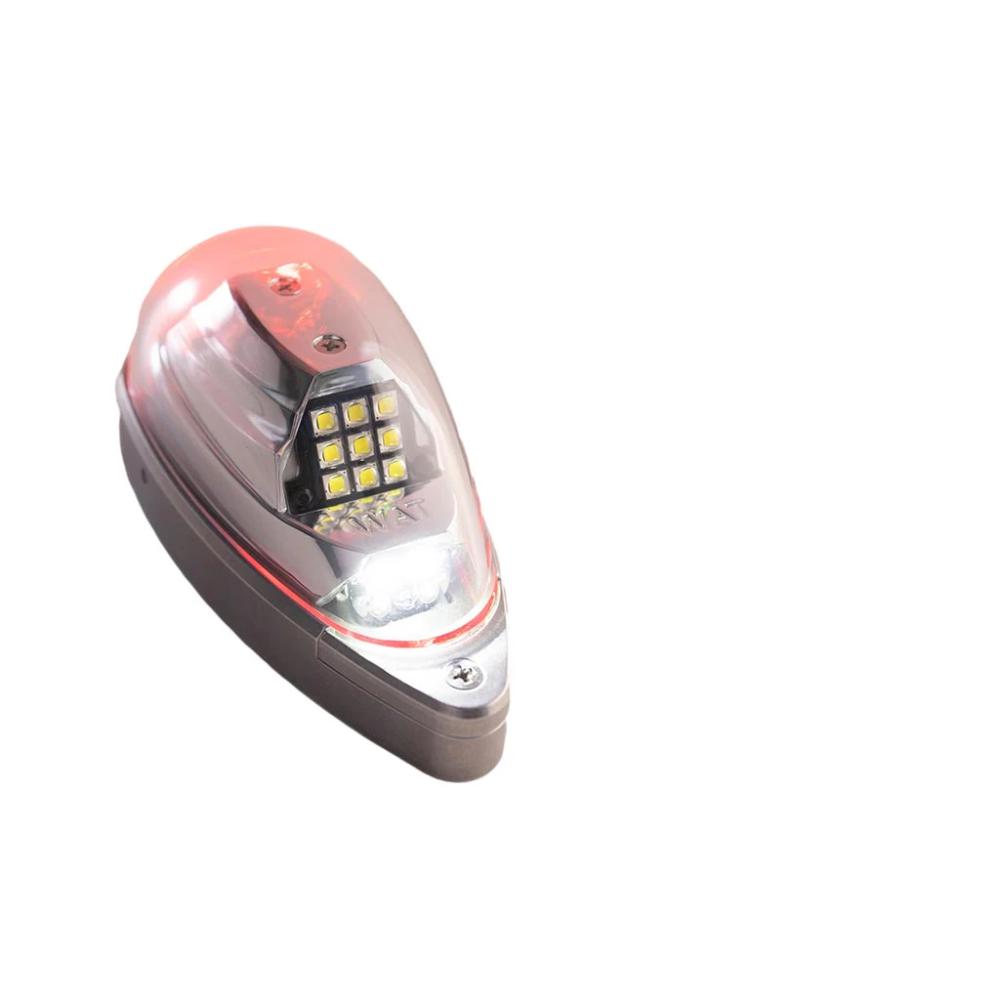

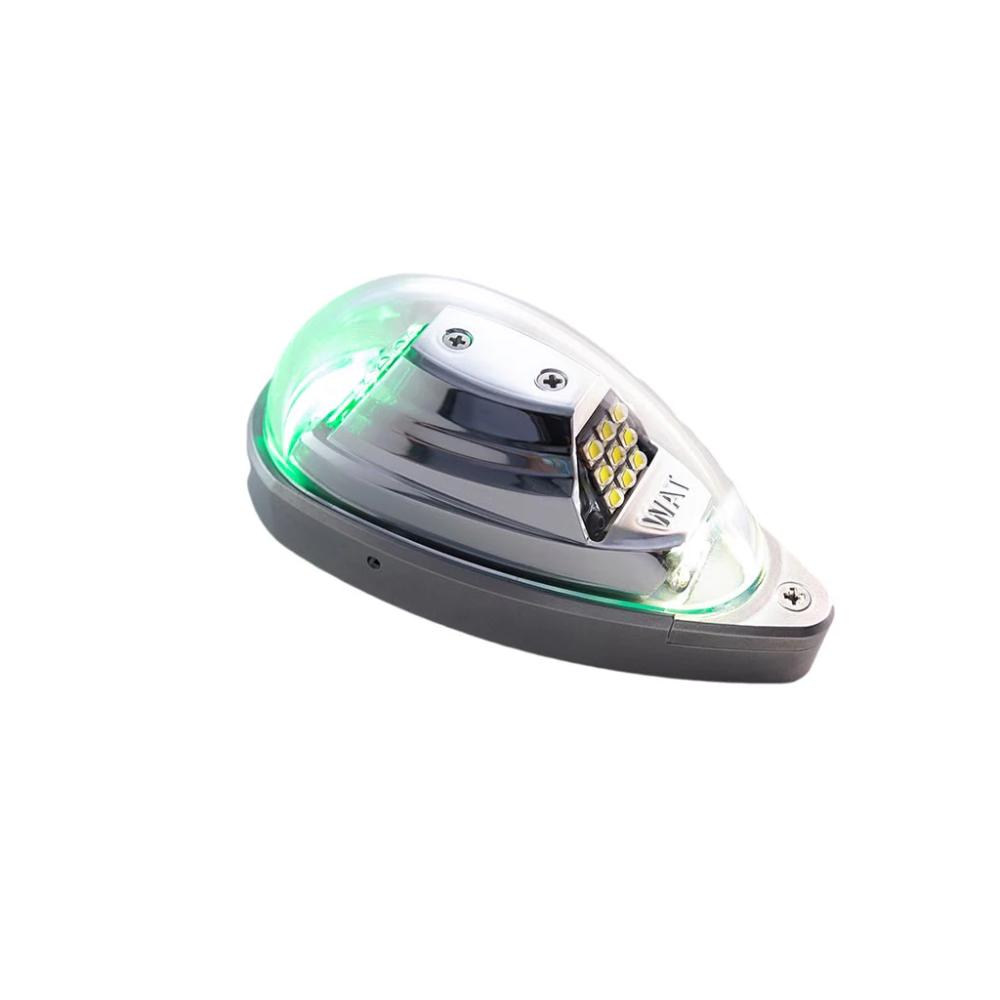

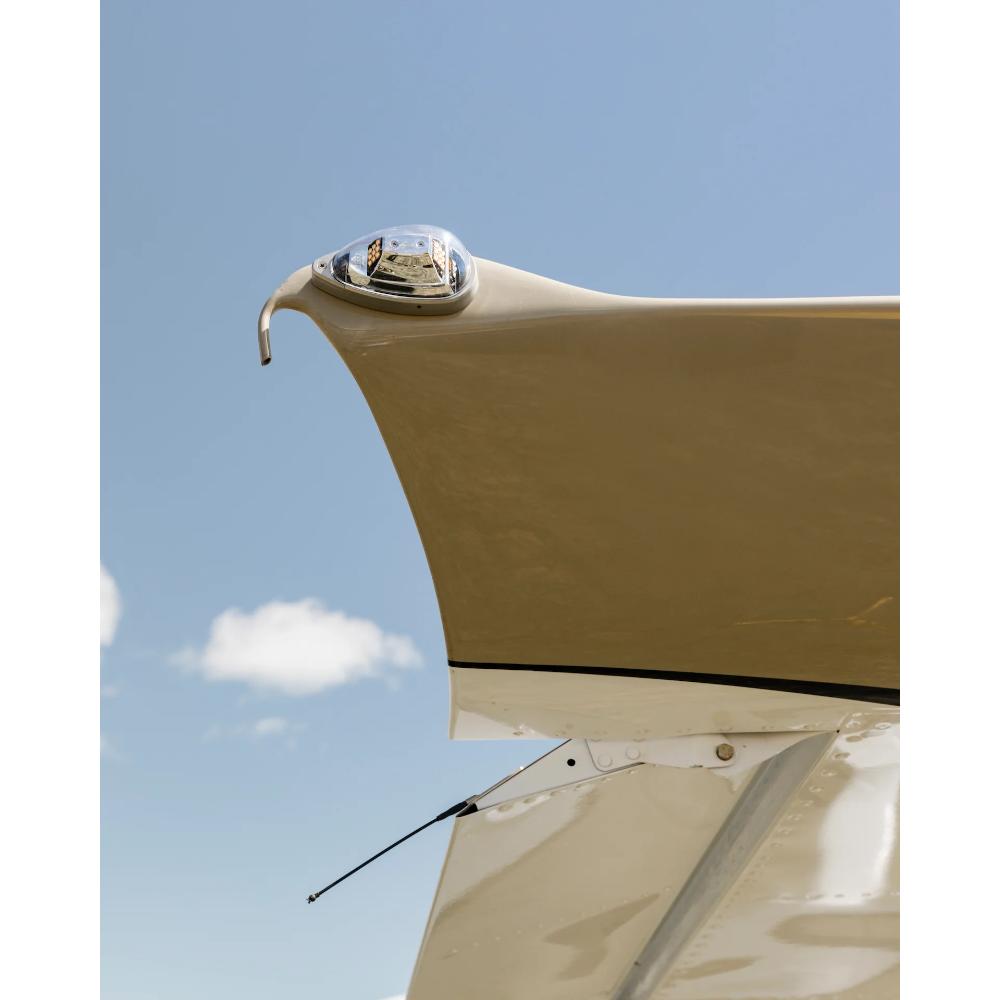

ORION 660 SERIES FORWARD & TAIL POSITION/ANTI-COLLISION WINGTIP LIGHTS
The Orion™ 660 series products integrate a RED or GREEN Forward Position Light, a WHITE flashing Anti-Collision light, and a Tail Position Light function. The built-in tail position light complies with all FAA requirements, eliminating the necessity for a separate tail-mounted position light. These products feature advanced LED circuitry, negating the need for additional flasher boxes. The footprint and mounting specifications are identical to legacy Whelen products, ensuring hassle-free installation and retrofitting. They have received full FAA/TSO approval, ensuring adherence to aviation standards.
TECH SPECS
- Weight 0.30 lbs
- Current Draw:
14VDC: Position Light 0.40 Amps/Anti-Collision Light 0.39 Amps Avg. 28VDC: Position Light 0.20 Amps/Anti-Collision Light 0.20 Amps Avg. - Dimensions:
L x 3.95″ (100mm) W 1.79″ (45mm) H 1.68″ (43mm)
| Model | Part # | Description | Approvals |
| OR6601G | 01-0790877-01 |
Green
Forward POS & White Tail POS Light / ACL Wingtip Assembly, 14 VDC
|
TSO-C96a Class III / TSO-C30c Type II & III |
| OR6601R | 01-0790877-02 |
Red
Forward POS & White Tail POS Light / ACL Wingtip Assembly, 14 VDC
|
TSO-C96a Class III / TSO-C30c Type I & III |
| OR6602G | 01-0790877-11 |
Green
Forward POS & White Tail POS Light / ACL Wingtip Assembly, 28 VDC
|
TSO-C96a Class III / TSO-C30c Type II & III |
| OR6602R | 01-0790877-12 |
Red
Forward POS & White Tail POS Light / ACL Wingtip Assembly, 28 VDC
|
TSO-C96a Class III / TSO-C30c Type I & III |
DOCUMENTS
WARNING: These products may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
| Weight | .1 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
| Brand |
Whelen |
| Model |
OR6601G Green Forward POS & White Tail POS Light / ACL Wingtip Assembly, 14 VDC ,OR6601R Red Forward POS & White Tail POS Light / ACL Wingtip Assembly, 14 VDC ,OR6602G Green Forward POS & White Tail POS Light / ACL Wingtip Assembly, 28 VDC ,OR6602R Red Forward POS & White Tail POS Light / ACL Wingtip Assembly, 28 VDC |
