PanaVise Wide Opening Head
Create a custom work holding tool for your specific needs with the PanaVise system of interchangeable Heads, Bases and Base Mounts. All PanaVise Bases include the patented “split ball” which allows a Head to be positioned through three planes (90° Tilt, 360° Turn & 360° Rotation). All 300 series Bases accept all 300 series Heads. A variety of Base Mounts adds dozens of useful options.

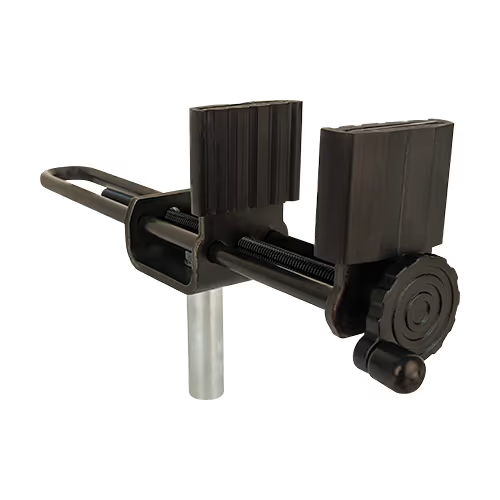

This wide opening head (part# MODEL366) has jaw pads that gently, yet firmly, hold a wide variety of objects including circuit boards, coils, and tuners. The jaws open a generous 6 in.
Features
- Ribbed, neoprene jaw pads provide a sure grip and can hold and insulate PC boards and other larger objects
- Reverse the pads and the wide “V” holds delicate cylindrical objects
- Remove jaw pads from steel jaws when working with high heat
- Black oxide coating reduces glare and promotes eye comfort
- Compatible with all 300 series Bases
Specifications
Weight:
1.6 lbs (0.7 kg)
Height:
5.125 in (130.2 mm)
Head Length:
11 in (279.4 mm)
Jaw Pad Dimensions:
1.875 x 1.5 in (47.6 x 38.1 mm)
Jaw Opening:
6 in (152.4 mm) with pads, 6.25 in (158.8 mm) without pads.
| Weight | .1 lbs |
|---|---|
| Dimensions | 10 × 8 × 6 in |
| Brand | PanaVise Products |
