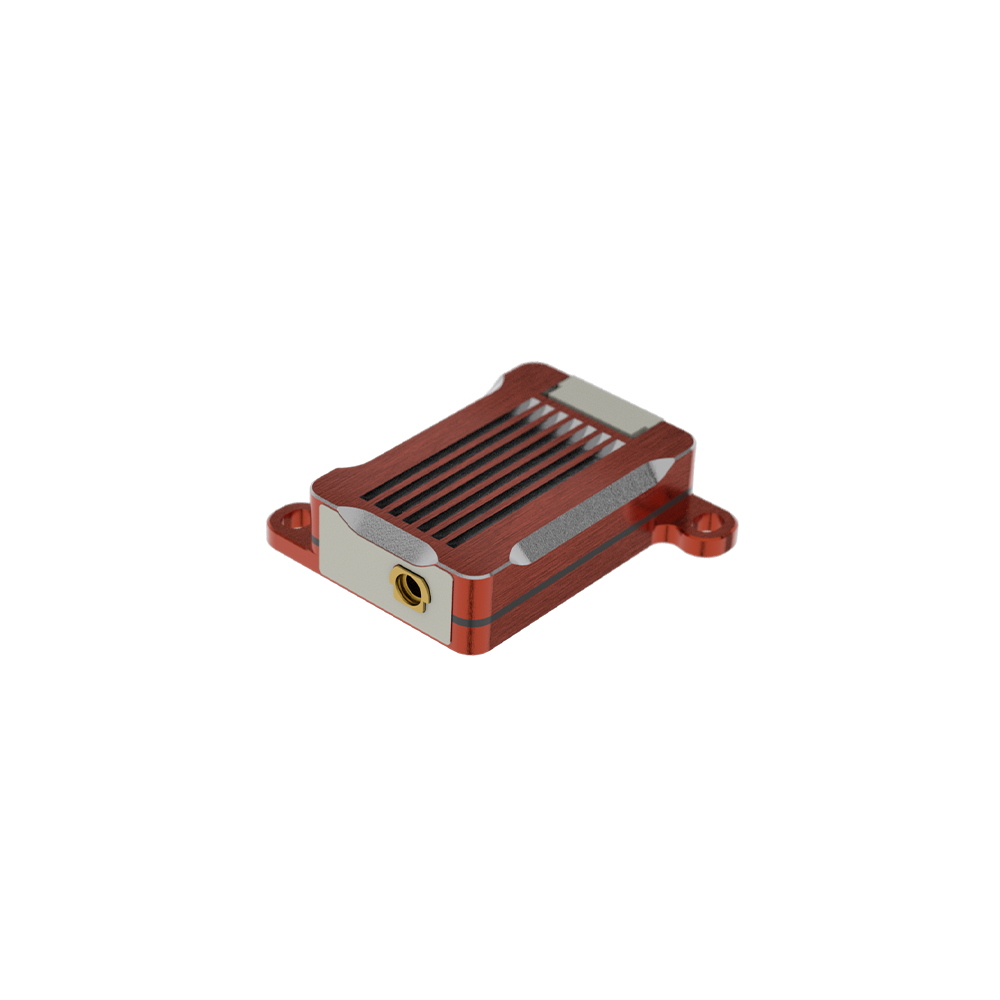

pingRX Pro
$349.00
The pingRX Pro delivers professional-grade ADS-B detection with unmatched reliability and flexibility. Engineered specifically for unmanned aircraft systems (UAS), pingRX Pro ensures precise, real-time situational awareness in any operational environment. Combining aviation-grade technology, dual-band reception, and effortless integration, pingRX Pro sets the new standard for Detect and Avoid (DAA) systems.
Professional Detect and Avoid for Limitless Missions
SKU: UAX-90075-01
The pingRX Pro delivers professional-grade ADS-B detection with unmatched reliability and flexibility. Engineered specifically for unmanned aircraft systems (UAS), pingRX Pro ensures precise, real-time situational awareness in any operational environment. Combining aviation-grade technology, dual-band reception, and effortless integration, pingRX Pro sets the new standard for Detect and Avoid (DAA) systems.
PRIMARY FEATURES

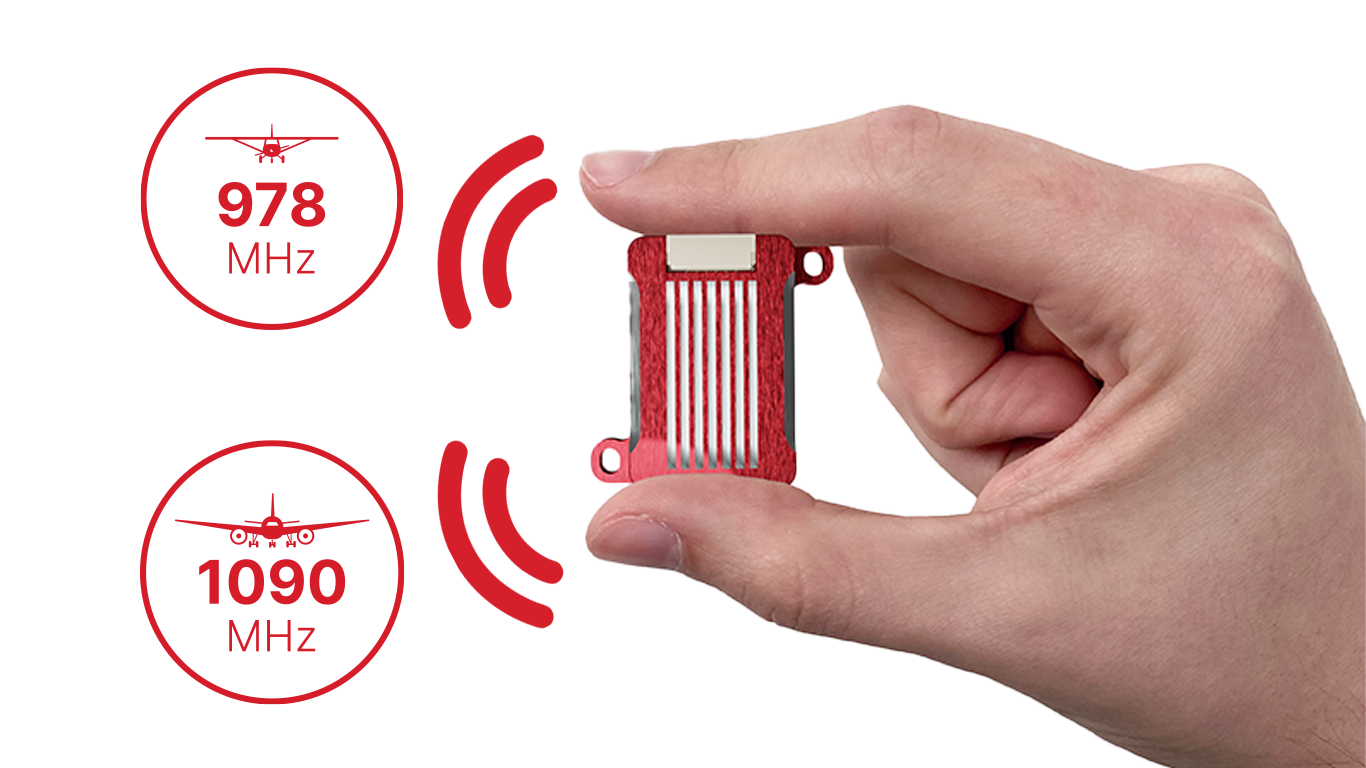

Dual-band Reception
Tracks aircraft seamlessly on both 978MHz and 1090MHz, enhancing safety in crowded airspace.
Extended Detection Range
Provides nearly 100 times greater range than radar, camera, or FMCW solutions, ensuring ample reaction time and safe operations.

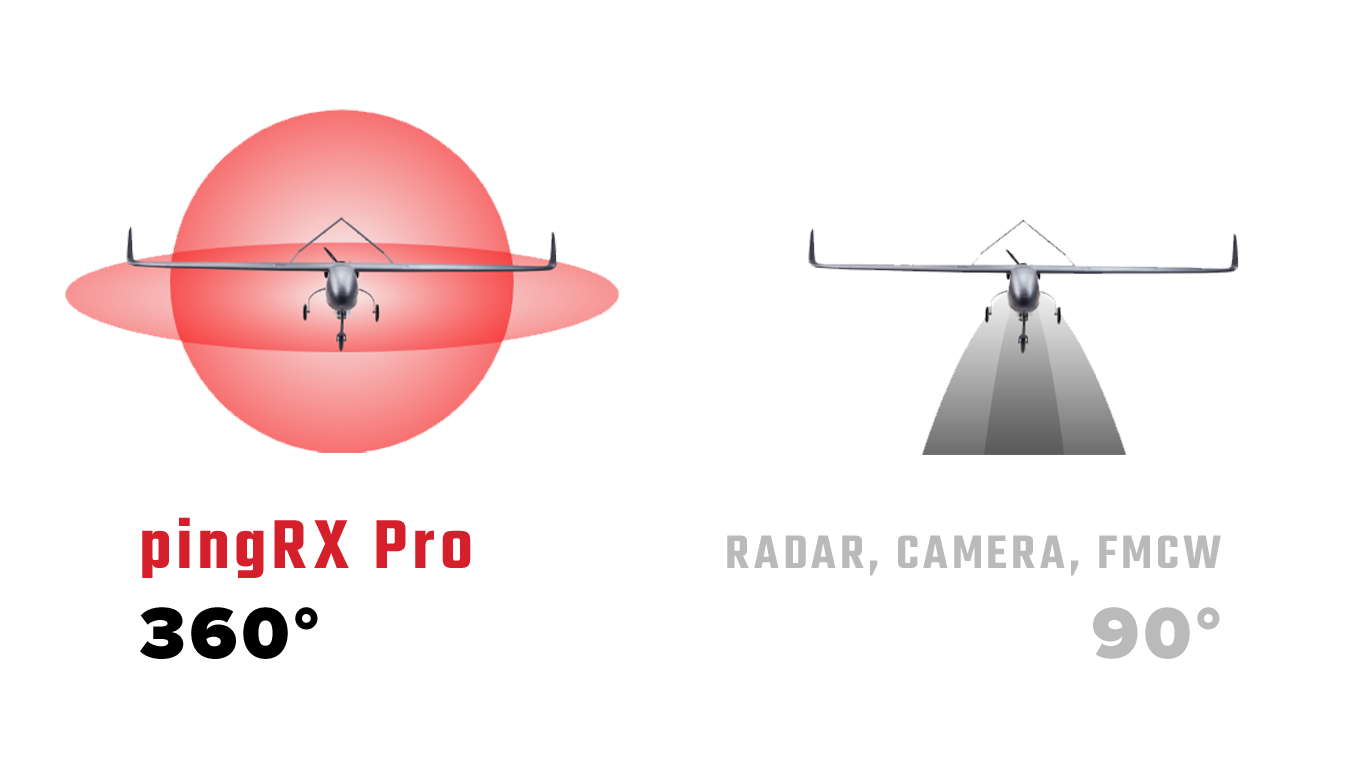

360° Coverage
Delivers continuous, full 360-degree detection and tracking capability for complete situational awareness.

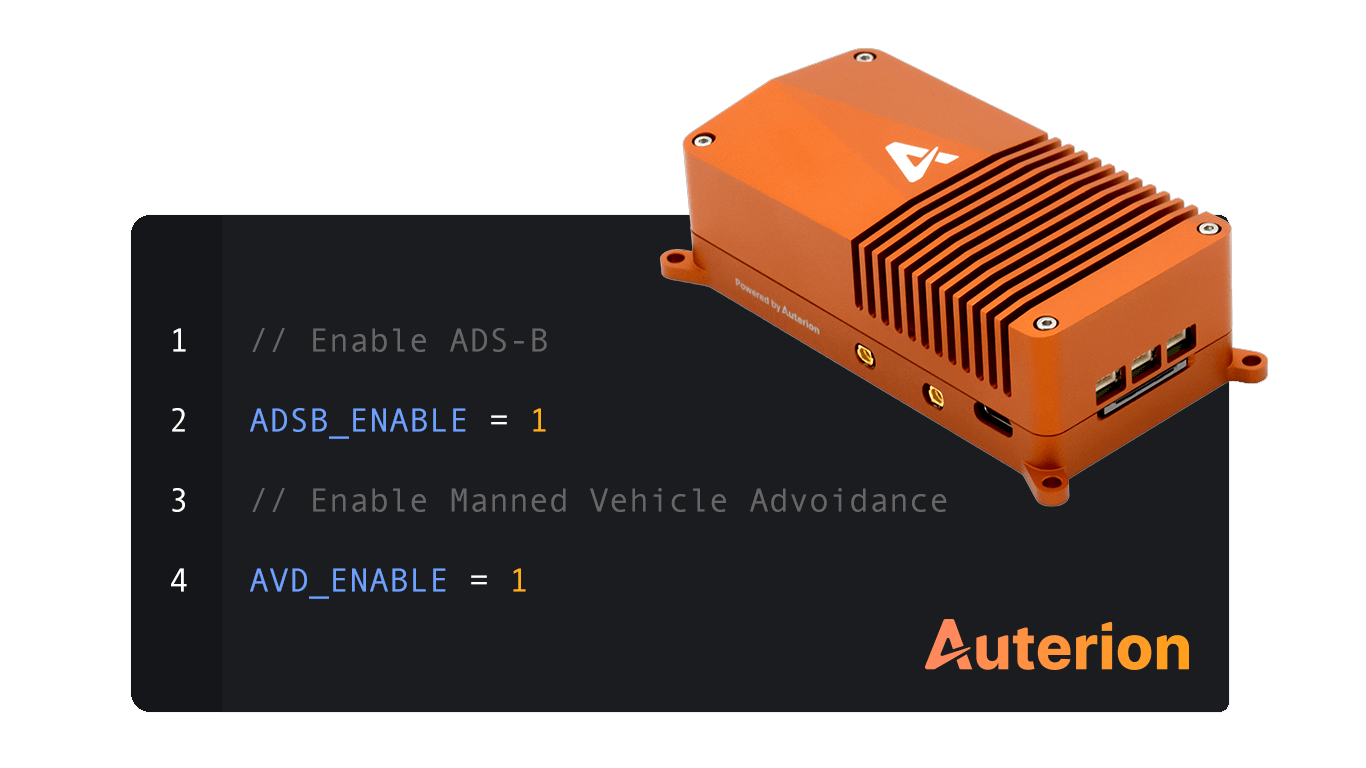

Effortless Autopilot Integration
Compatible with Ardupilot, PixHawk, and Auterion Skynode platforms, ensuring quick and seamless setup.
ADDITIONAL FEATURES
Reliable and Flexible by Design
Aircraft-grade Aluminum Housing
Protects sensitive electronics, ensuring reliable performance in challenging operational environments.
Minimal Power Consumption
Efficient power usage preserves valuable flight range and payload capacity.
Proven Aviation Heritage
Built upon certified aviation-grade technology used in over half a million ADS-B systems globally.
Detachable Remote Antenna
Allows optimal antenna placement for maximum detection performance.
Lightweight & Compact
Weighing only 8 grams with a size of 32x31x9mm, ideal for integration into any professional UAS platform.
Multiple Integration Options
Supports MAVLink and uAvionix Control Protocol (UCP) interfaces for broader compatibility with custom systems.
ADS-B In/Out/Other
| Â | pingRX Pro | ping1090i | ping2020i | ping20Si | ping200X TSO | ping200XR TSO |
|---|---|---|---|---|---|---|
| ADS-B Out (Transmit) | No | 1090MHz | 978MHz | 1090MHz | 1090MHz | 1090MHz |
| ADS-B In (Receive) | 978MHz 1090MHz | 978MHz 1090MHz | 978MHz 1090MHz | No | No | No |
| Transponder Modes | Â | ADS-B Only | ADS-B Only | A, C, S, ES | A, C, S, ES | A, C, S, ES |
| Power Output | Rx Only | 20W | 20W | 20W | 250W | 250W |
| Integrated GPS | No | Yes | Yes | Yes | No | Yes |
| Certification/Approval | No | UK CAP1391 AUS CAO 10.18 | FCC | No | TSO | TSO |
| Applicability | Worldwide | Non US | US, UK | Non US | Worldwide | Worldwide |
| Export Control | EAR99 | ECCN 7A994 | ECCN 7A994 | ECCN 7A994 | ECCN 7A994 | ECCN 7A994 |
| Weight | 8-grams | 26-grams | 26-grams | 26-grams | 50-grams | 50-grams |
FAQs
Knowledge Base
What aircraft types are compatible with pingRX Pro?
pingRX Pro is compatible with all unmanned aircraft systems using Ardupilot, Pixhawk, Auterion Skynode, and custom platforms using MAVLink or UCP.
Does pingRX Pro meet FAA requirements for Detect and Avoid?
Yes, ADS-B receivers, including pingRX Pro, are core components for Beyond Visual Line of Sight (BVLOS) approvals and meet FAA recommendations.
How do I mount the pingRX Pro for optimal performance?
Mount the base unit securely inside or externally on your aircraft using provided screws. Position the external antenna vertically with a clear line of sight to maximize detection.
Can pingRX Pro track multiple aircraft simultaneously?
Yes, it tracks up to 100 aircraft simultaneously, significantly more than radar, camera, or FMCW solutions.
What maintenance does the pingRX Pro require?
Regular inspections of connections, antenna integrity, and ensuring firmware updates are current. Minimal routine maintenance is required.
What if the pingRX Pro is not detecting aircraft?
Verify antenna placement, power connections, ADS-B parameters configuration, and ensure the aircraft you’re detecting is within the set ADS-B List Radius.
How can I verify pingRX Pro is operational before flight?
Perform a wireless data link and Ground Control Station (GCS) range check prior to every flight to ensure proper data transmission and reception.
DOCUMENTATION
pingRX Pro Manuals & Guides
